20 awg Silicone Electrical Wire Cable 7 Colors (23ft Each) 20 Gauge Hookup Wires Electronics kit Stranded Tinned Copper Wire Flexible and Soft for DIY

Brand: Haerkn

Color: Black、red、yellow、green、blue、white、brown

Features:

• Material : Silicone rubber+0.5mm² High-purity oxygen-free Tinned Copper wire

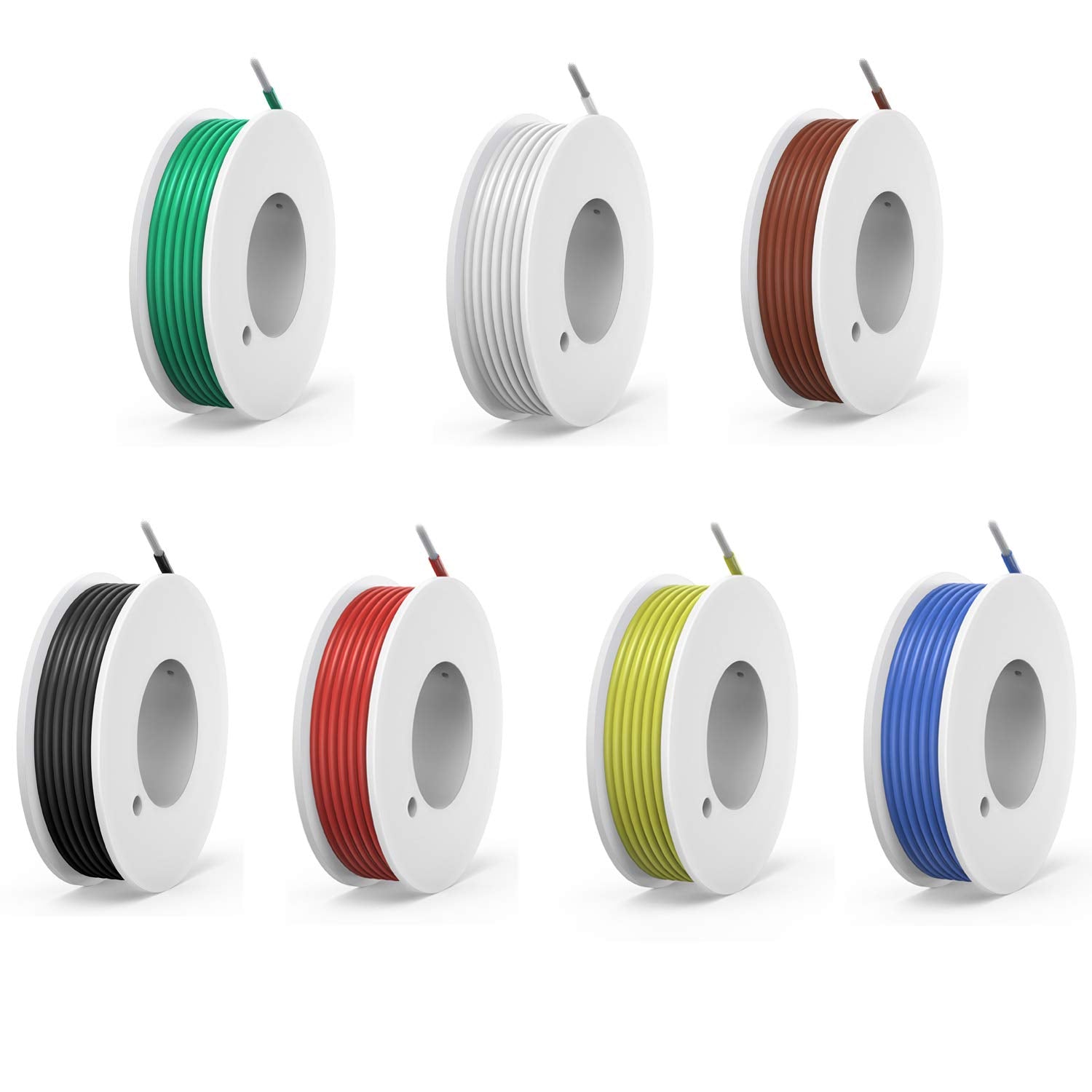

• Total 7 Colors:Black ,Red,Yellow,Green,Blue,White and Brown; Wire Length :7Meters / 23Ft each color/spool
• Voltage Rating: 600 Volts; Rated temperature: -60℃- + 200℃; Bear Current:5.0A
• 20 Gauge silicone wire - super flexible 100 strands of 0.08 mm Tinned copper wire - Highly efficient - Super low impedance for a highly efficient connection
• 20 Gauge silicone wire - super flexible 100 strands of 0.08 mm Tinned copper wire - Highly efficient - Super low impedance for a highly efficient connection

Details: Total 7 Colors:Black ,Red,Yellow,Green,Blue,White and Brown
Length：each color 23 feet(7 Meters)

Nominal Voltage: 600V
Testing Voltage:2000V
Temperature Range:-60 ℃ to 200 ℃
Conductor: Tinned Copper
OD Tolerance: ±0.1mm
Insulator: Silicone Rubber

Conductor：
(1) Gauge:20AWG(0.5mm²)
(2) Copper Number/Wire Diameter:100/0.08mm
(3) Diameter: ∮0.92mm

Insulator:
(1) Jacket Thick:0.55mm
(2) Over Diameter:1.8mm

Bear Current: 5.0A

EAN: 0652890996682

Package Dimensions: 6.3 x 2.4 x 2.3 inches

Part Number: Small Spool wire

model number: Small Spool wire
