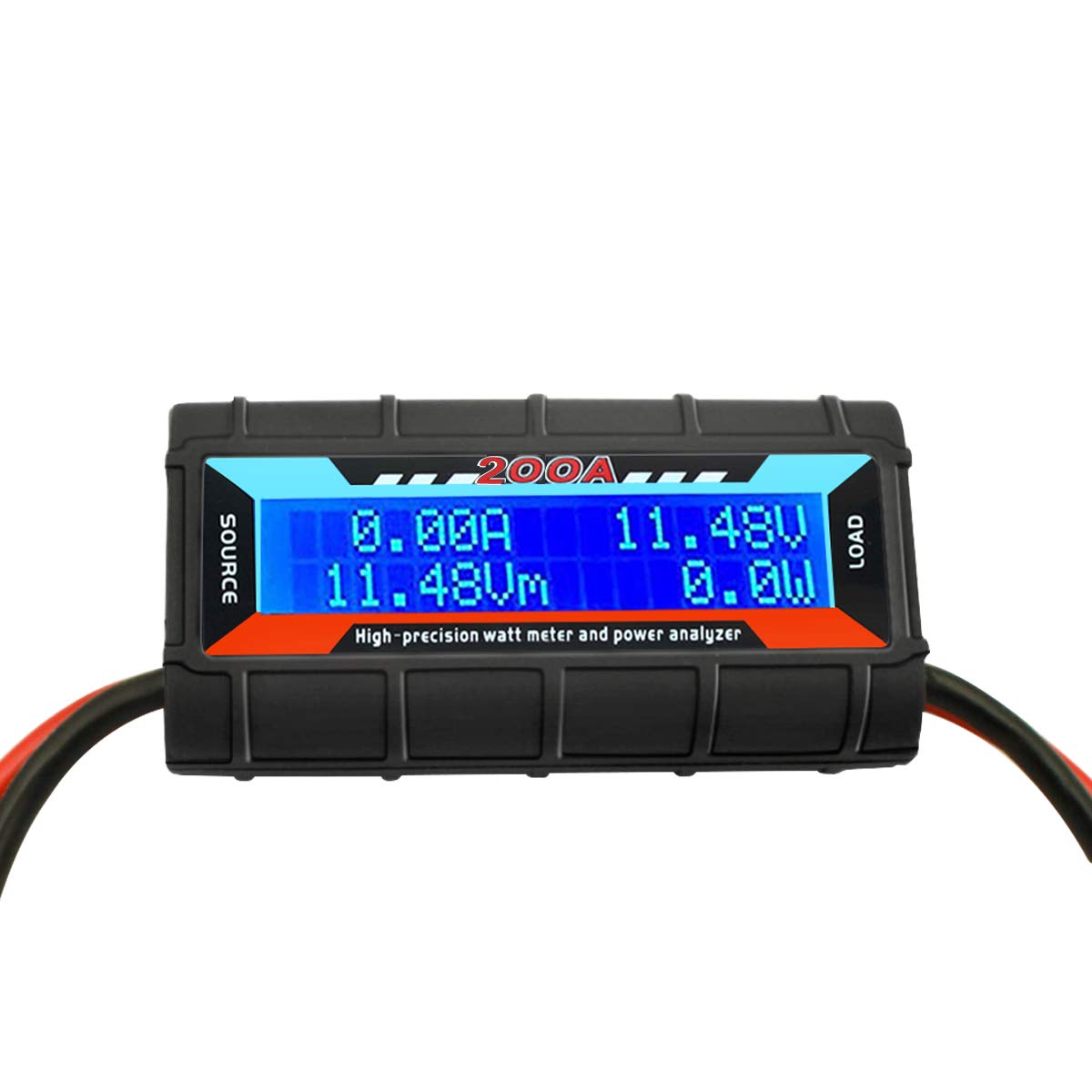

200A Watt Meter High Precision Power Analyzer Detector with Digital LCD Screen for Voltage (V) Power (W) urrent (A) Charge(Ah) and Energy (Wh) Measurement (200A)

Brand: YANXIAO

Color: Black

Features:

• Digital LCD Screen Display: easy to read the LCD provides clear digital reading.And real-time reading: the wattmeter will continuously provide real-time reading of amperes, volts, and watts after connection.
• Provides 10 Electrical Readings: Current (A), Voltage (V), Watts (W), Amp-hours (Ah), Watt-hours (Wh), Peak Amps (Ap), Minimum Volts (Vm), Peak Watts (Wp).
• High Precision: Measures 0-200 Amps, Resolution 0.01 Amps. Measures 0-60 volts, Resolution 0.01 volts. 0 - 6554W, resolution 0.1W. 0 - 65Ah, resolution 0.001Ah. 0 - 6554Wh, resolution 0.3Wh.

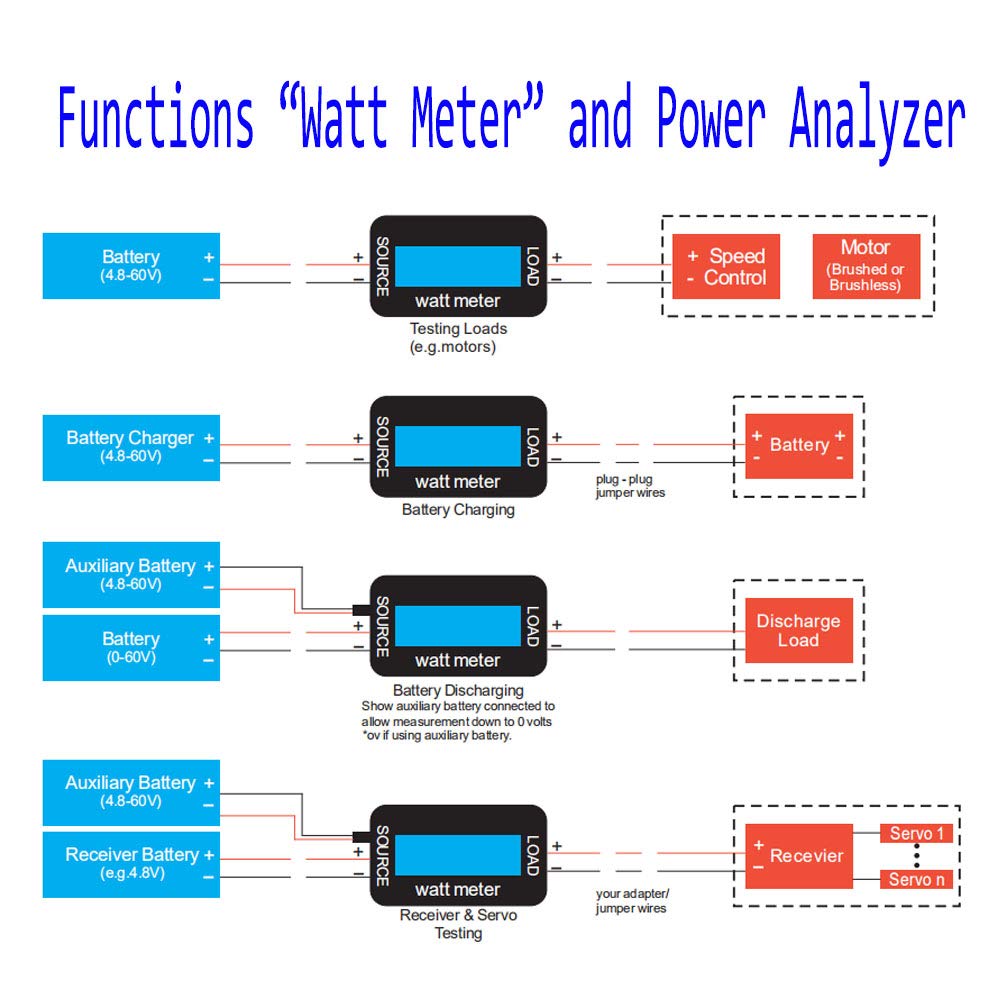

• Multi-functional tool: verify that there is sufficient working voltage under load.Prevent peak current from damaging batteries, ESC, motors, wiring and connectors.Verify correct battery charger operation (connect your battery and charger).
• Individual cells are balanced.Set the cut-off voltage and check the battery capacity. Detect the receiver and the actual operating current to determine whether UBEC, etc.

Details: Packing including:
1 * 0-60V 200A Watt Meter
1 * Manual

Test Range and Display format:
Operates from 4.8-60V (0V with optional auxiliary battery)
Measures 0-60V, 0-200A, 0-6554W, 0-6554Wh, 0-65Ah
Voltage test range: 0~60V, resolution 0.01V.
Current test range: 0~ 200A, resolution 0.01A.
Active Power test range: 0~6554W, resolution 0.1W.
Energy test range: 0~6554Wh, resolution 0.1Wh.
Charge test range: 0-65Ah, resolution 0.001Ah.
In Circuit Resistance: 0.001 Ohms.
Operation Current: 7 mA.
Auxiliary Power Voltage: 4.0V ~ 60V
Measurement Update period: 400mS.
Signal Sampling Rate: sample/s.
Data Queue Sequence time: 2 seconds.
Size: 8.3cm x 4.7cm x 2cm - 3.27inch x 1.85inch x 0.79inch
Display Screen: 1602 STN LCD

EAN: 8424615489814

Package Dimensions: 4.6 x 3.2 x 1.7 inches
