Connector Parameters: Cable application range is 2.5m㎡—6m㎡/14AWG—10AWG, 1000V DC voltage, 30A current, operating temperature range -40℉~ 185℉, IP67 waterproof grade, resistant to water, rain and moisture, safe for electrical connection.
Solar Connector Compatibility: Solar male and female connectors are compatible with different insulation diameters of 2.5mm² - 4mm² - 6mm² / 14AWG - 12AWG - 10AWG, suitable for the connection and installation of various solar panel cables.

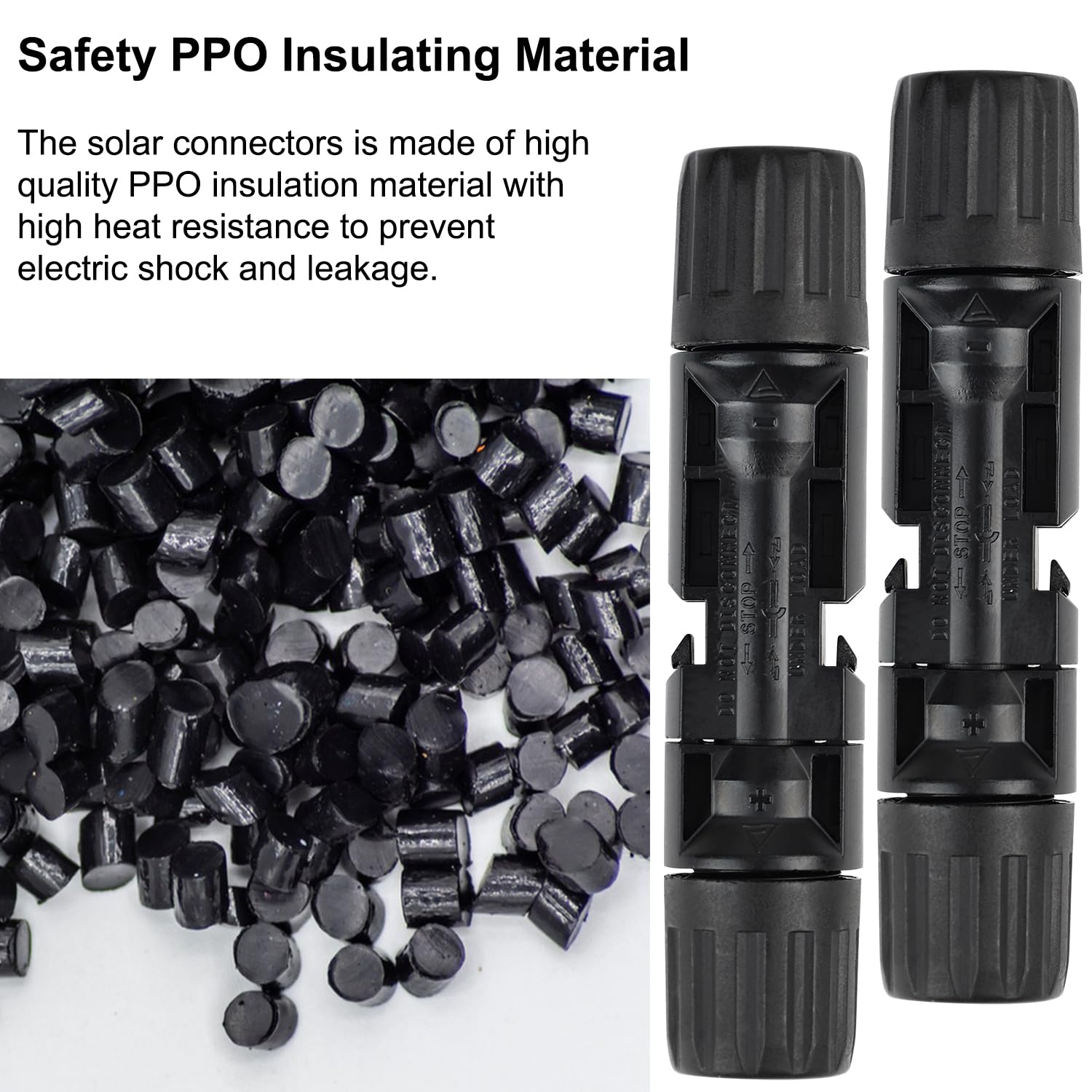

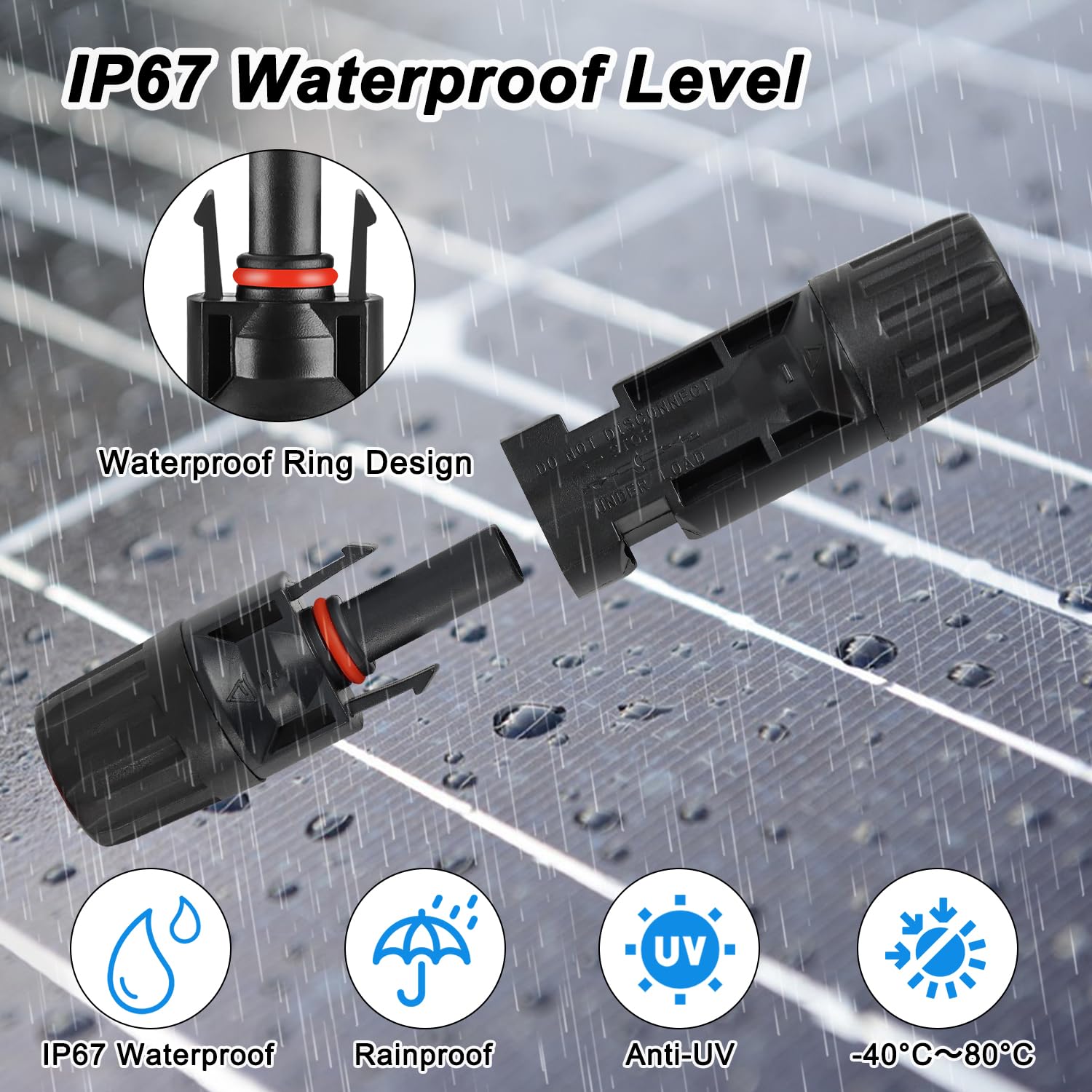

Safety Insulation Materials: The MC4 solar connector is made of high-quality insulation materials such as PPO. PPO material is safe, insulating, and has excellent aging resistance and UV durability. The connector has a rubber waterproof gasket with an IP67 waterproof rating inside, making it waterproof, rainproof, and moisture-proof. It can withstand harsh weather conditions such as heavy rain, snowstorms, or high temperatures.
Conductor Material: The conductor of the solar connector is made of tin-plated copper, which has excellent electrical conductivity, ensuring efficient operation of your solar system and reducing energy loss.

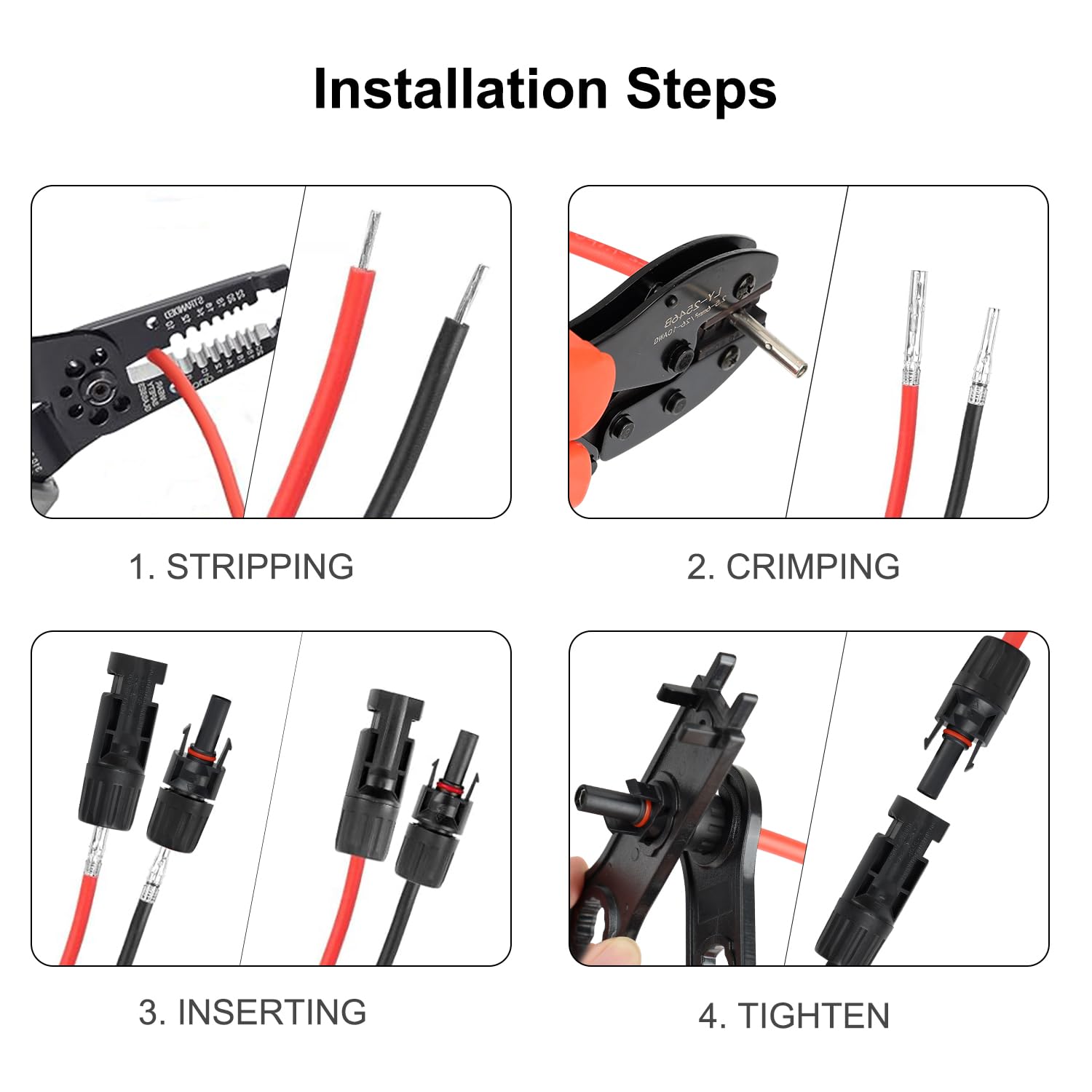

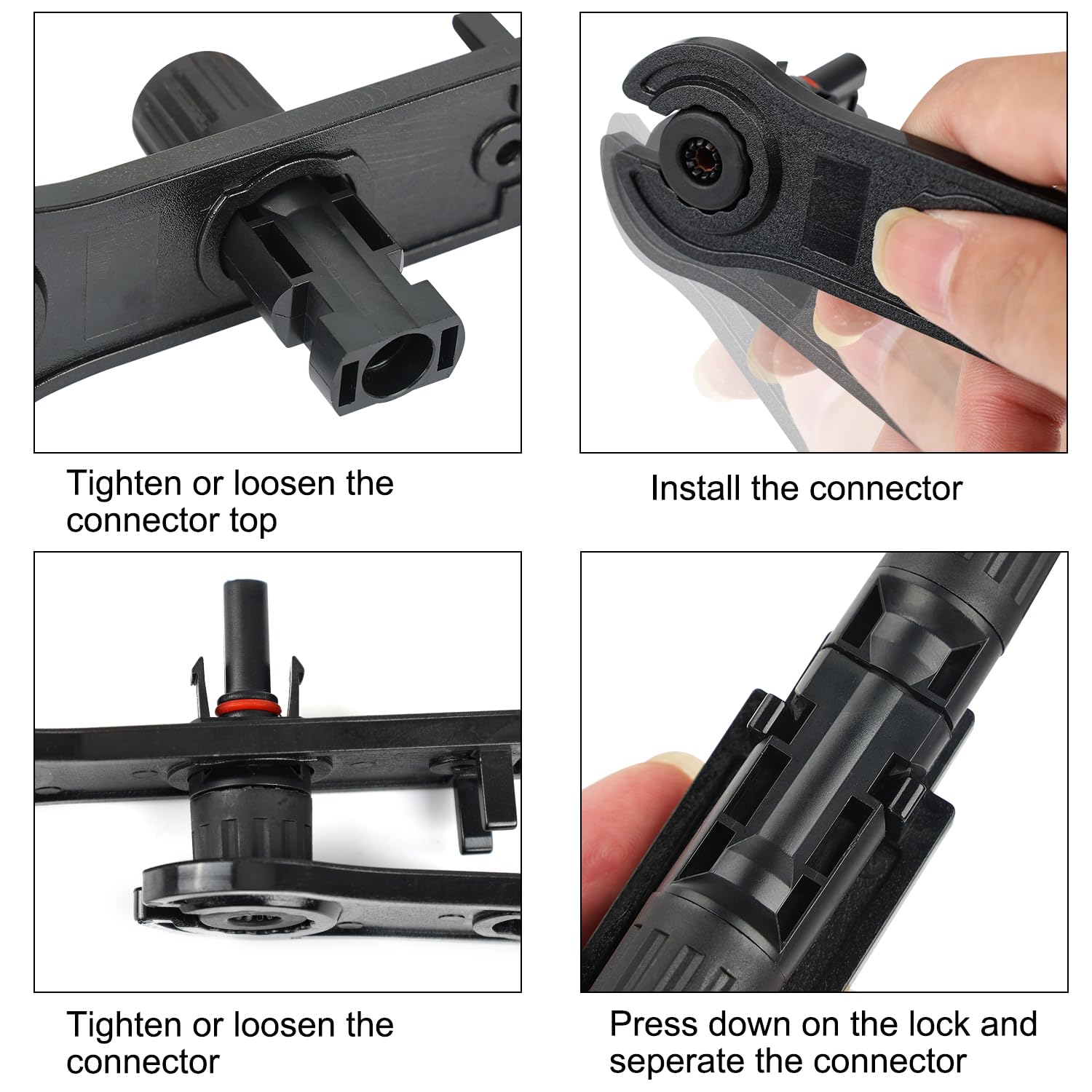

Easy to Use: During installation, simply press the male and female plugs onto it to lock them tightly. To disassemble, place the wrench on both sides of the built-in lock. The middle and top of the wrench can be used to tighten or loosen the top of the connector.
