Acymner Vacuum and Fuel Pump Tester Gauge Kit | Gauge Leak Carburetor Pressure Diagnostics Tool Kit

Brand: Acymner

Color: Blue

Features:

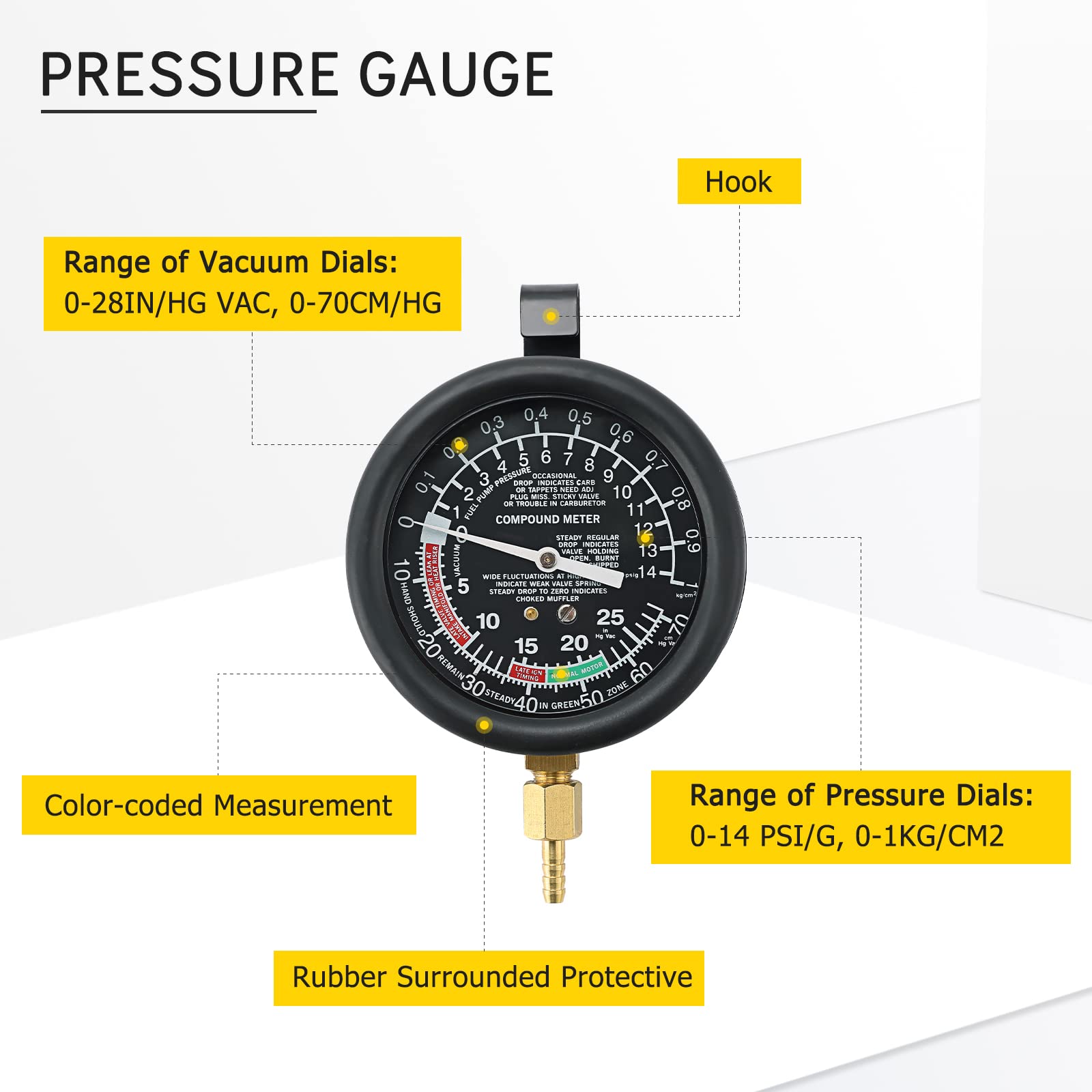

• Professional Vacuum and Fuel Pump Tester Kit: Fuel Pump Pressure & Vacuum Tester Gauge Kit, Carburetor Test enables testing of the fuel delivery pressure to the engine to check for worn or defective parts; Diagnose leaking valves, incorrect timing, leaky intake manifolds, and clogged mufflers. Fuel pump operating pressures up to 10 PSI (0.7 Bar), Pressure gauge 0-28 IN-Hg (0-70 cm-HG) vacuum and 0-10 PSI (0-0.7 kg/cm²) pressure
• Easy to Use: Instruction manual included; The fuel pump pressure & vacuum tester gauge kit includes a variety of adapters ideal for most vehicles; 4-inch (10.2cm) diameter pressure gauge with color-coded measurement scales, 1.2-inch (3cm) thickness with rubber side notches, easy to read and grip; Extra-long rubber hose and 14mm/18mm manifold adapter; Rubber hose 40 PSI (2.8 Bar) maximum working pressure.

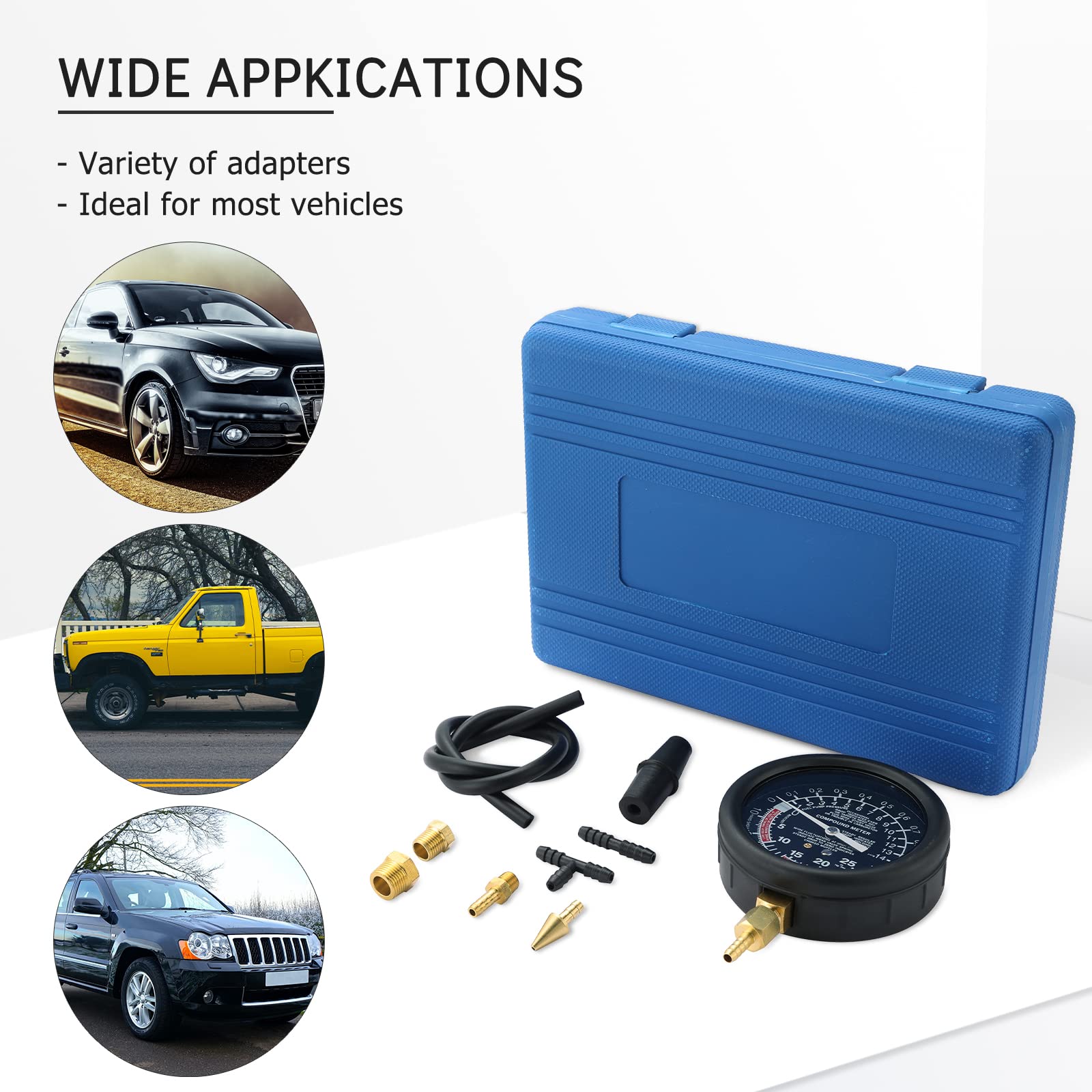

• Wide Application: This vacuum and fuel pump tester gauge kit will test fuel pump pressure and all vacuum operated devices, 4 tests can be performed – Fuel pump pressure, fuel pump vacuum, carburetor intake manifold, and vacuum test.

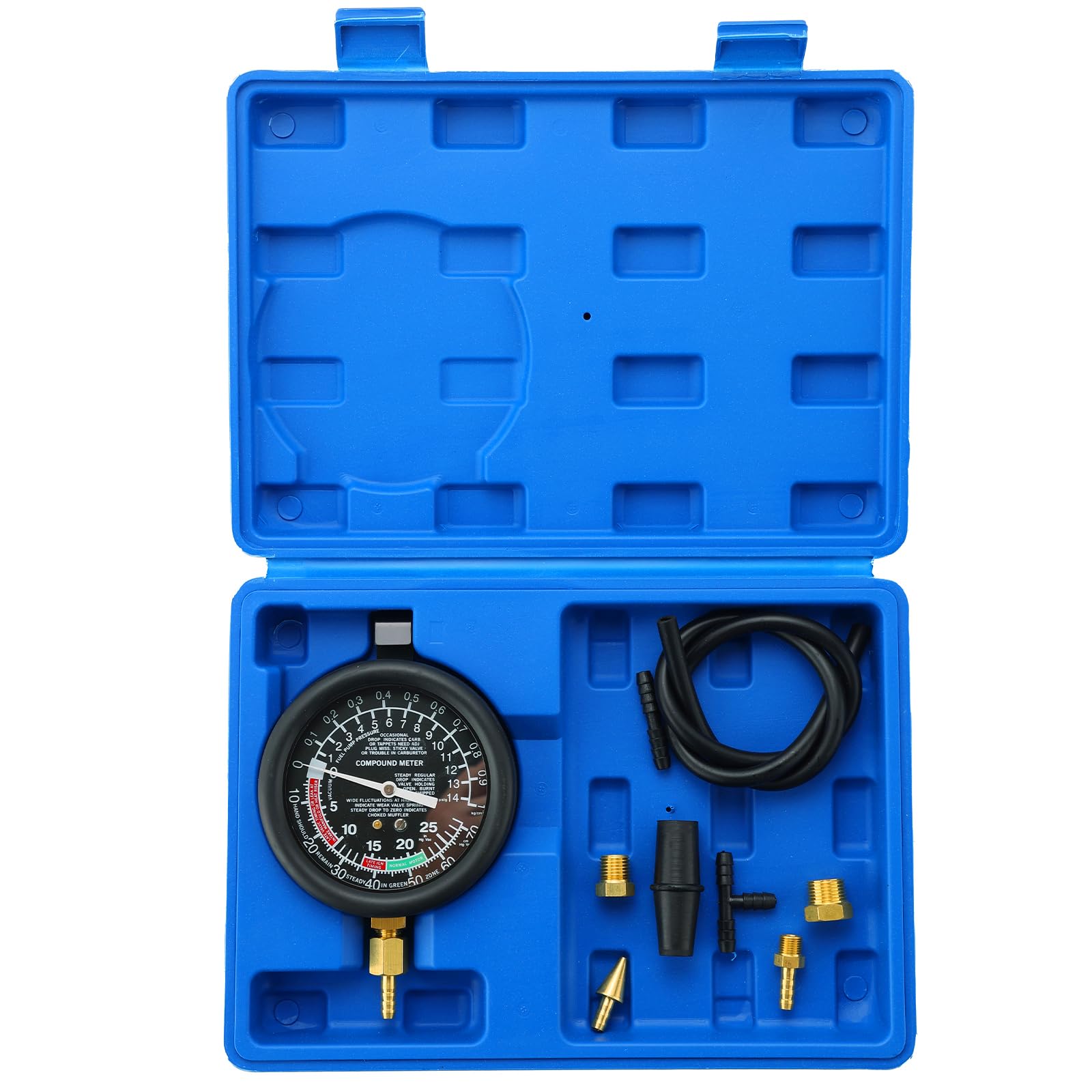

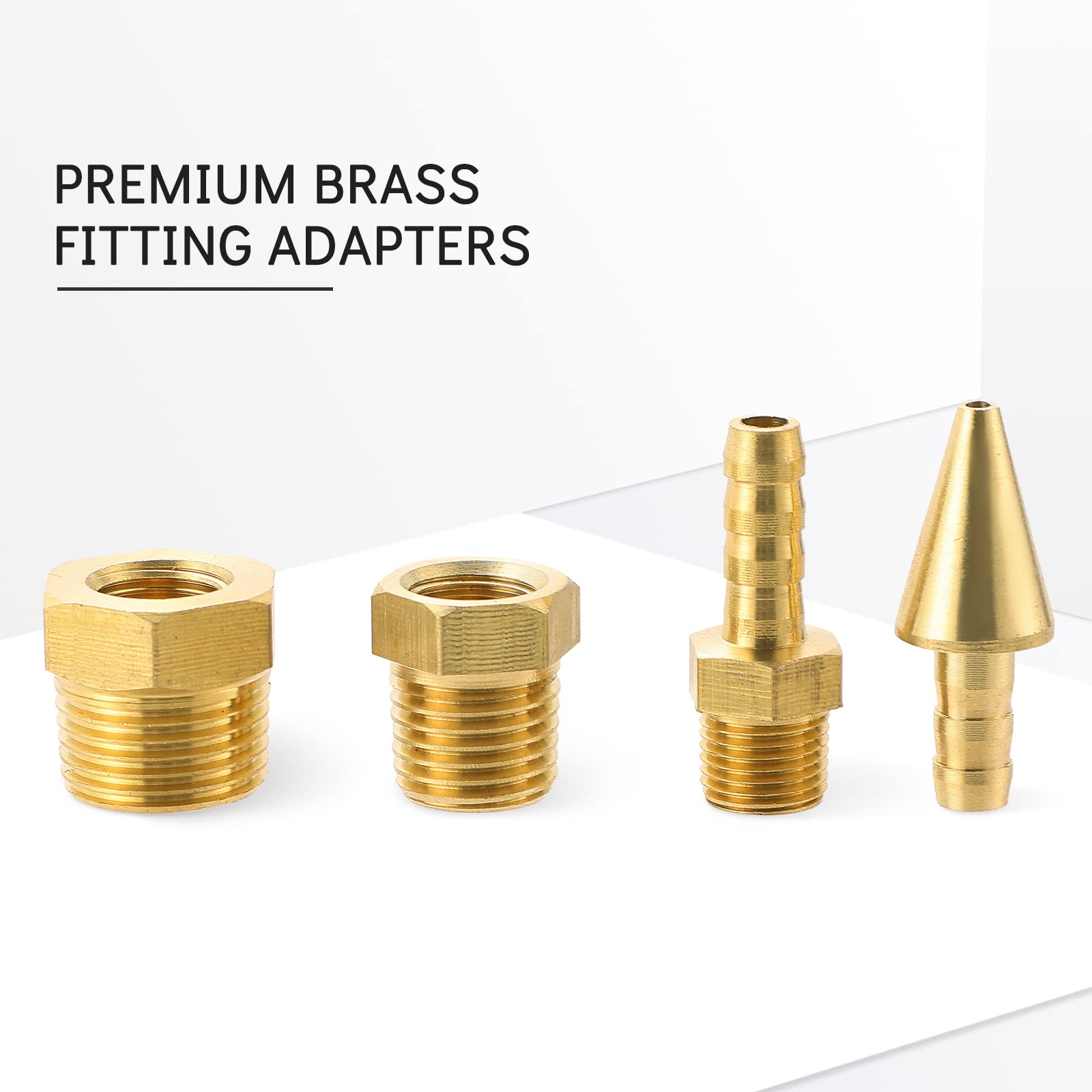

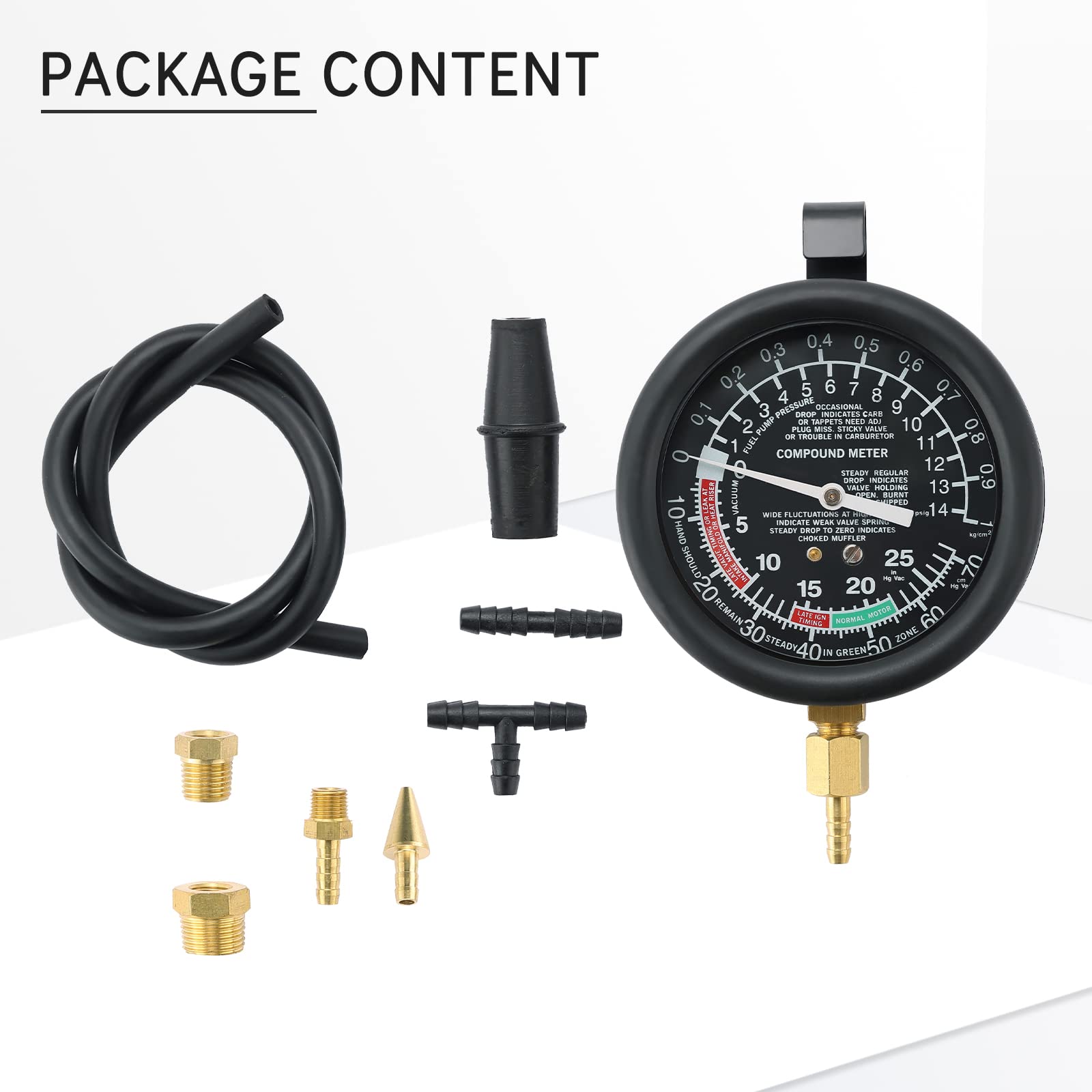

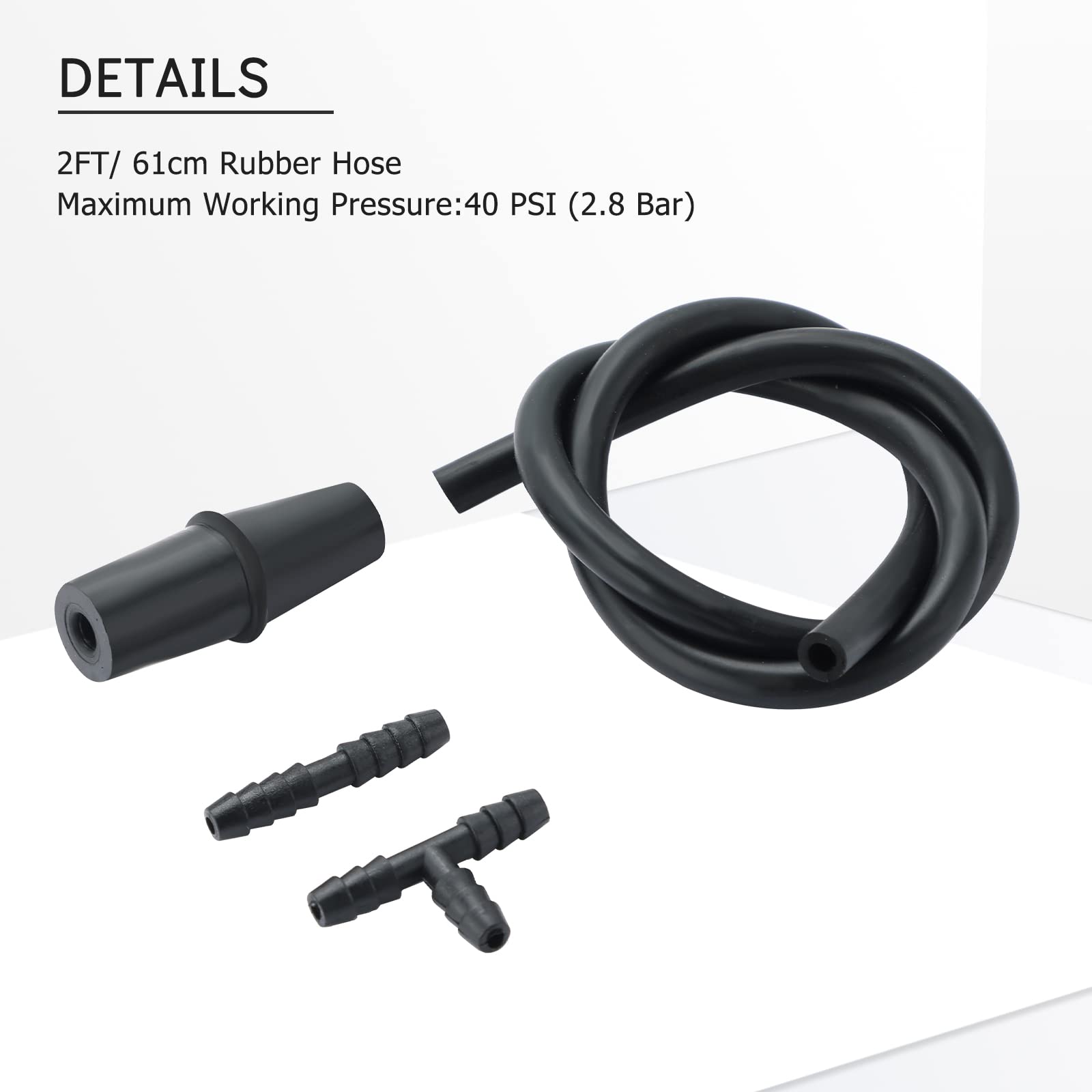

• Package Included: 1x vacuum pressure gauge, 1x 2-feet (61cm) long rubber hose – 13/64-inch ID 23/64-inch OD, 1x brass cone adapter, 1x plastic connector, 1x 1/4”x18 male to 1/8”-27 female brass adapter, 1x 1/8”-27 male to 7/32” barbed brass fitting adapter, 1x 1/8”-27 female to 3/8” male brass adapter, 1x T-type 7/32” barded brass fitting adapter, 1x carrying case
• Easy Storage: Our vacuum gauge tester kit is well organized in a storage case for easy transportation, simple storage, and quick identification.

Package Dimensions: 10.8 x 7.8 x 2.0 inches

Part Number: ZH108-3

model number: ZH108-3
