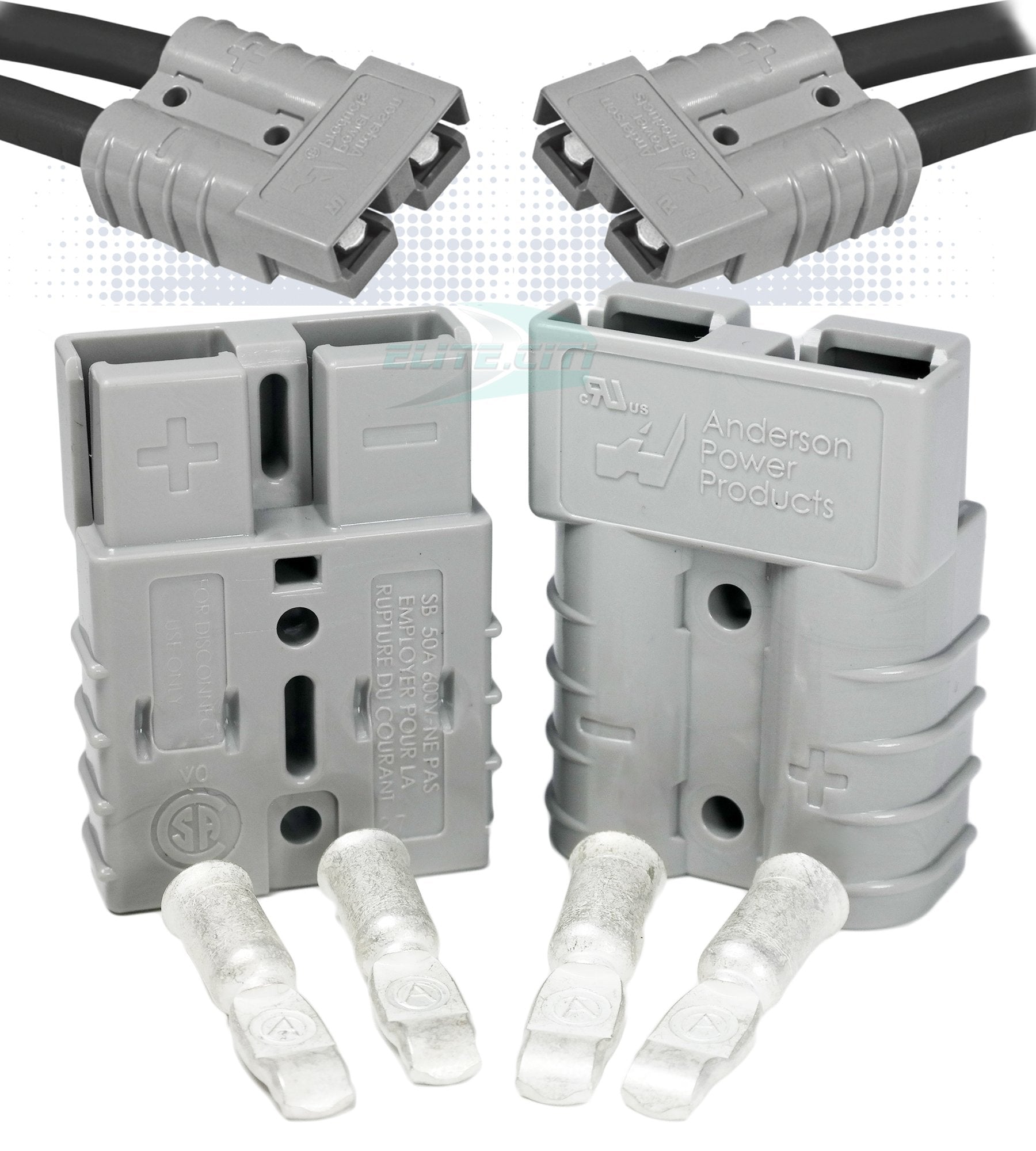

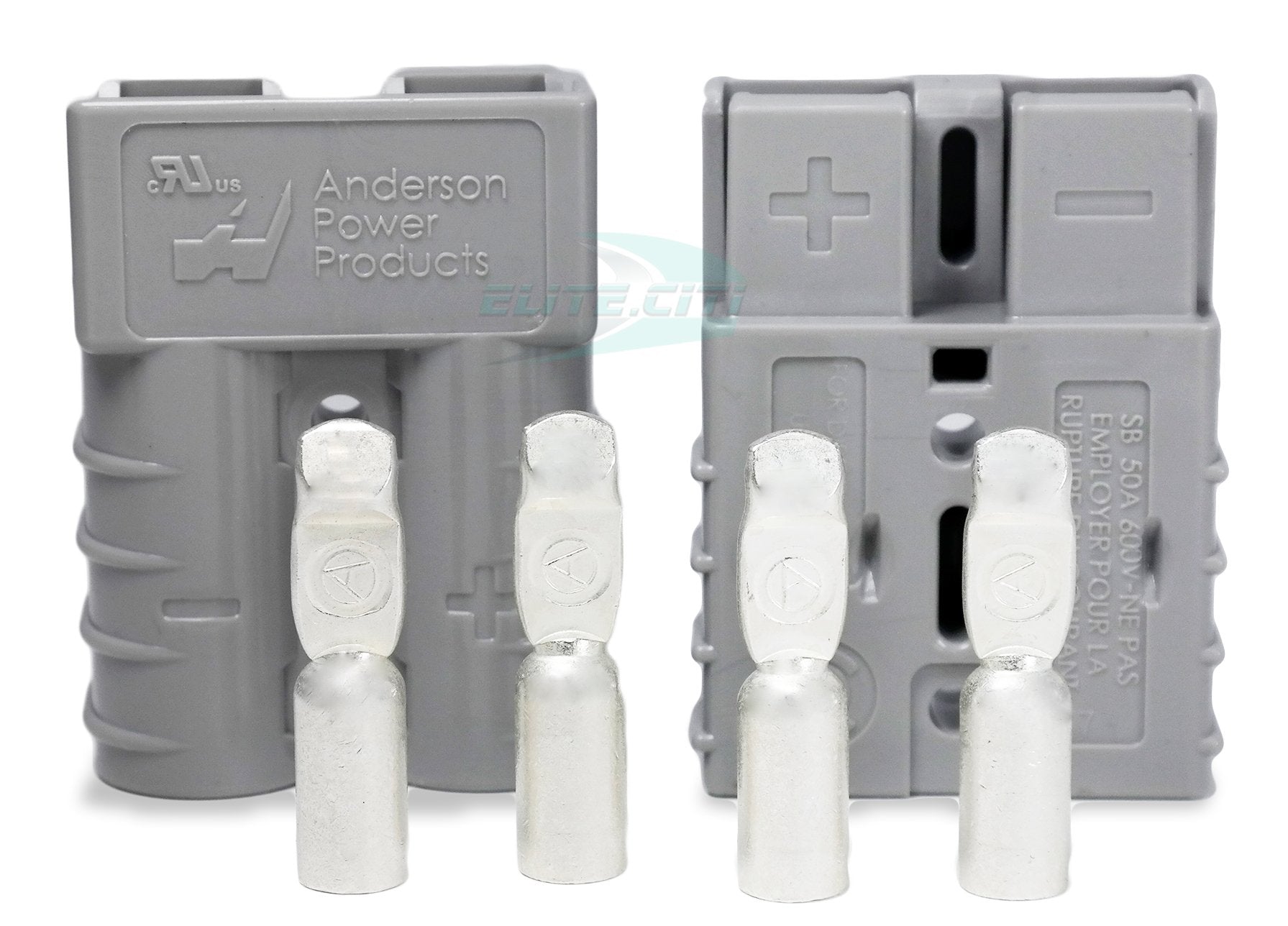

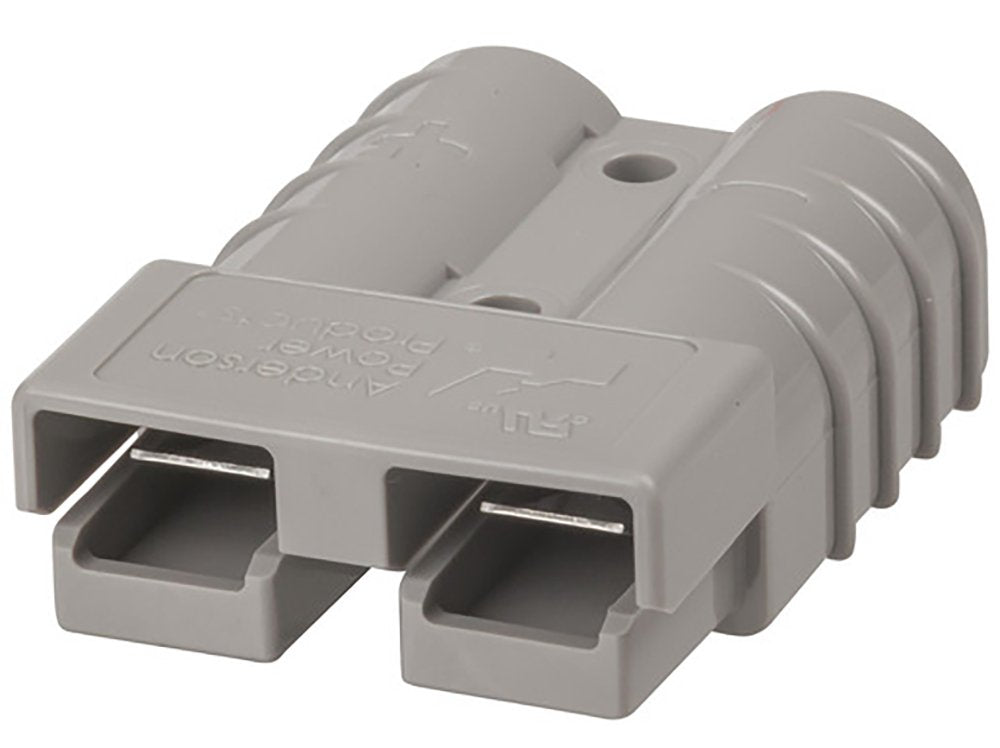

Anderson Power Products SB50 Connector Kit, 50 Amps, 36V Gray Housing, w/ 6 AWG, 6319 (Pair)

Brand: Anderson Power Products

Color: Gray

Features:

• Anderson Powerpole Connectors ( Made in USA )
• Connector Housing, Amp Rating: 120A
• Heavy Duty Contact Amp Rating: 50A, 600V
• Recommended for use with 6 gauge wire
• Standard Temp: -20°C to 105°C (-4°C to 221°C)

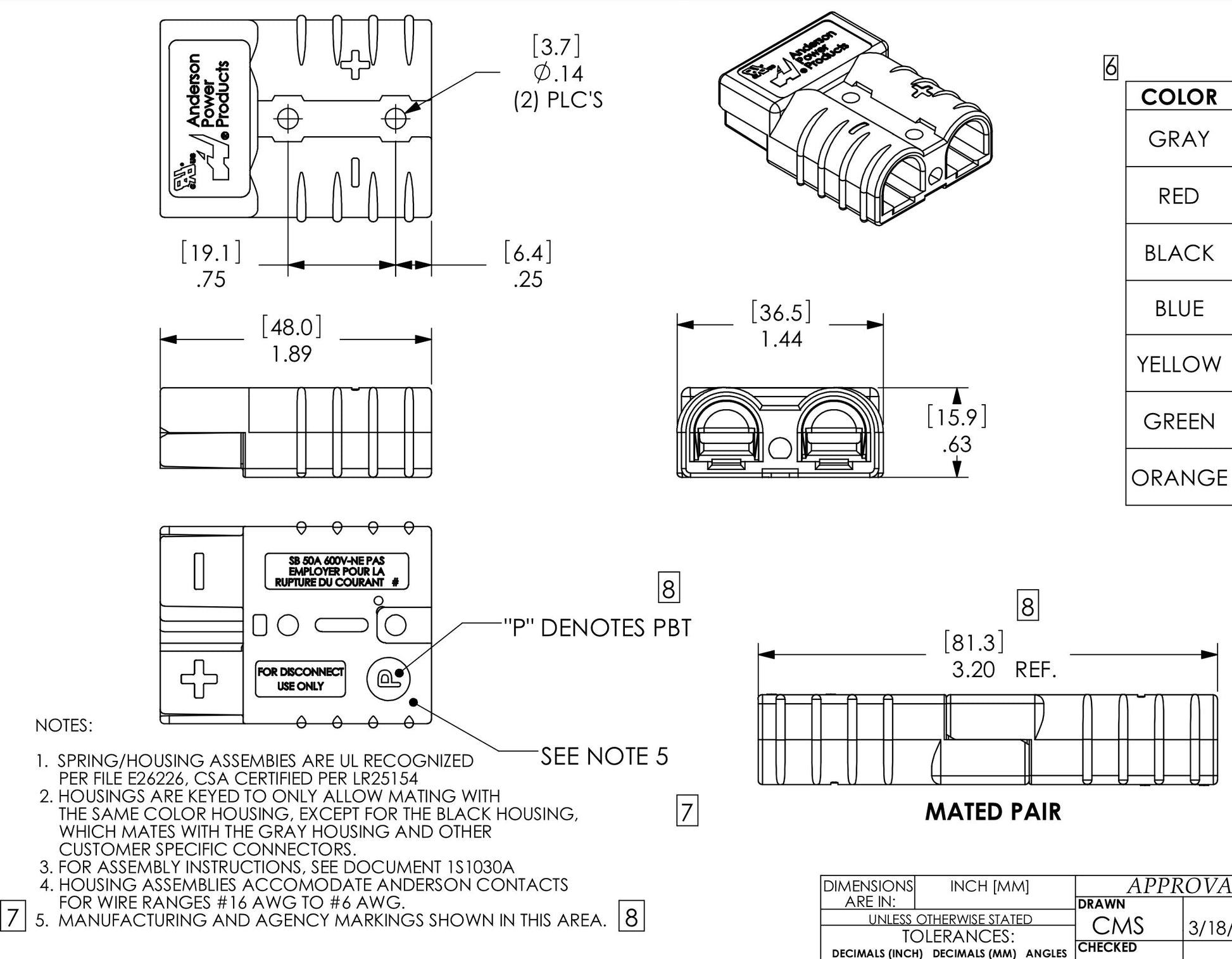

Details: Housing Specification:
-Gauge (AWG): 6 Gauge
-Amp Rating: 120A
-SB50 connectors feature a one piece plastic housing
-SB50 using stainless steel springs to hold low resistance contacts in place.
-Wires sizes from #6 (13.3 mm2) up to #16 (1.5 mm2) are held in the smallest of the SB series housings.

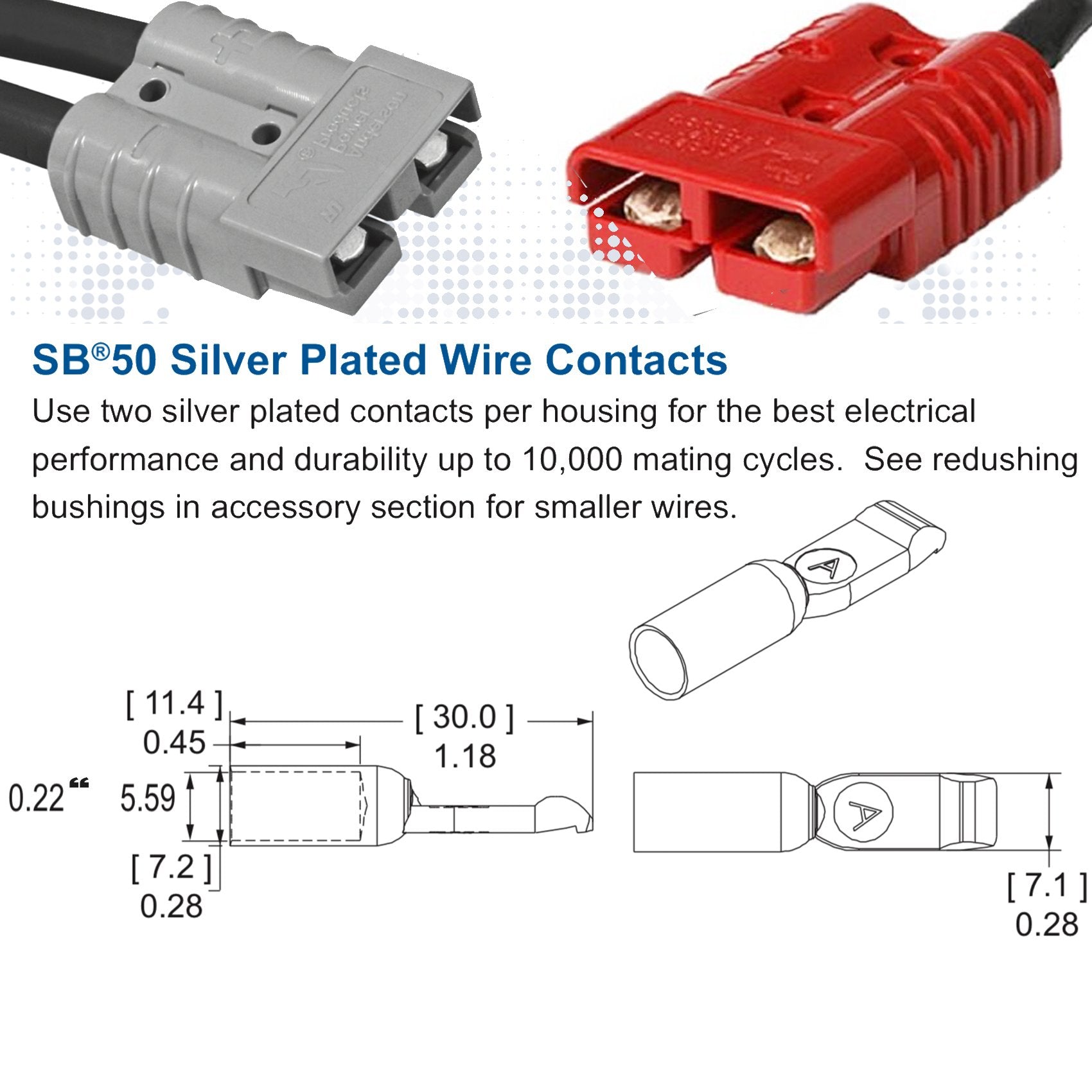

Silver Plates Contact info
-Component Type: Contact
-Contact Material: Copper Alloy
-Series: SB50/PP75
-Gauge (AWG): #6
-Amp Rating: 50A
-Voltage Current: 600V
-Each Powerpole Anderson Connector is a genderless, single-pole connector half, which can be dovetailed

Packaging Content:
Qty: 2 Anderson SB50 Gray Housing (36V)
Qty: 4 Anderson #6 Gauge (50amps)

Package Dimensions: 5.8 x 3.8 x 0.8 inches

Part Number: 6319 ( 2 Set)

model number: SB50
