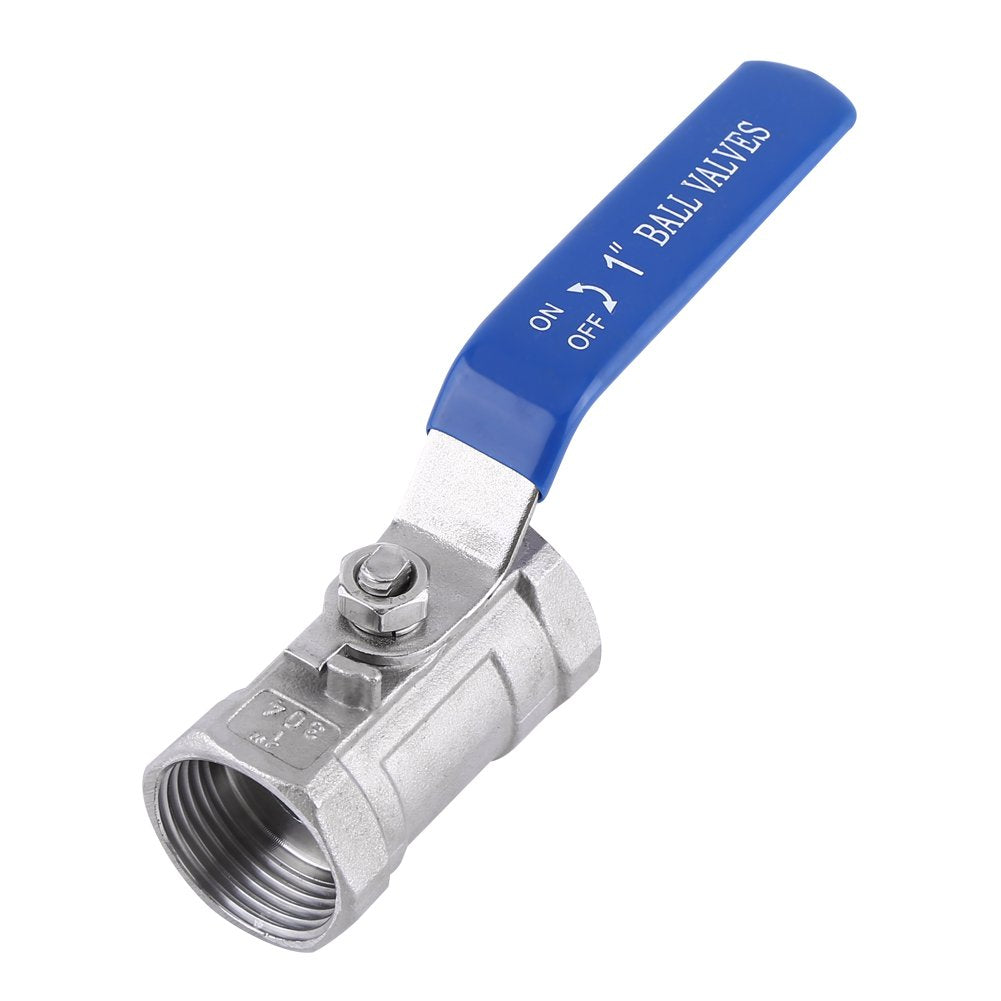

Ball Valve, Stainless Steel Ball Valve, for Shutoff and Control Applications. (1 (1 inch))

Brand: GOWENIC

Features:

• Handle lies flat in alignment with the when open and perpendicular when closed for easy visual confirmation of valve's status
• This ball valves would be excellent choices for shutoff and control applications
• Valve bodies are made of 304 stainless steel for and long service life
• Ball valves are durable, performing well after many cycles, and reliable, closing securely even after long periods of disuse
• Ball valve's ease of operation, repair, and versatility lend it to extensive industrial use

Details: Description:
A ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball to control through it. It is open when the ball's hole is in line with the and closed when it is pivoted 90-degrees by the valve handle. The handle lies flat in alignment with the when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status.

Features:
Valve bodies are made of 304 stainless steel for and long service life.

Ball valves are durable, performing well after many cycles, and reliable, closing securely even after long periods of disuse.
Ball valve's ease of operation, repair, and versatility lend it to extensive industrial use.
Handle lies flat in alignment with the when open and perpendicular when closed for easy visual confirmation of valve's status.

This ball valves would be excellent choices for shutoff and control applications.

Specifications:
Material: 304 stainless steel
Port Type: Reduced port

Thread Type: Female x Female
Thread Standard: BSP(British Standard Pipe)
Thread Size: 1/4, 3/8, 3/4, 1, 1-1/4, 1-1/2(optional)
Thread Size (BSP) 1/4 3/8 3/4 1 1-1/4 1-1/2 Thread Inner Diameter (Approx.) 11.4mm 14.9mm 24.1mm 30.2mm 38.9mm 44.8mm . Pressure: 1000PSI

Quantity: 1

Package Includes:
1 x Ball Valve

Note: This one-piece product is half-diameter and small design.

Package Dimensions: 6.7 x 3.5 x 1.8 inches

Part Number: GOWENIC23gves1xfg-04

model number: GOWENIC23gves1xfg-04
