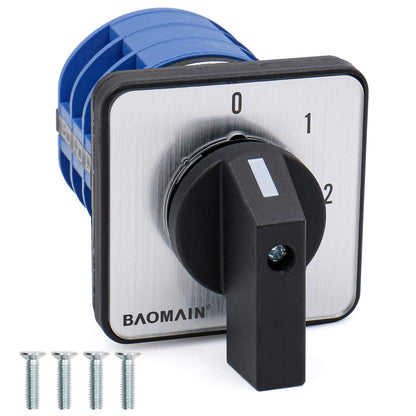

Model : SZW26-40/0-3.3 ; External Material : Plastic
Ui : 660V ; Ith : 40A
Positions: 4 Positions(0-1-2-3)

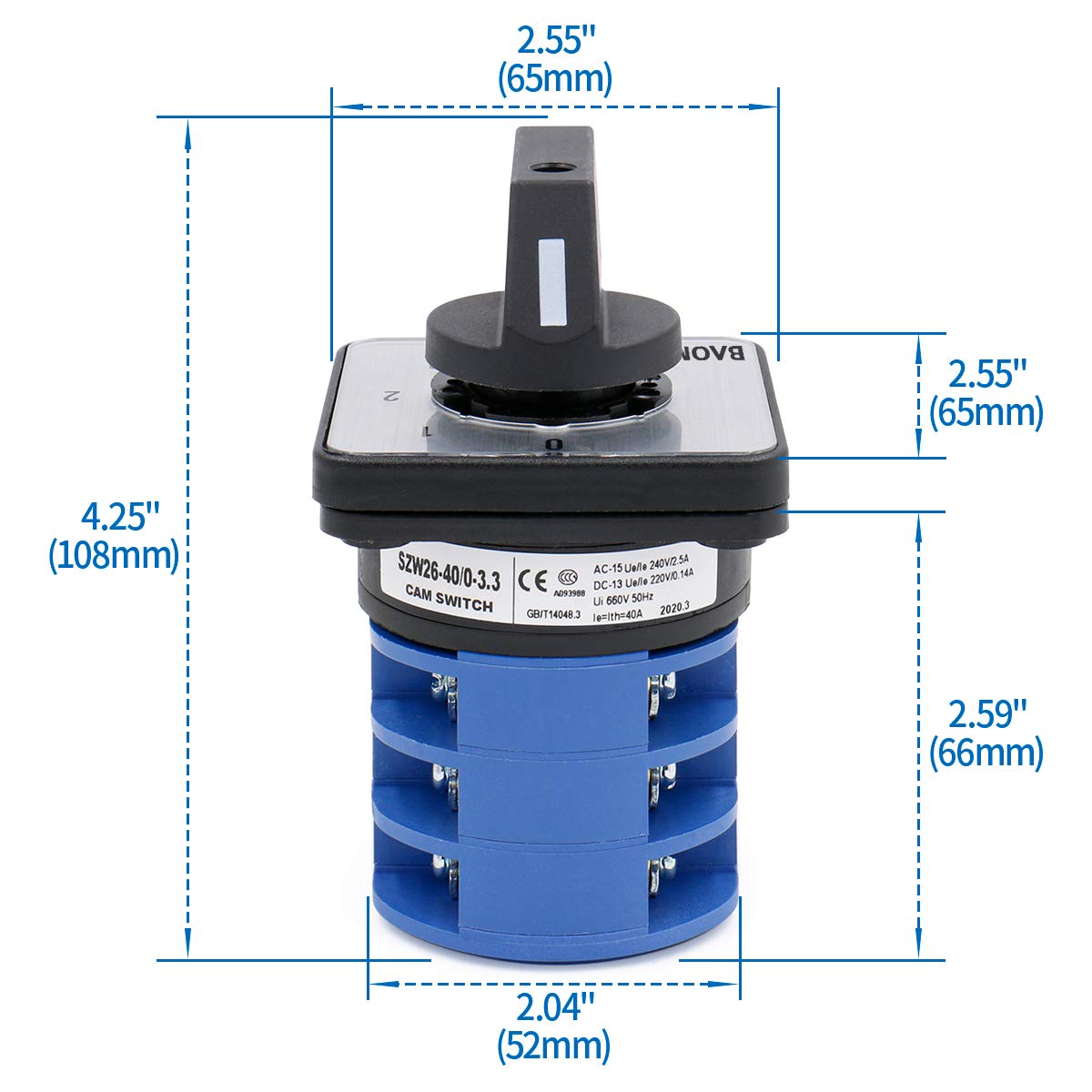

Size : 65 x 65x 108mm /2.55" x 2.55" x 4.25"(L*W*H)
Net Weight : 248g ; Package : 1 x Changeover Switch

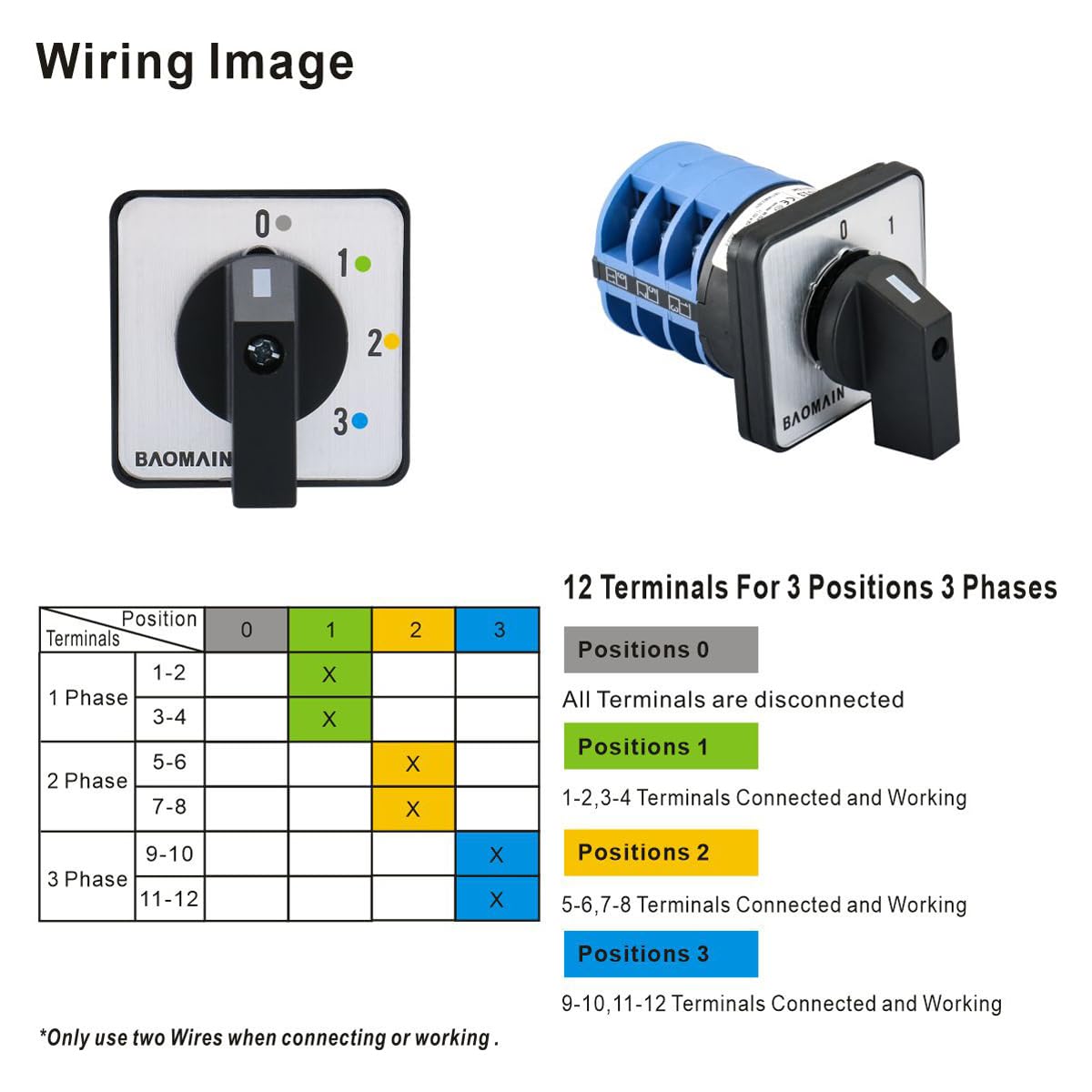

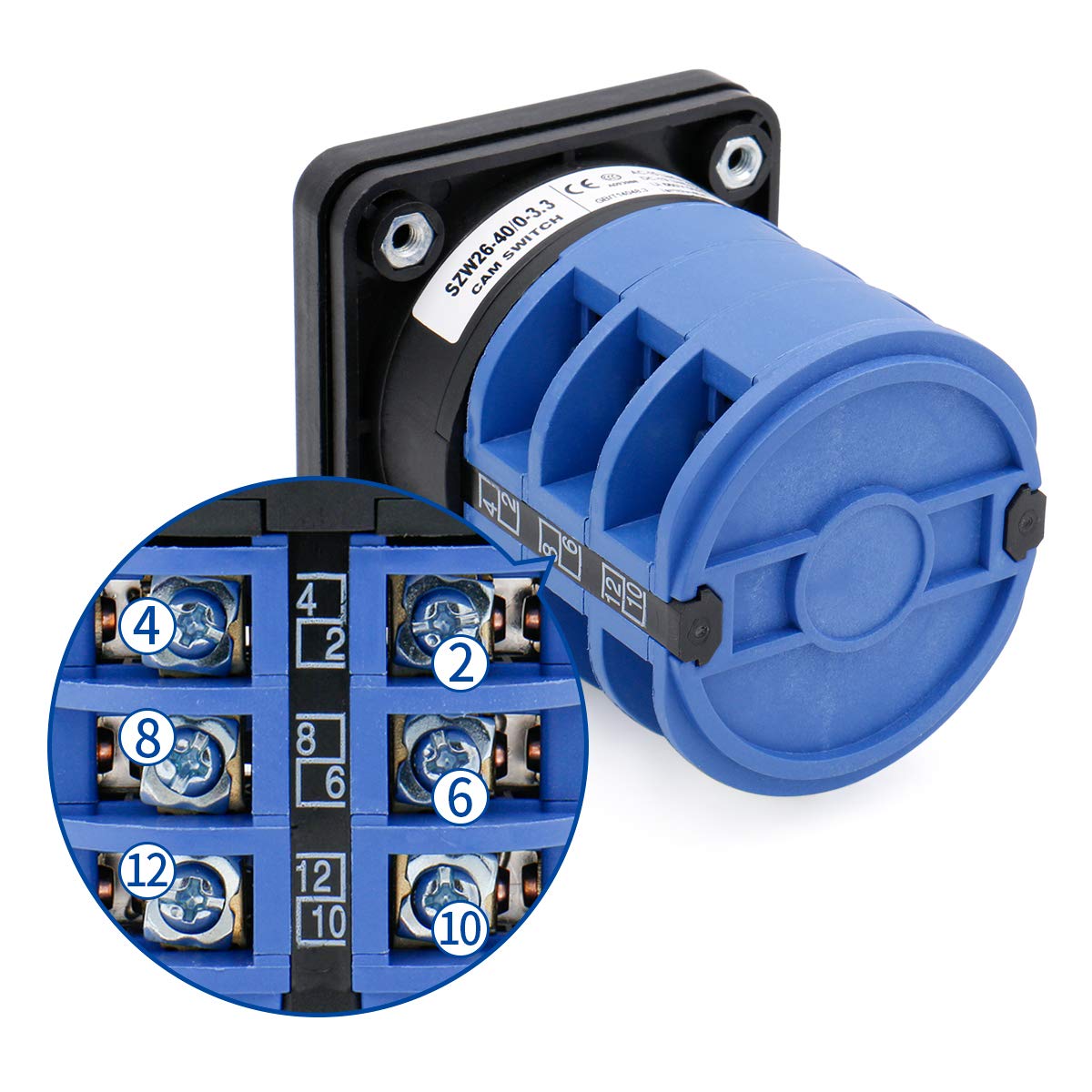

Details: 4 position control and 12 terminals design. Suitable for the thickness between 1mm to 4mm of the mounting board. Suitable for a wide range of applications, it can be applied as a circuit control switch, master control switch, testing equipment control switch, or change-over switch for electric welding machinery and other equipment.
