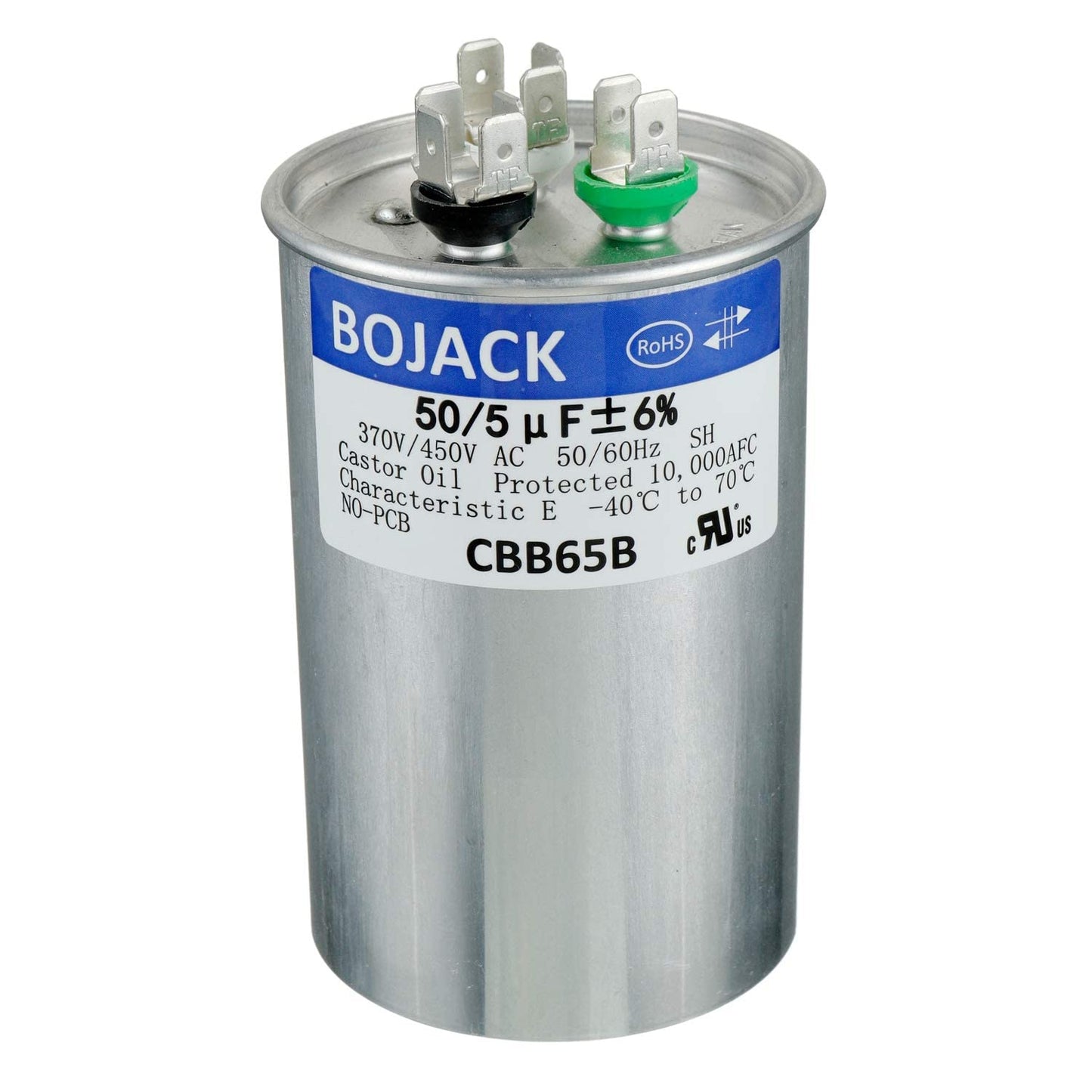

BOJACK 50+5uF 50/5MFD ±6% 370V/440V CBB65 Dual Run Circular Start Capacitor for AC Motor Run or Fan Start or Condenser Straight

Brand: BOJACK

Features:

• BOJACK 50+5uF ±6% 370V/440V CBB65 Dual run circular start capacitor
• Capacitor dimension: Diameter<2.56 inch> Height <3.94 inch>
• Operating temperature: -40 ℃ to +70℃/-104℉to+158℉，Safety rated: 10,000 AFC

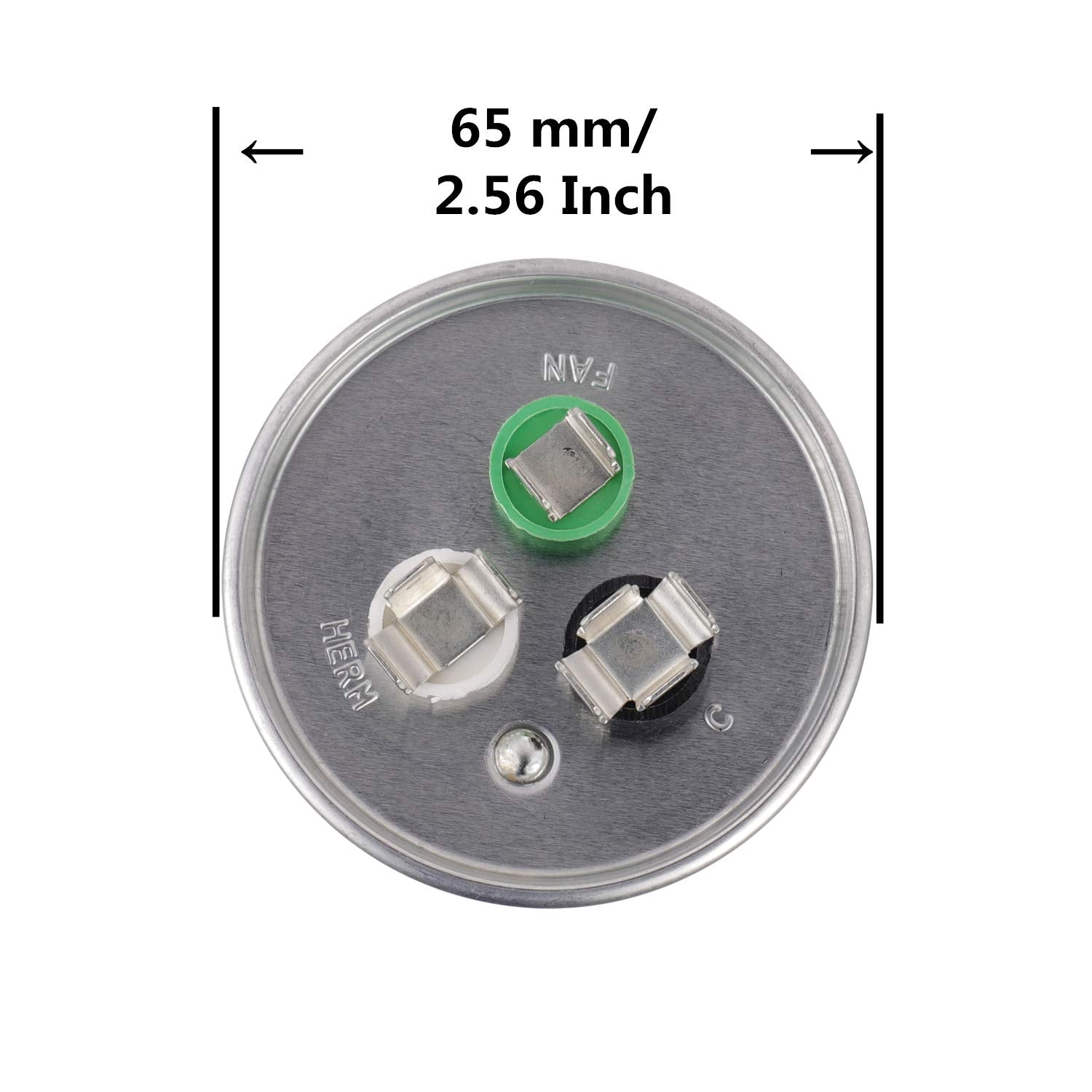

• Three terminals on the top are labeled "Herm"/"H" for the compressor motor, "Fan"/"F" for the fan, and "C" for the common line.
• Replacement for: 97F9850 , 97F9970 , 97F9970BZ3 , TRCFD505 , RC0120 , 12790 , RC0121, 1094993 , 38514D018 , P2915053R , HC98CA050 , P291-5053RS , 024-25338-000 , 43-25133-25 , P291-5053R , HC98JA051 , 43-23204-15 , 432320415 , 05706036 , D6789043 , B94577400 , B945774-00 , CARG32458 , TT-CAP-50/5/440R , 27L601

Details: BOJACK Dual run circular start capacitor

Ombines two capacitors into one unit. Three terminals on the top are labeled "Herm"/"H" for the compressor motor, "Fan"/"F" for the fan, and "C" for the common line.It will power a compressor motor and a fan motor
Model: CBB65（Universal model）
Shell material: metal
Dielectric Material: metallized polypropylene film
Capacity: 50+5uf
Tolerance: ±6%
Rated voltage: 370V/440V AC
Frequency: 50 / 60Hz
Safety rated: 10,000 AFC
Capacitor dimension: Diameter<2.56 inch> Height <3.94 inch>
Operating temperature: -40 ℃ to +70℃/-104℉to+158℉

This capacitor is used for start-up and operation of AC motors with
frequency of 50Hz/60Hz such as Industrial Grade Replacement for
Central Air-Conditioners, Heat Pumps, Condenser Fan Motors, and
Compressors.It is small in size, lightweight, heat resisting and anti-explosion.
Round capacitor can be used to substitute oval shape one with the
same MFD AND Volt specs.A 440 volt capacitor can be used in place
of a 370 volt, as it is build better, but the 370 can’t be used in place
of a 440 volt.

EAN: 0768894138581

Package Dimensions: 4.7 x 2.8 x 2.8 inches

Part Number: BJ-CAP6

model number: BJ-CAP6
