Camlock Fittings 1-1/2 Inch Type C & E Polypropylene Cam and Groove Hose Fitting Kit with 1-1/2" Female & Male Camlock x 1-1/2" Hose Shank (Hose Barb), Cam and Groove Hose Couplings (2 Sets/ 4 Pcs)

Brand: TALEGEN

Color: Black

Features:

• 1-1/2 inch Polypropylene Cam & Groove Hose Fittings: Quick Connect / Disconnect Hose Fitting. Made of Polypropylene, high-impact strength, resistant to abrasion, corrosion, and chemicals, long service life

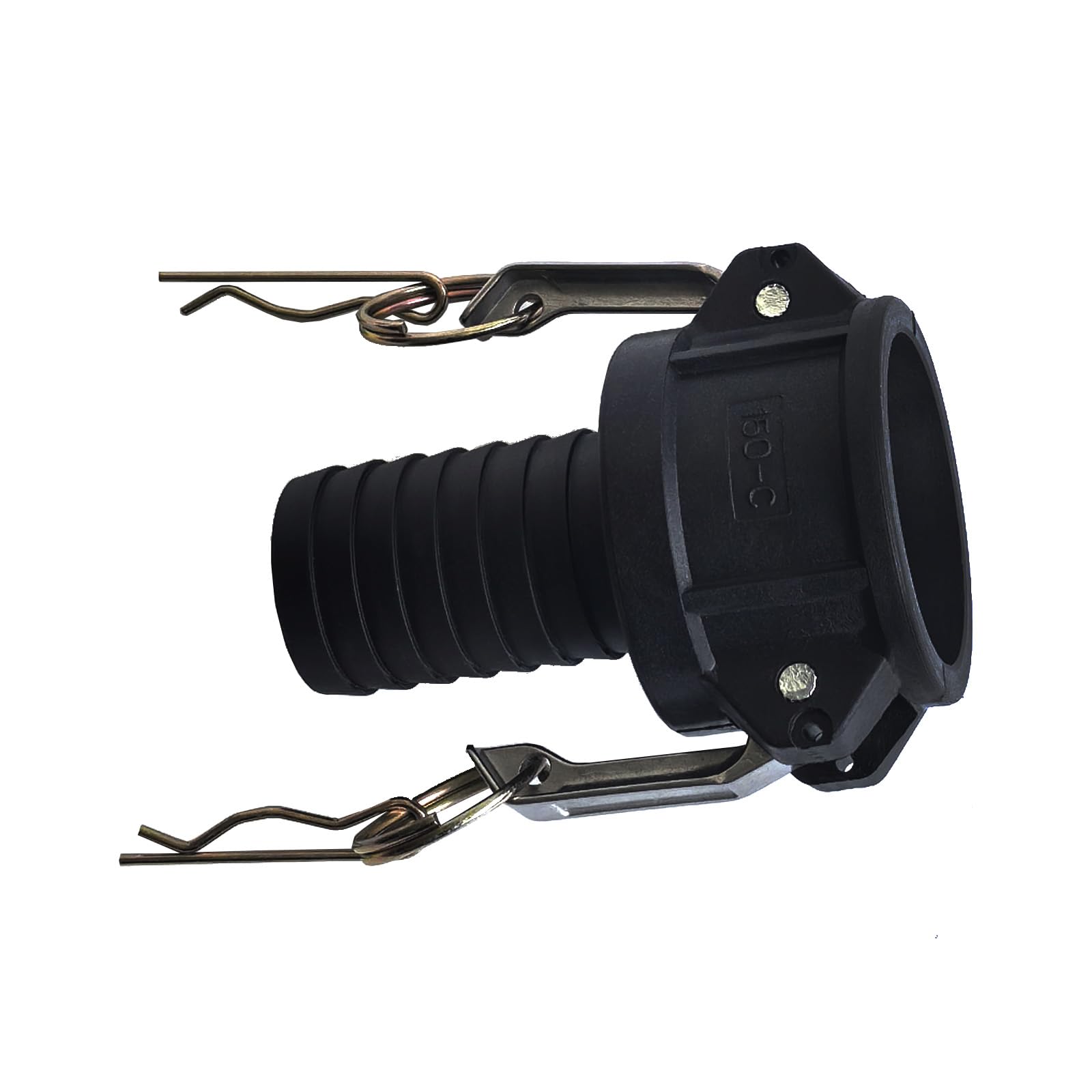

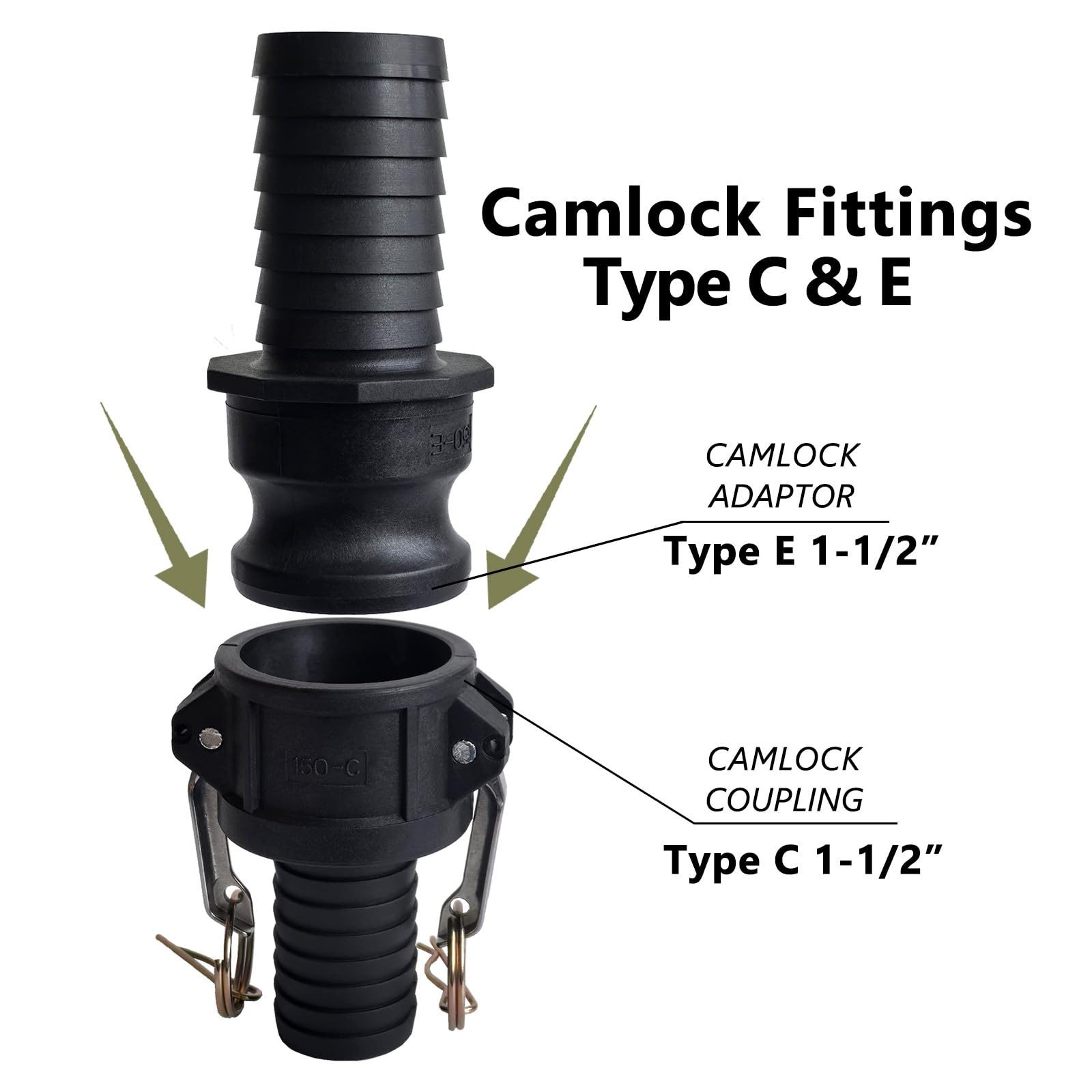

• TYPE C: Type C camlock (Cam and Groove) fitting has a 1-1/2” female camlock quick connect coupling on one side and a 1-1/2” hose shank (hose barb) on the other side. It is often used with Type E adapter
• TYPE E: Type E camlock (Cam and Groove) fitting has a 1-1/2” male quick connect coupling on one side and a 1-1/2” hose shank (hose barb) on the other side
• EASY TO INSTALL: Quick hose camlock couplings can connect/disconnect hose to tanks, pumps or other equipment in a faster way. It can be connected and disconnected without tools. Simply slide the cam lock adapter into the camlock coupling with normal hand pressure, then press the cam levers down. The working pressure of 1-1/2” is up to 150 psi
• WIDE APPLICATION: Camlock couplings provide a fast, easy and convenient method for connecting tanks, hoses and piping in a range of common fluid transfer related applications such as water pump and oil pump

Details: Camlock fittings are couplings that allow users to quickly connect or disconnect pipe, hose or tubing without tools. Cam and groove fittings are also known as camlock fittings or couplings. These couplings consist of a grooved male adapter and a female cam coupler with handles or arms.

1-1/2" Polypropylene Camlock Fittings Type C & Type E
The hose tail of this coupler fits 1-1/2" hoses.

Operation Tips:

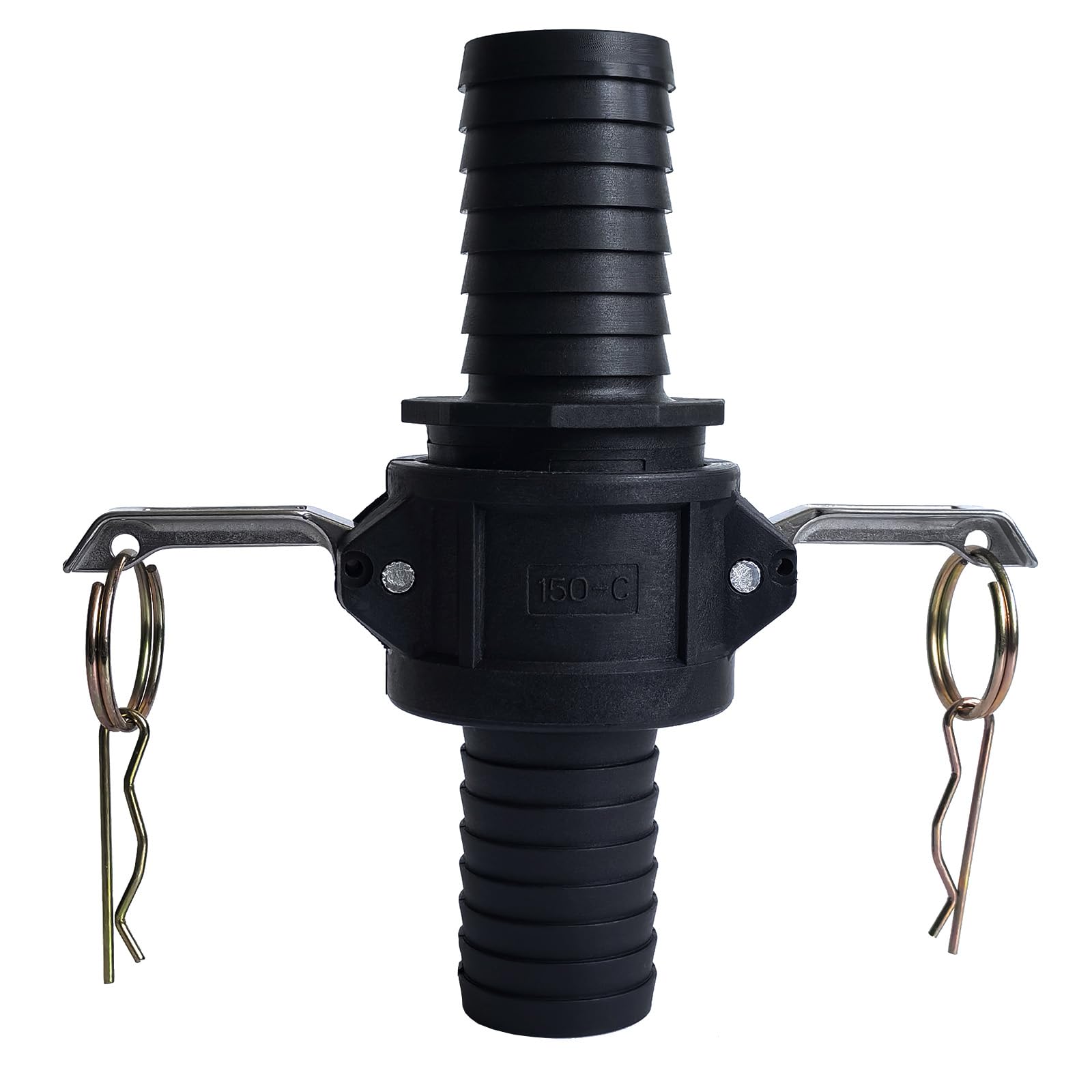

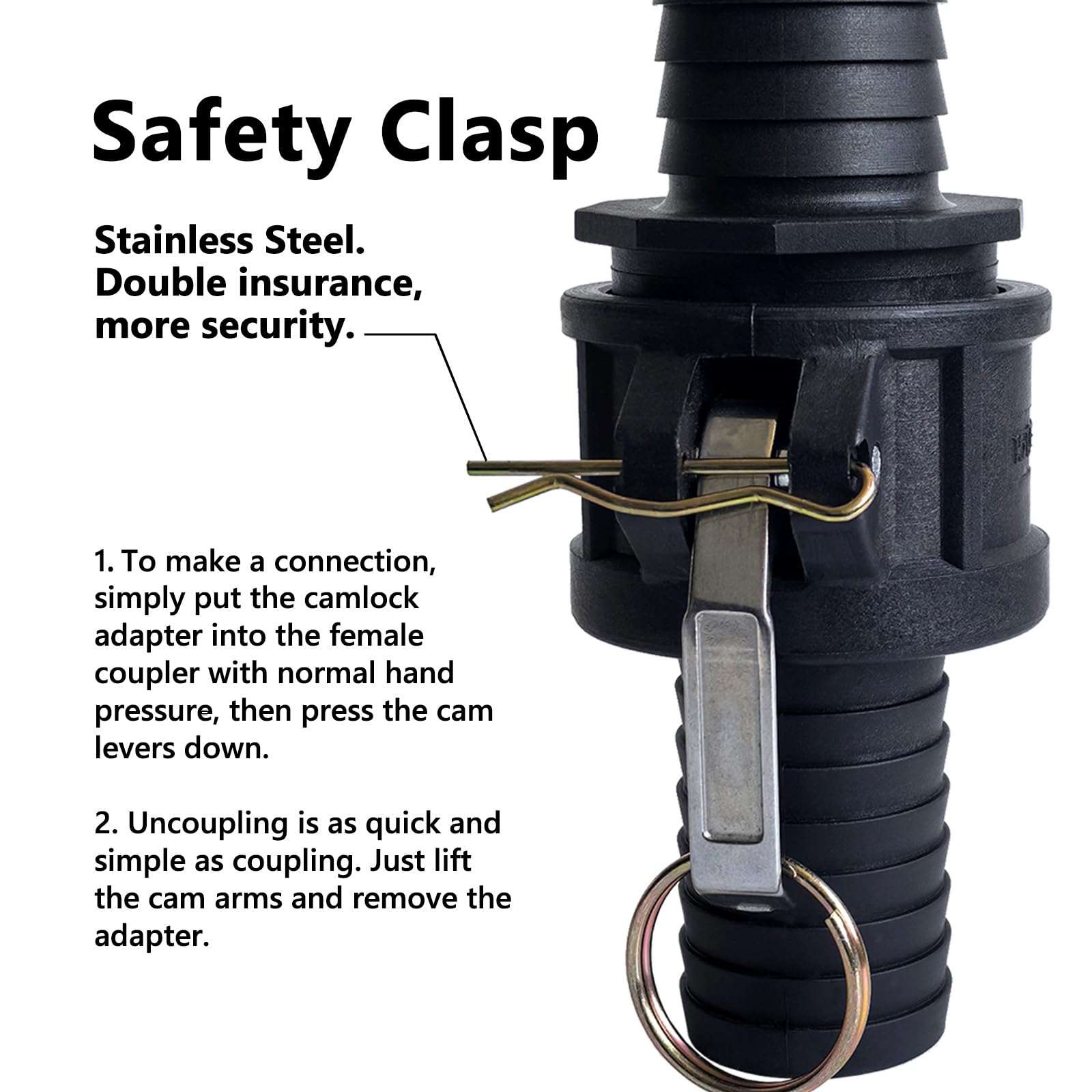

To make a connection, simply put the camlock adapter into the female coupler with normal hand pressure, then press the cam levers down.
Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.

Specification:
Type: 1-1/2" Type C and 1-1/2" Type E
Material: Polypropylene, Stainless Steel Handle
Maximum operating temperature: 185 degrees F
Maximum operating pressure: 150 psi

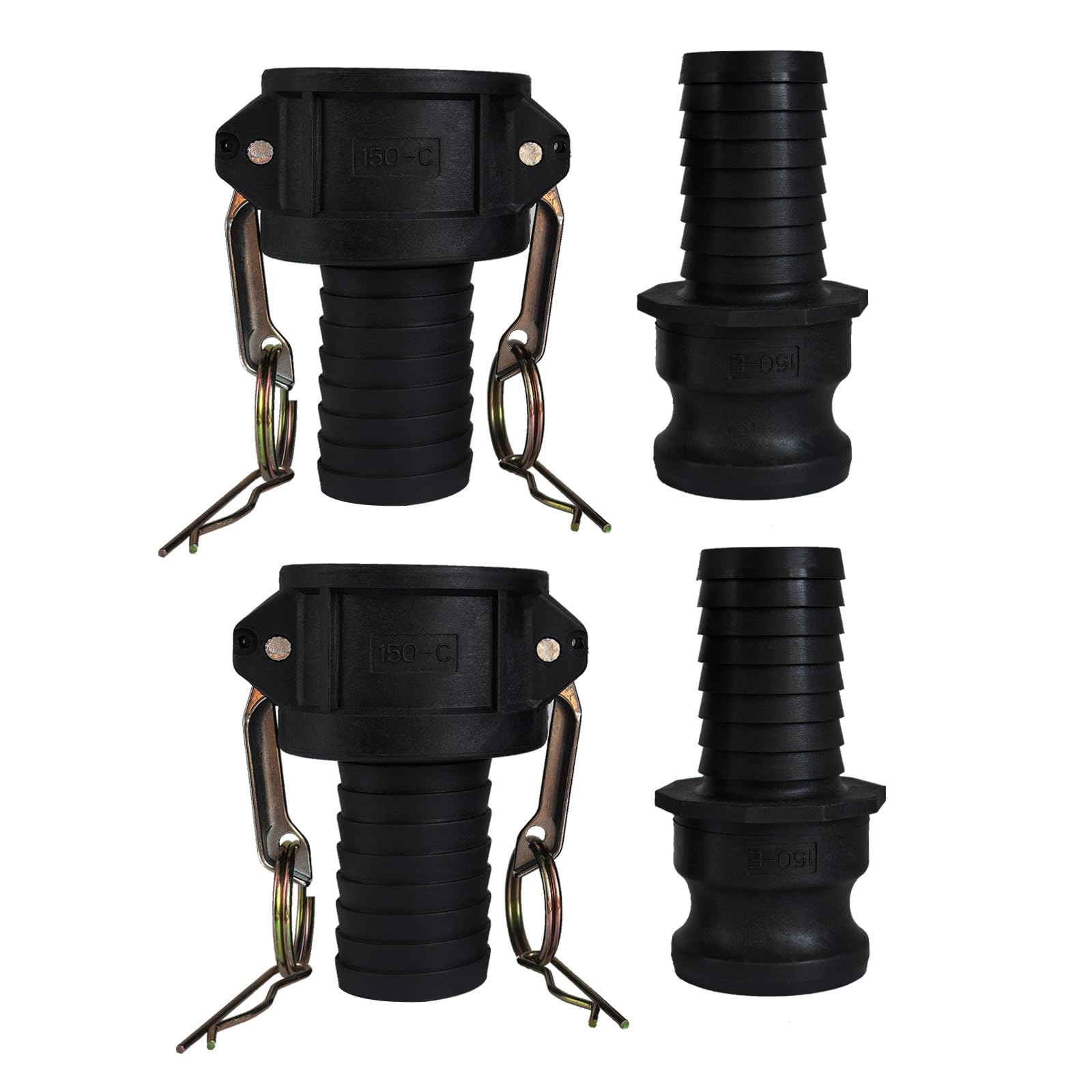

Package includes: 2 pc Type C Cam lock Fitting (1-1/2" Female Camlock x 1-1/2" Hose Shank) and 2 pc Type E Cam lock Fitting (1-1/2" Male Camlock x 1-1/2" Hose Shank)

Package Dimensions: 8.0 x 6.7 x 2.8 inches

model number: TLG0403
