Chibery 4 PCS Full Overlay Soft Close Hinges, Clip ON Plate for Easy Installation, 105 Degree, Silent Hydraulic, Frameless European Concealed Hinges for Kitchen Cabinet Door, Wardrobes, and Bookcases
SOFT CLOSE CABINET HINGE - Each cabinet hinge includes a built-in POM damper, Reduced closing speed prevents noises from the kitchen and prolongs the life of doors, cabinets, and hinges.

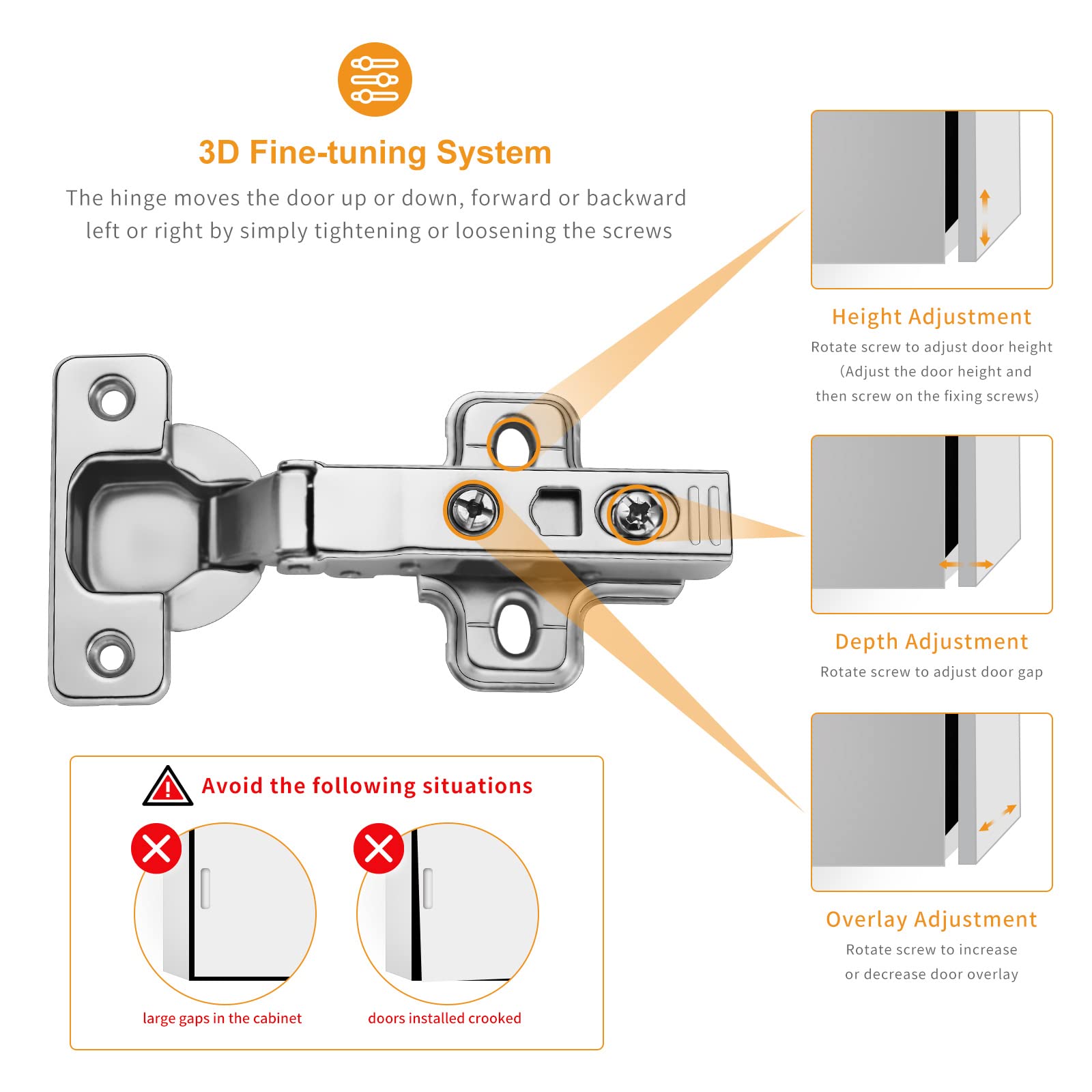

3D Adjustable Upgrade - 3D hinges can adjust the cabinet door(Vertical, Horizontal, Depth), which will make sure that your new custom-made cabinet doors don't sag, align properly, and will open and close smoothly.

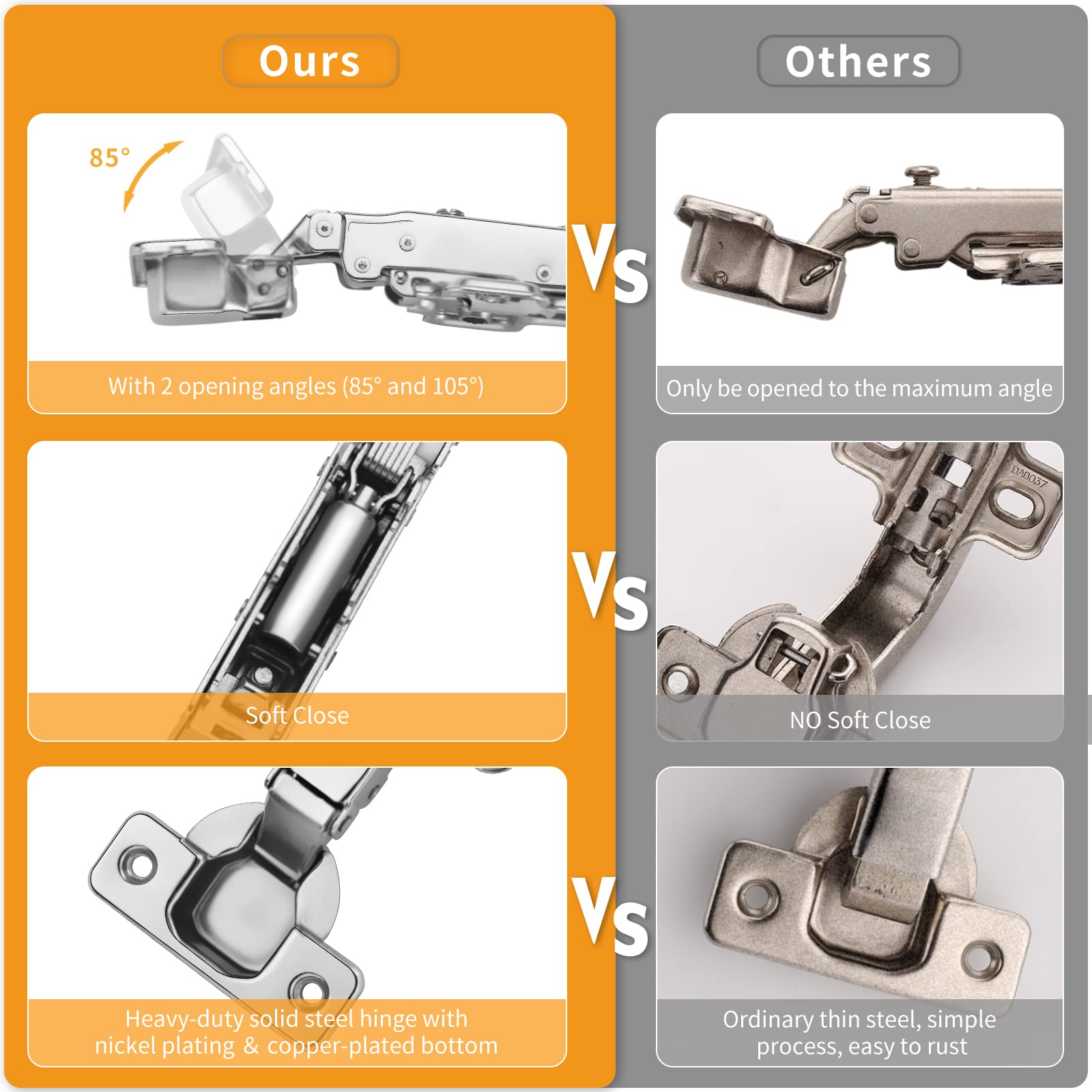

With 2 Open Angles (85° ＆ 105°) - The cabinet door hinges can stop at 85° or 105° when opened. This means that when your cabinet door is close to a wall, you don't need angle clips and you can still open it at different angles as needed.

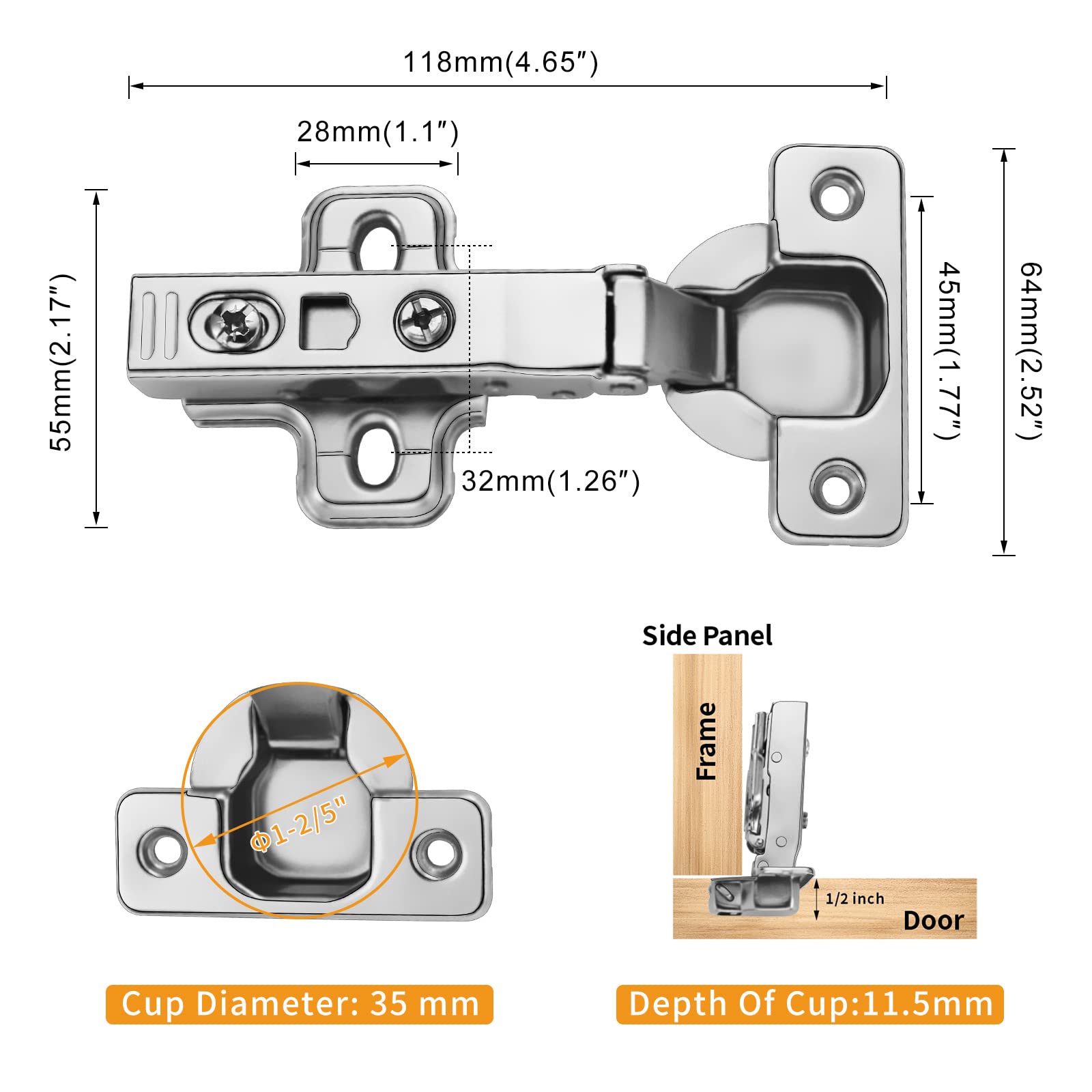

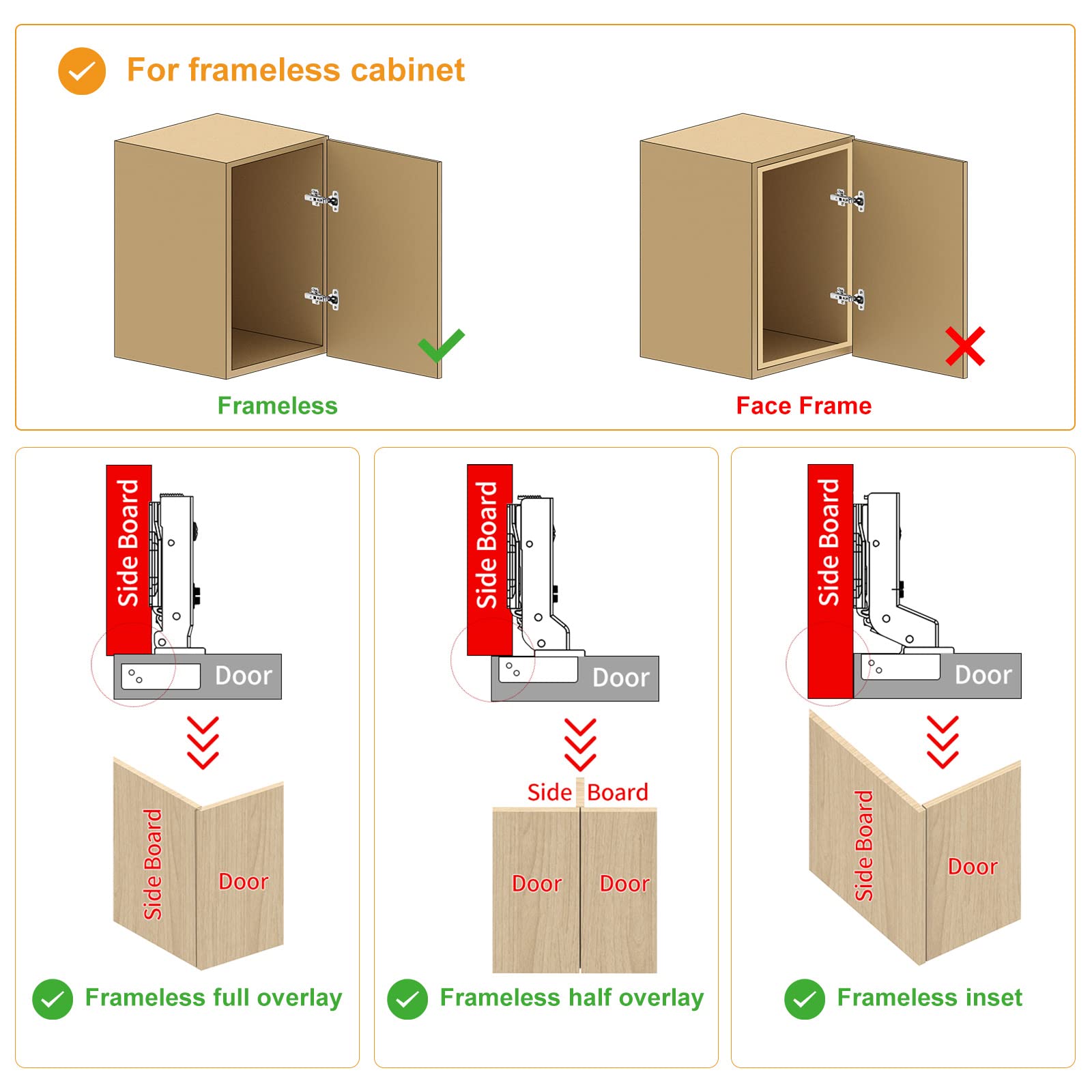

Installation Specification - Cup depth: 11.5mm; Screw holes distance: 45mm; Opening angle: 105 degrees; The range of door thickness is 14-22mm, suitable for most cabinet door styles. Comes with 4 self-tapping wooden screws to ensure a perfect fit. Each euro-style concealed kitchen cabinet hinge is fit for inset doors on frameless cabinets.
Buy with Confidence - Chibery hinges Conform to the standards and certifications of ISO9001, ISO14001, BHMA, KCMA, and SGS. The product can withstand more than 100,000 times opening and closing and more than 48 hours of salt spray test. If you encounter any problems in the process of use, please feel free to contact us, we will provide the most intimate service.
Package Dimensions: 7.2 x 4.3 x 2.2 inches
Part Number: CB-001
model number: 8f585005-b3c8-4c17-be17-a2b731dfa92d
