DSD TECH SH-RJ45K USB to RS485 Serial Cable with RJ45 Interface and Built-in FTDI chip

Brand: DSD TECH

Color: Blue

Features:

• DSD TECH: DSD TECH focuses on the development of communication connection devices such as USB/Serial/Wireless. We have served more than 100,000 customers in Europe, North America and Japan
• USB to RS485: With this USB to RS485 cable, your computer can establish a connection with industrial control devices in an RS485 network.The RJ45 connector leads to the A+ and B- pins.
• RJ45 connector: Unlike other USB to RS485 adapters, it uses the RJ45 connector, which is smaller and designed for industrial equipment. You don't need to use a screwdriver to tighten the connector.

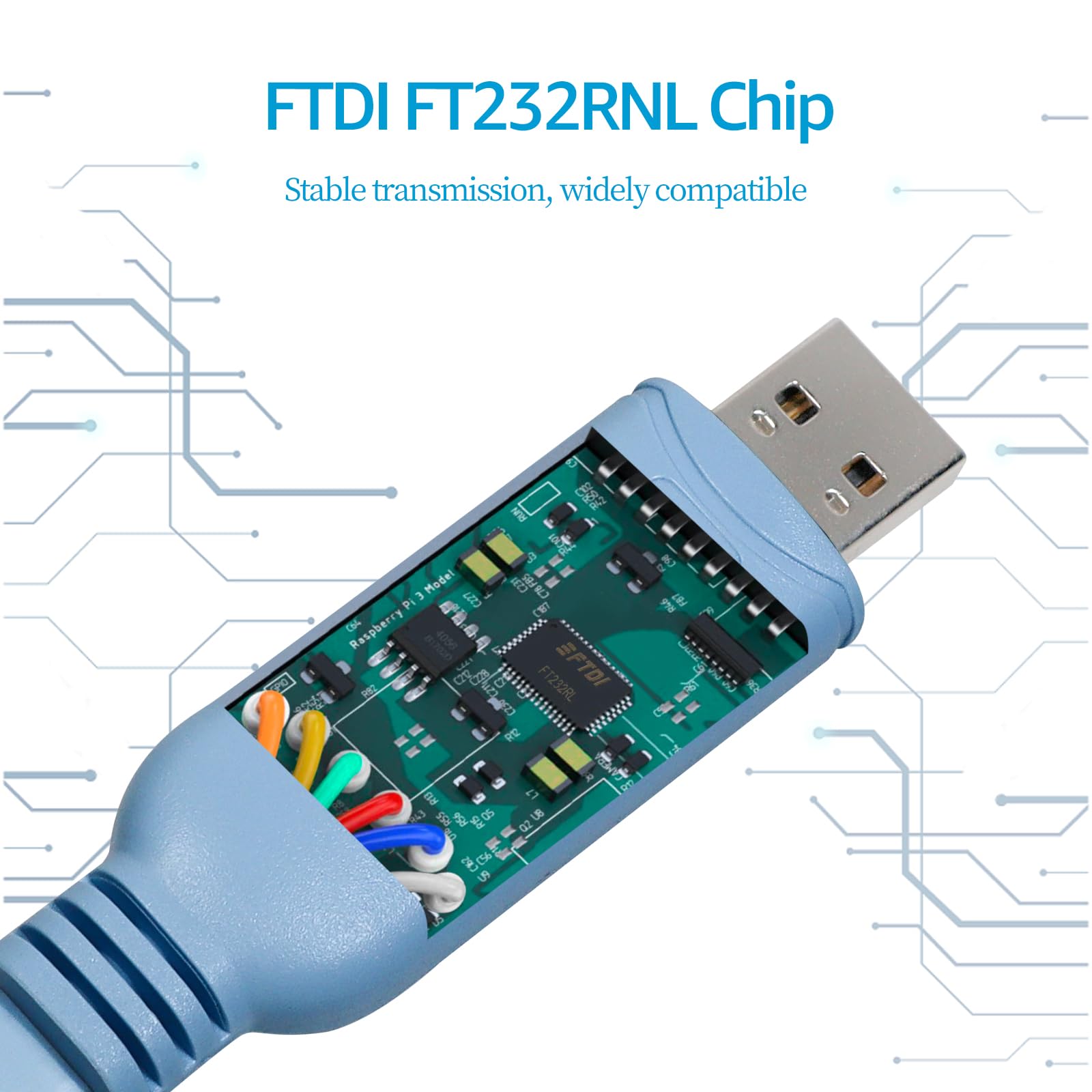

• FTDI FT232RNL Chip：Based on FTDI FT232RNL chip with high stability and advertised compatibility, compatible with Windows 7, 8, 10, 11, Linux OS and Mac OS operating systems,Ideal for industrial control
• Customer Support: DSD TECH provides permanent technical support and 1 year product replacement service for this USB to RS485 Serial Cable. All questions will be answered within 1 working day.

Details: This USB to RS485 cable features the usual RJ45 connector and is designed for certain industrial devices. You don't need to use a screwdriver to tighten the plug. Please make sure the order of wiring matches your device before use. If not, you can contact DSD TECH for personalisation.

Product features:
Model: SH-RJ45K
Main chip: FTDI FT232RL

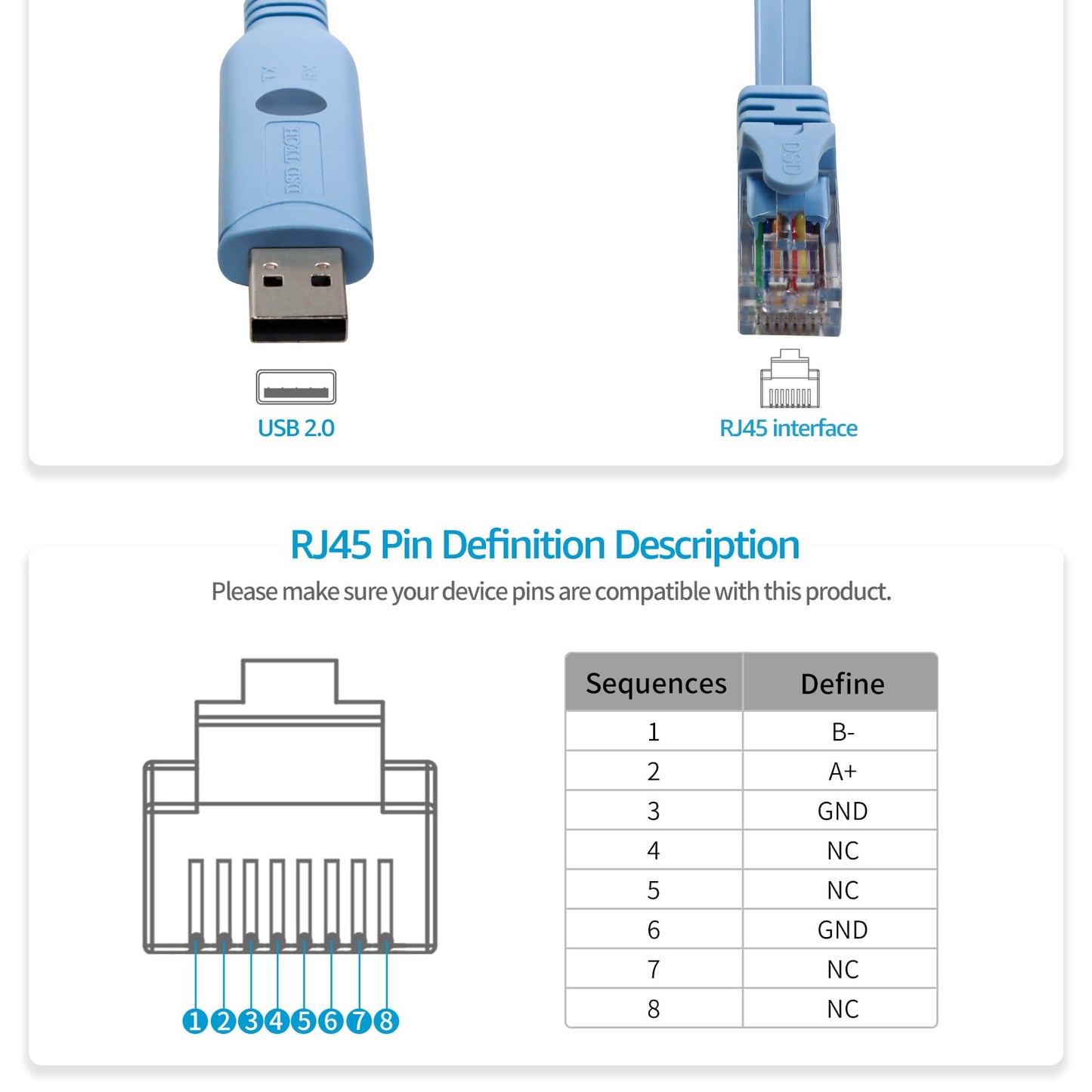

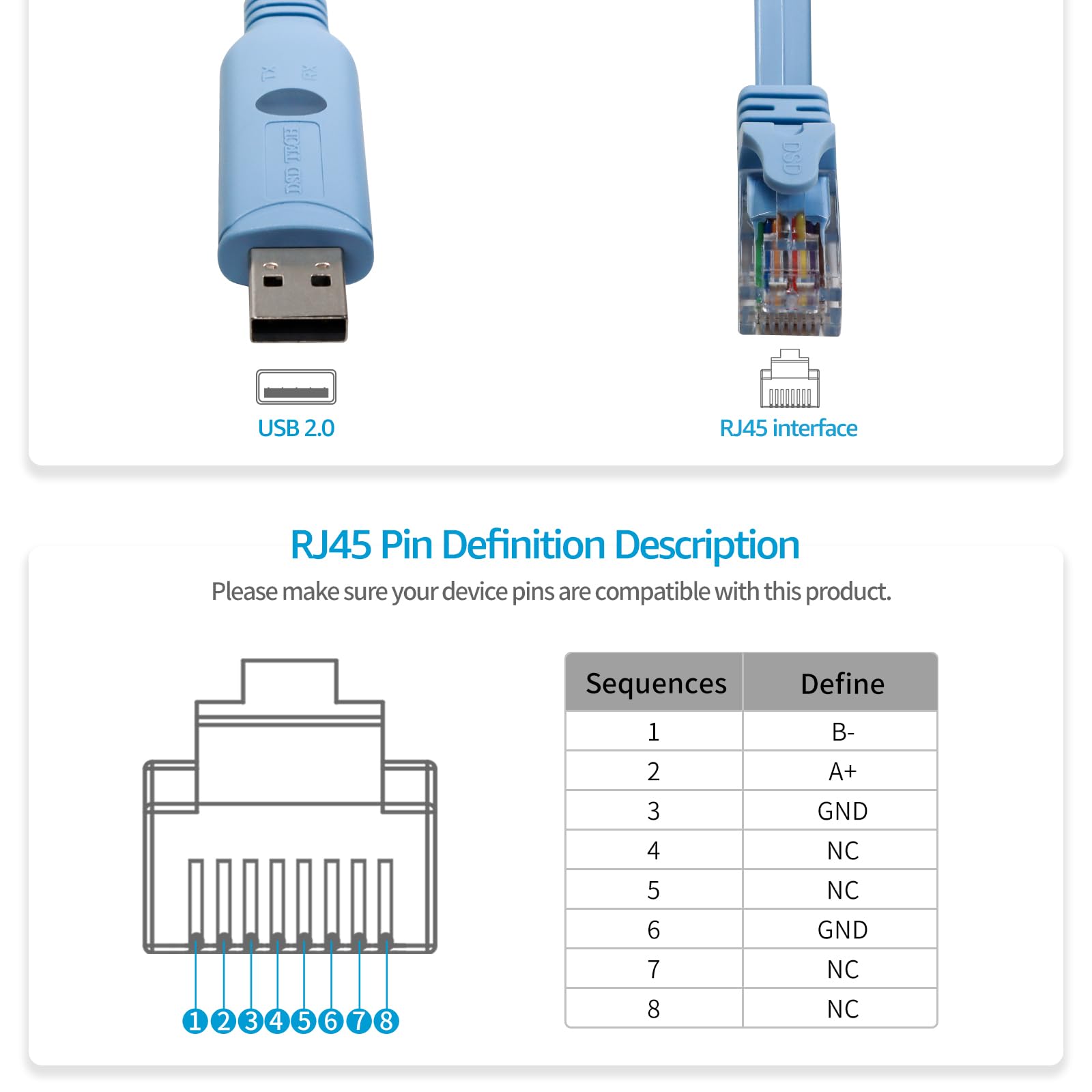

Pin definition: 1, B-2, A+ 3, GND 4, NC 5, NC 6, GND 7, NC 8, NC.
Communication Protocol: RS485
Connectors: USB A 2.0, RJ45
Maximum speed: 2 Mbps

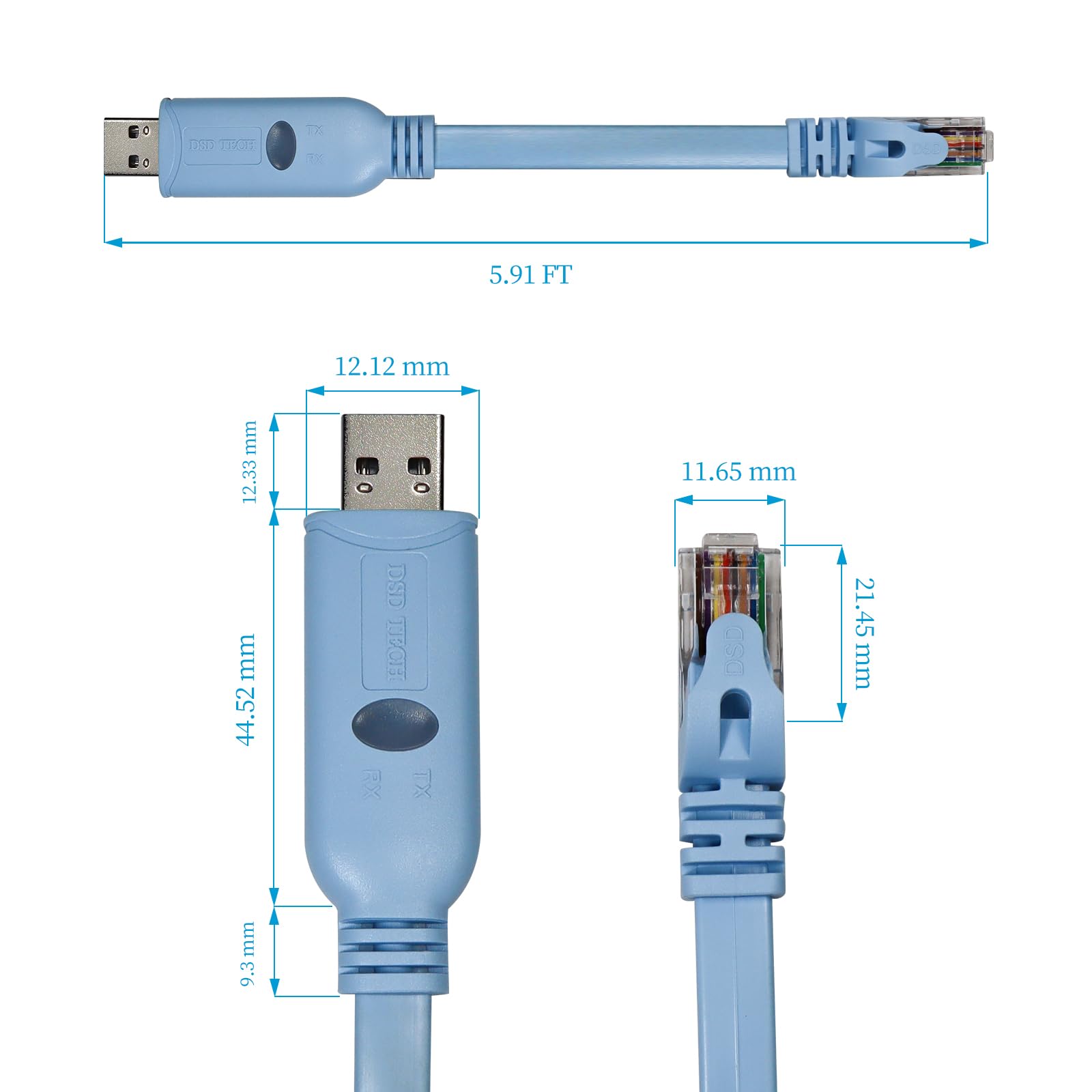

Cable length: 1.8m

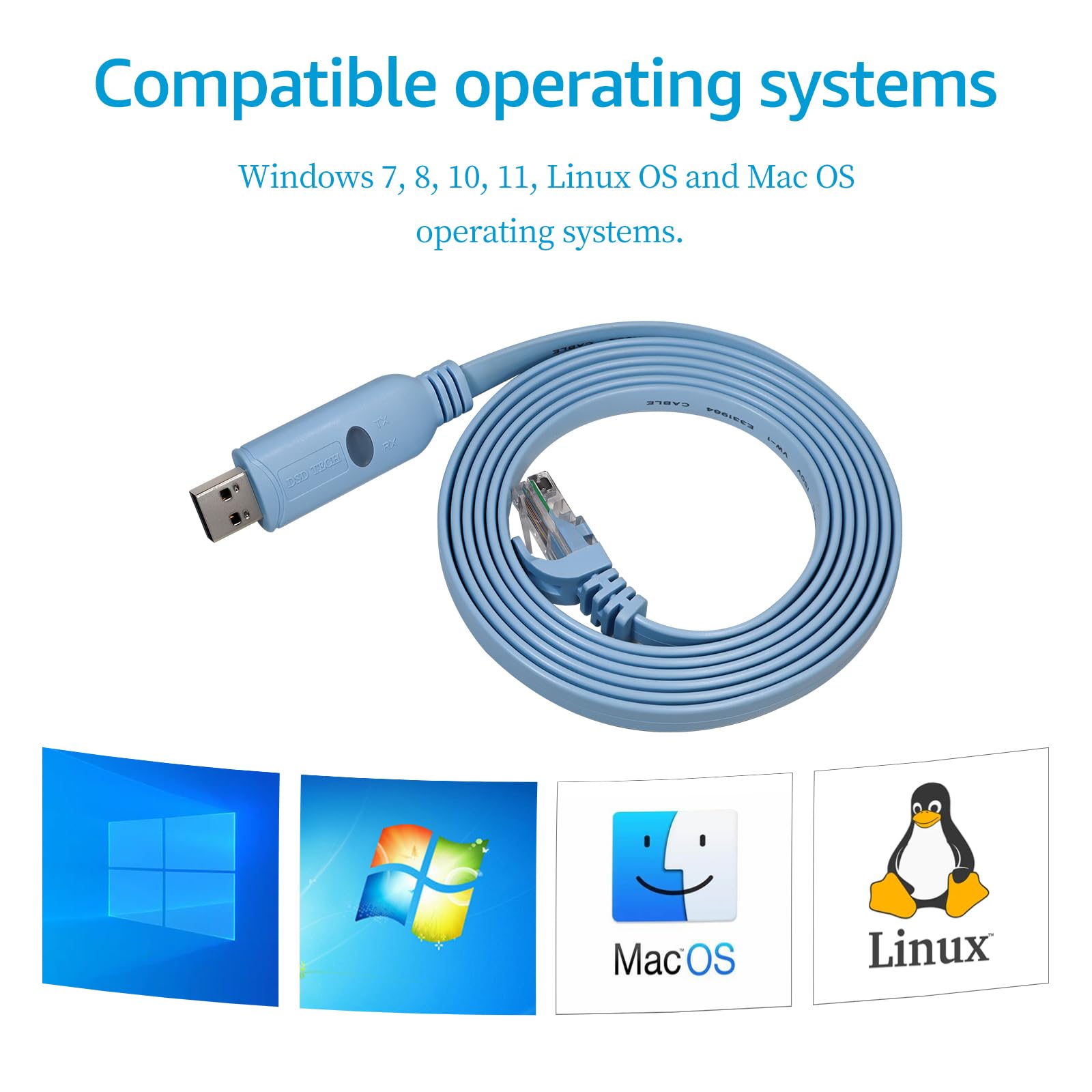

List of supported systems:
Windows 7, 8, 10, 11
2. Various operating systems Linux and Mac OS.

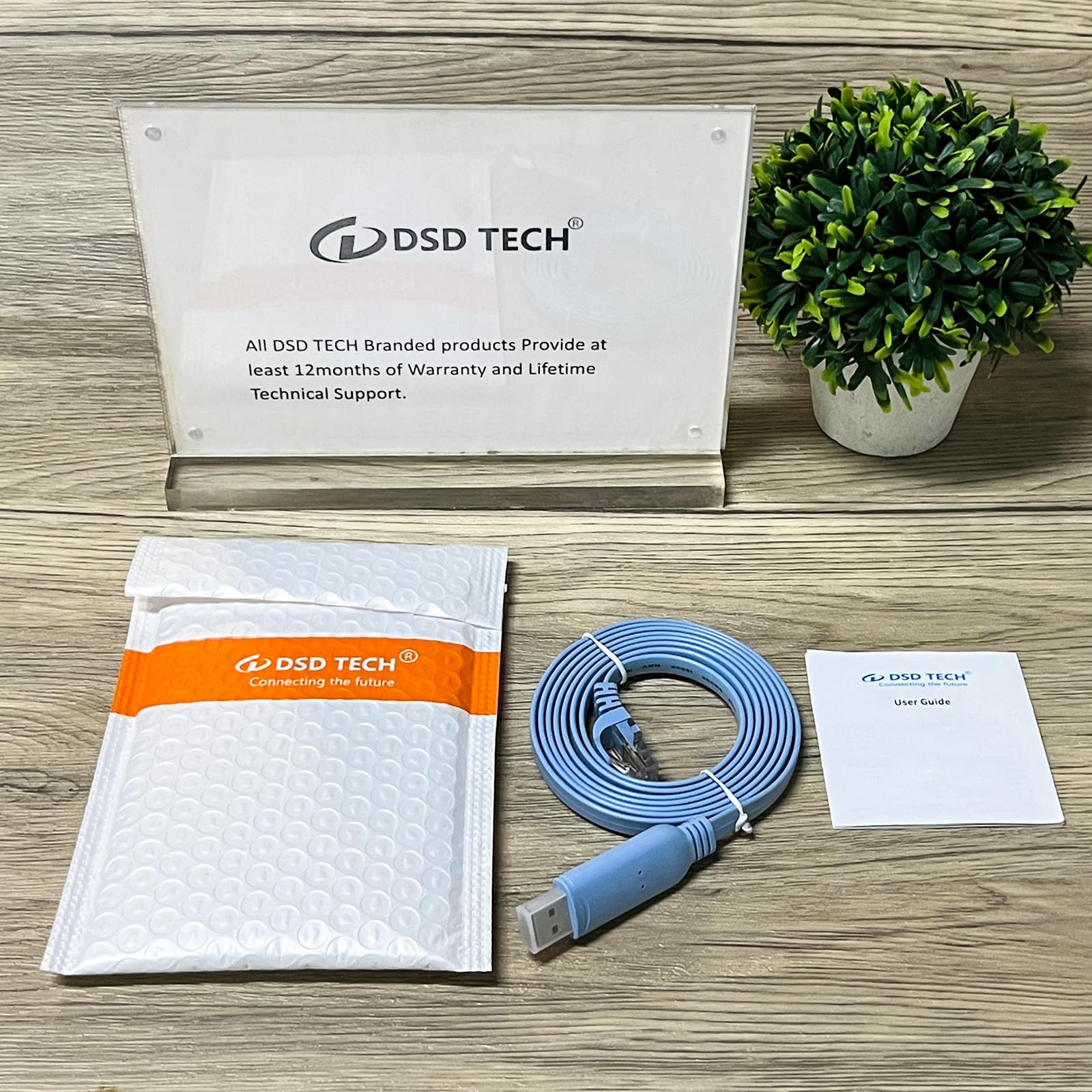

Package includes:
1 x RS485 USB to RJ45 Serial Cable
1 x user manual (EVT. 1 x user manual (may not English language not guaranteed).

After sales service:
Provides permanent technical support and a one-year product replacement service. All questions will be answered for you within one business day.

EAN: 0794251081160

Package Dimensions: 6.9 x 5.0 x 0.8 inches

Part Number: SH-RJ45K

model number: SH-RJ45K
