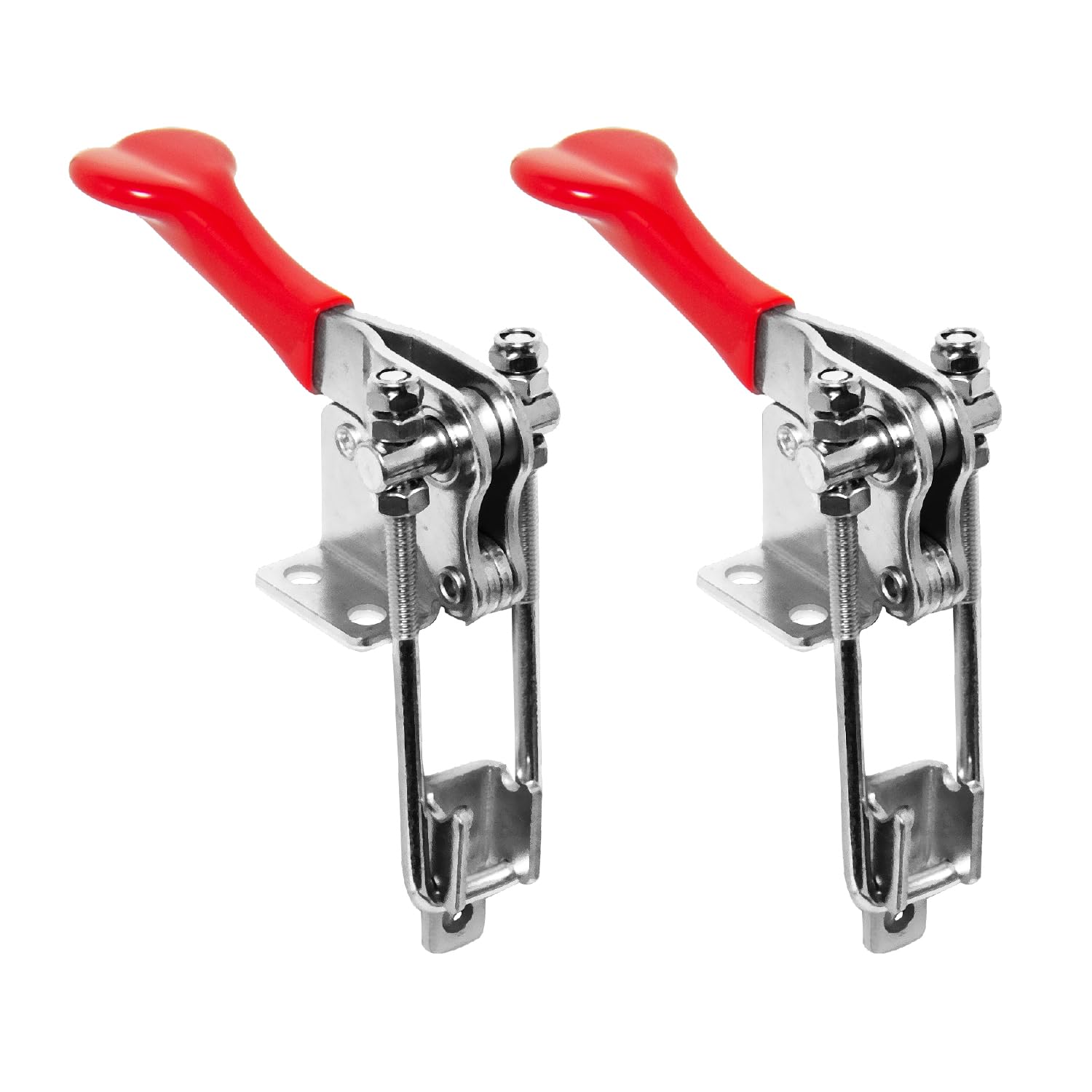

INCLUDES: (2) Toggle Latch Clamp complete with Adjustable U Bolt (Type-334)
FUNCTION: For use on 90 degree applications where a vertical or corner latch is required , also works with 71416 Toggle Clamp Mounting Plate & POWERTEC T Track for woodworking projects (Note: for t-tracks that accept 1/4” hex head bolts and 5/16" t-bolts)

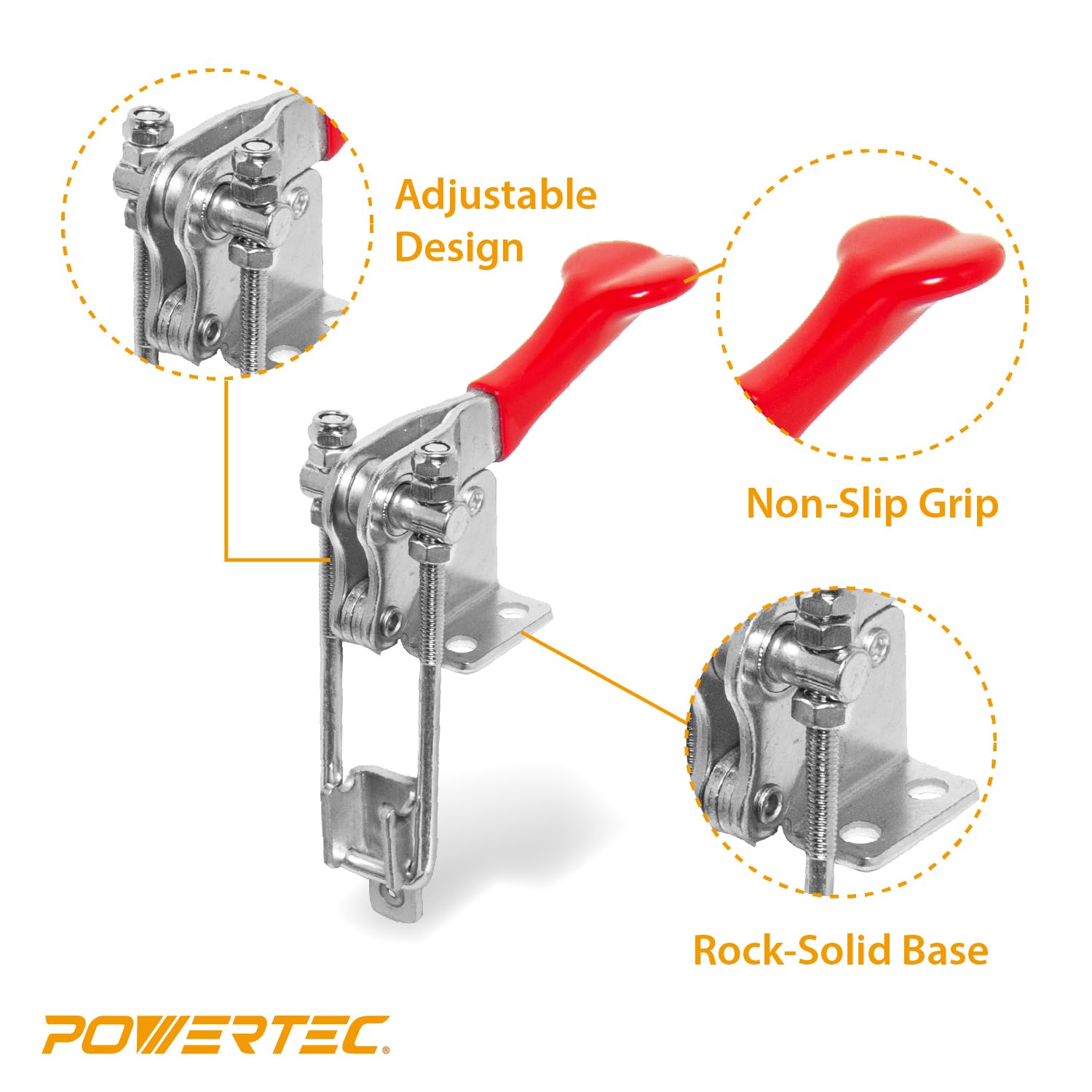

PREMIUM DESIGN: Features a red anti-slip vinyl hand grip and is constructed out of cold rolled steel - wisely coated with high quality zinc plating for anti-rust, corrosion free and long lasting durability

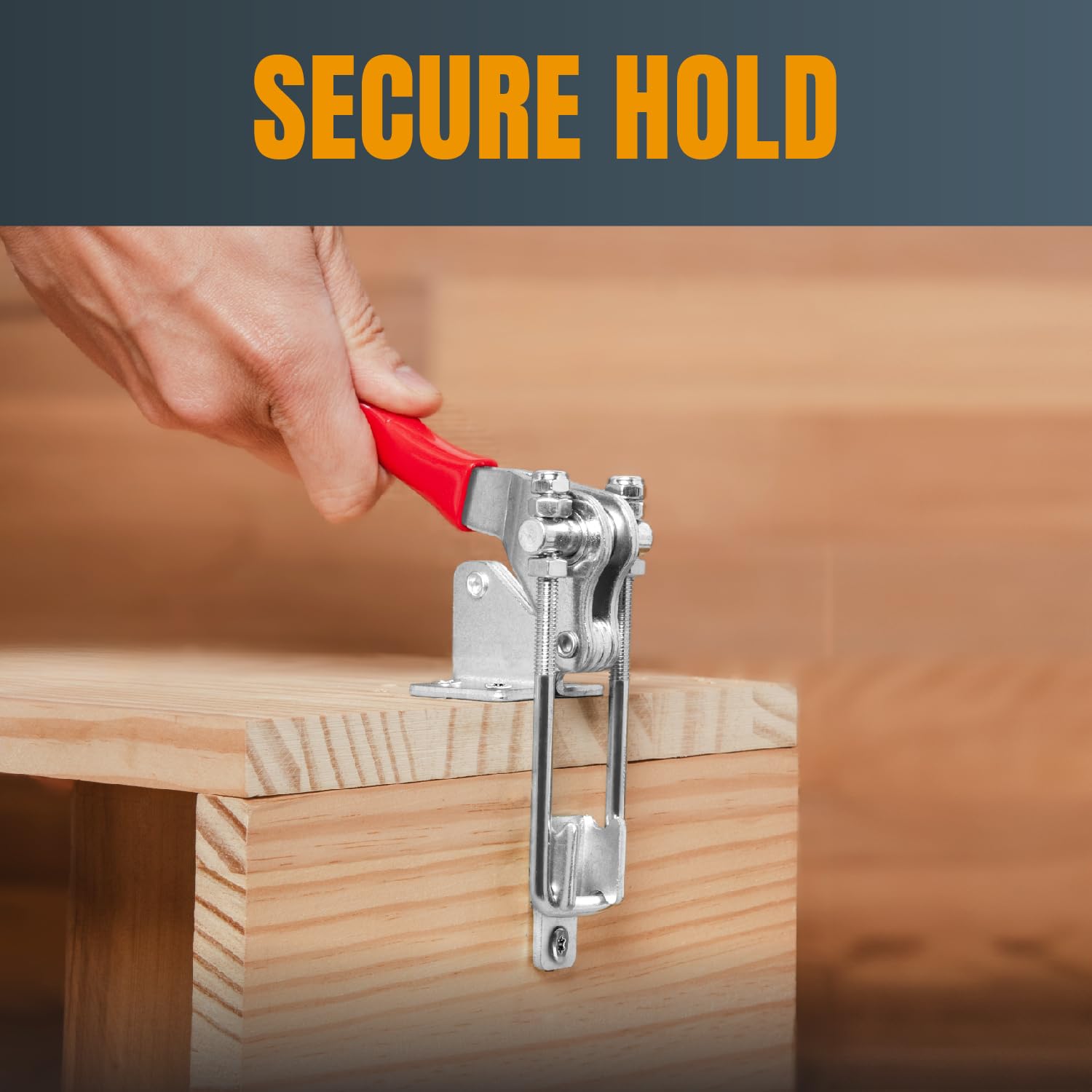

HEAVY DUTY: Toggle latch locking design allows you to instantly lock and release your workpiece while ensuring that you can accurately adjust the mounting distance and clamping force
HOLDING CAPACITY: 454 kg /1000 lbs

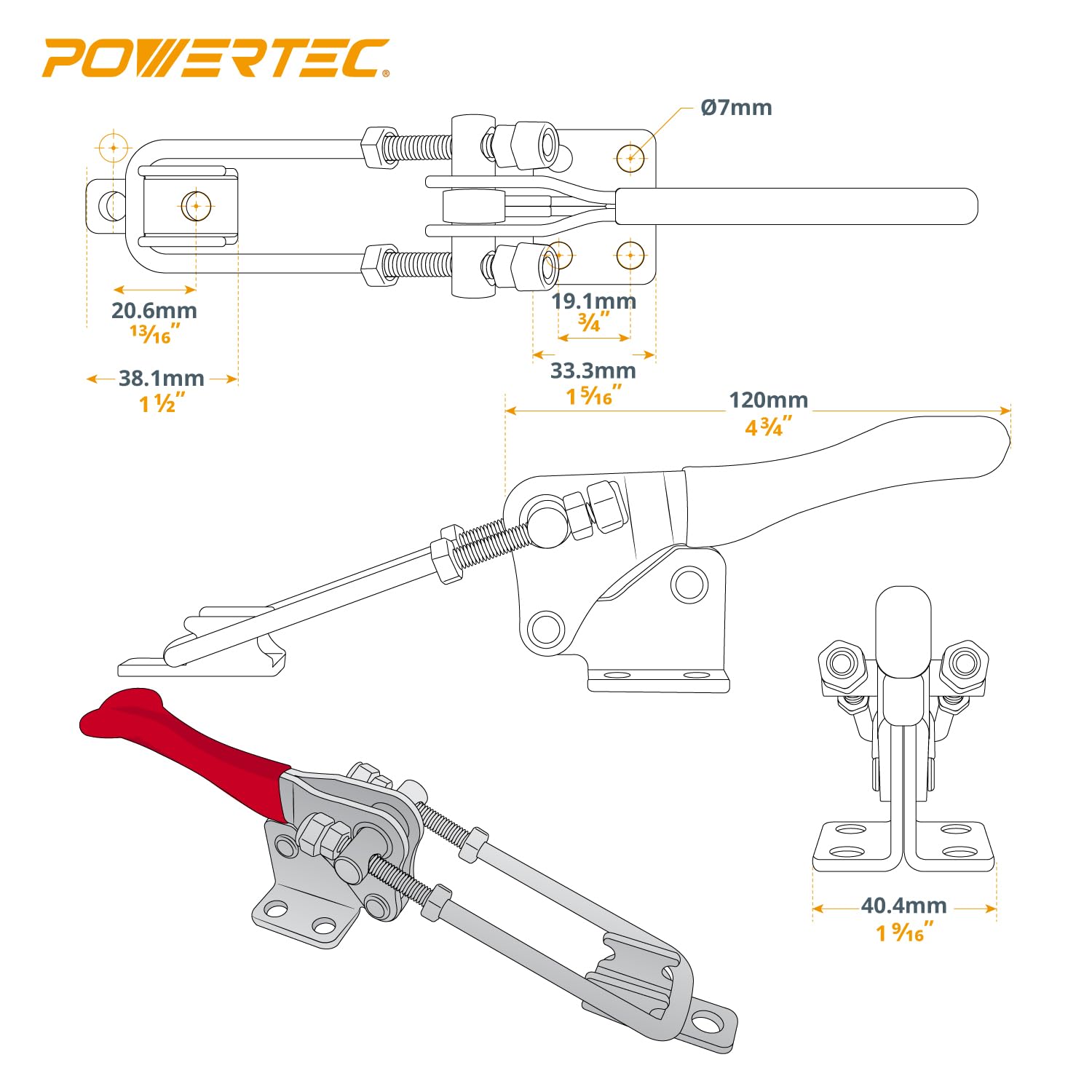

SPECS: Clamp base: 1-5/16” x 1-9/16”| Mounting holes: 1/4” spaced 3/4” x 1-1/16” apart| Latch pate: 11/16” x 1-1/2”| Mounting holes: 1/4” spaced 3/4”. 15/64” U bolt: 1-1/4” x 4-1/2”. Threaded U bolt adjusts 1”| Clamp height when clamped: 2-3/4”| Length of base, including handle, when clamped: 4-7/8”
