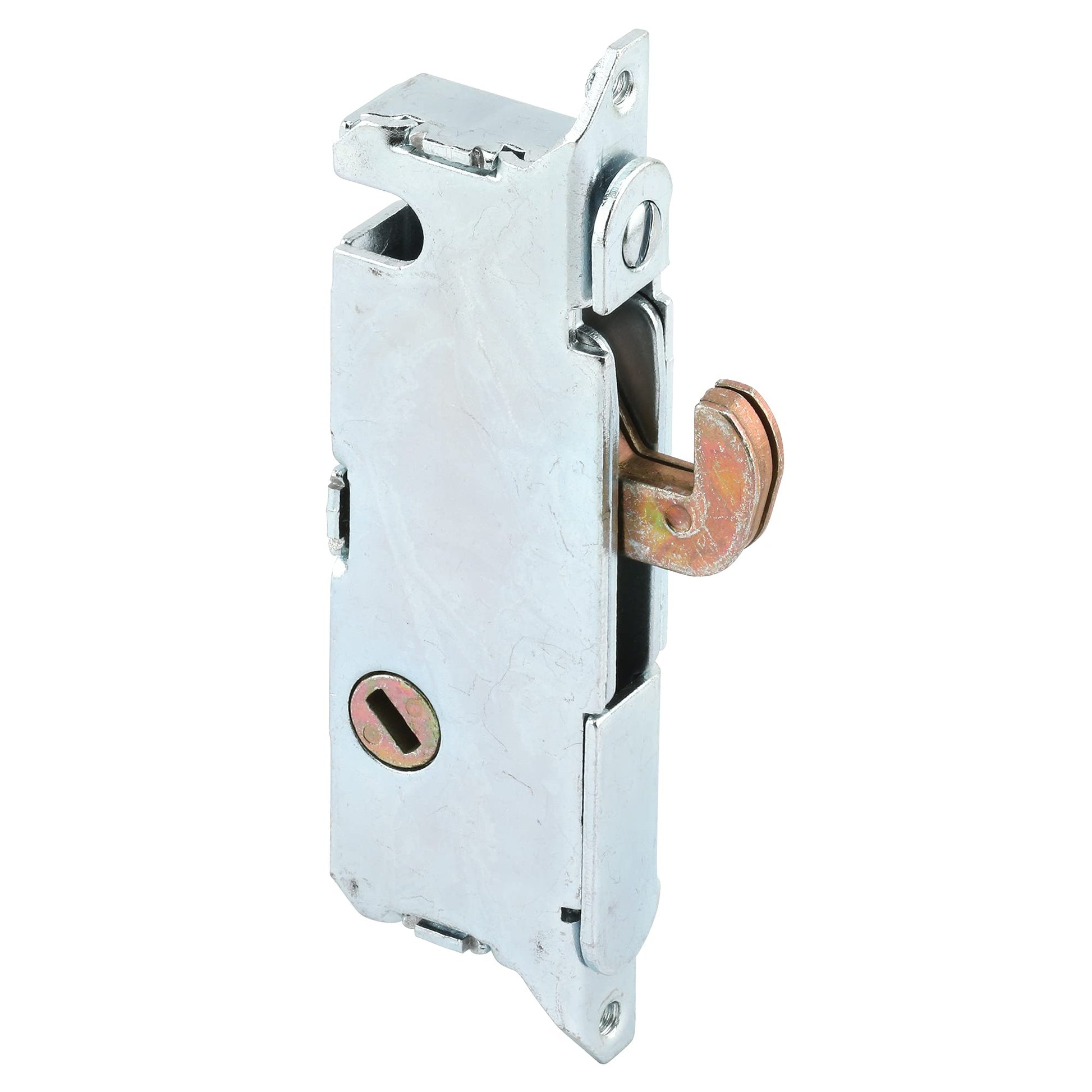

Prime-Line Products E 2014 Sliding Door Round Face Mortise Lock with 45-Degree Keyway

Brand: Prime-Line

Color: Steel

Features:

• Mortise installation into door stile; Hole Center to Center: 3-11/16"
• 45° Keyway when hook is in locked position
• Round end face plate

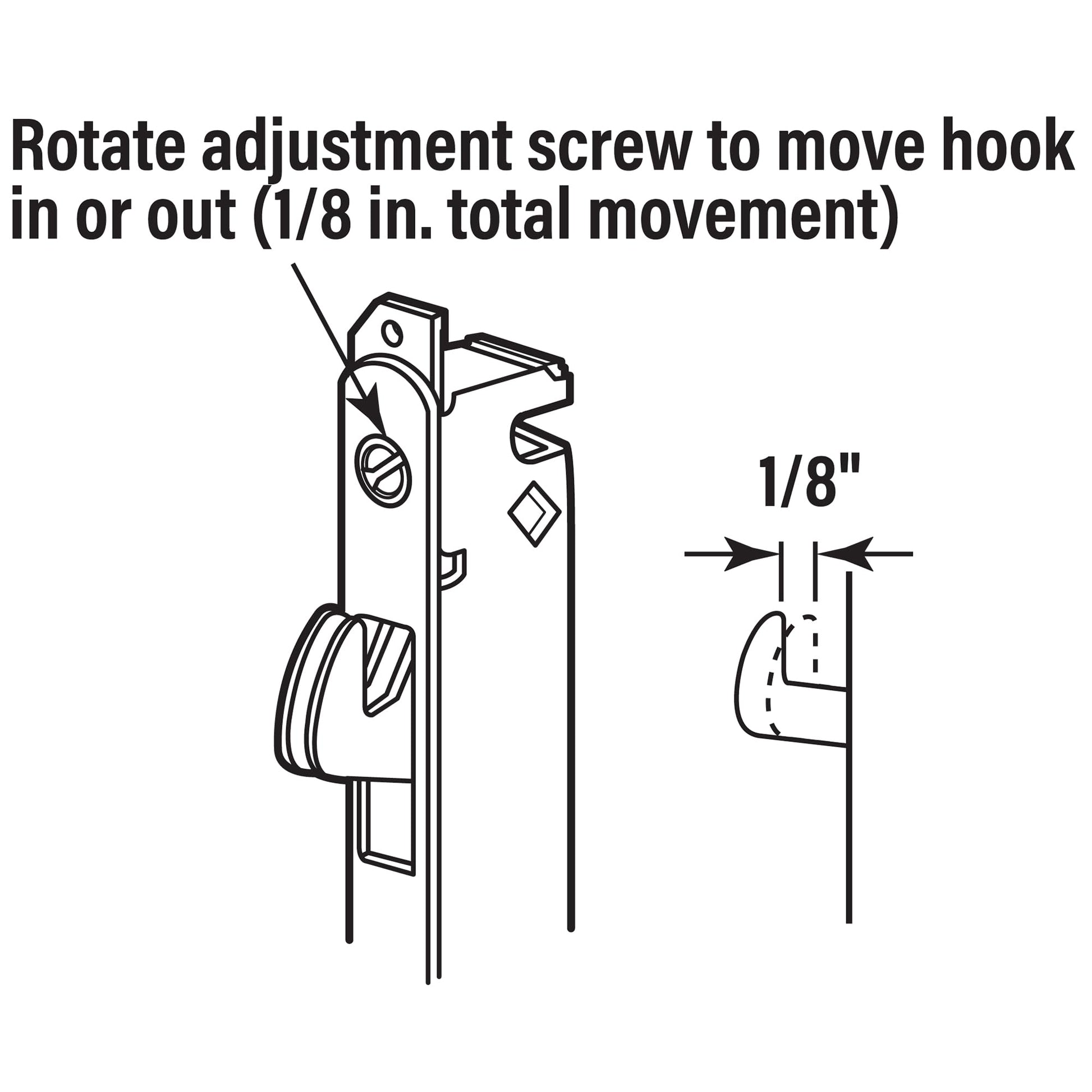

• With adjustable hook projection
• Fits doors using W&F manufactured handles

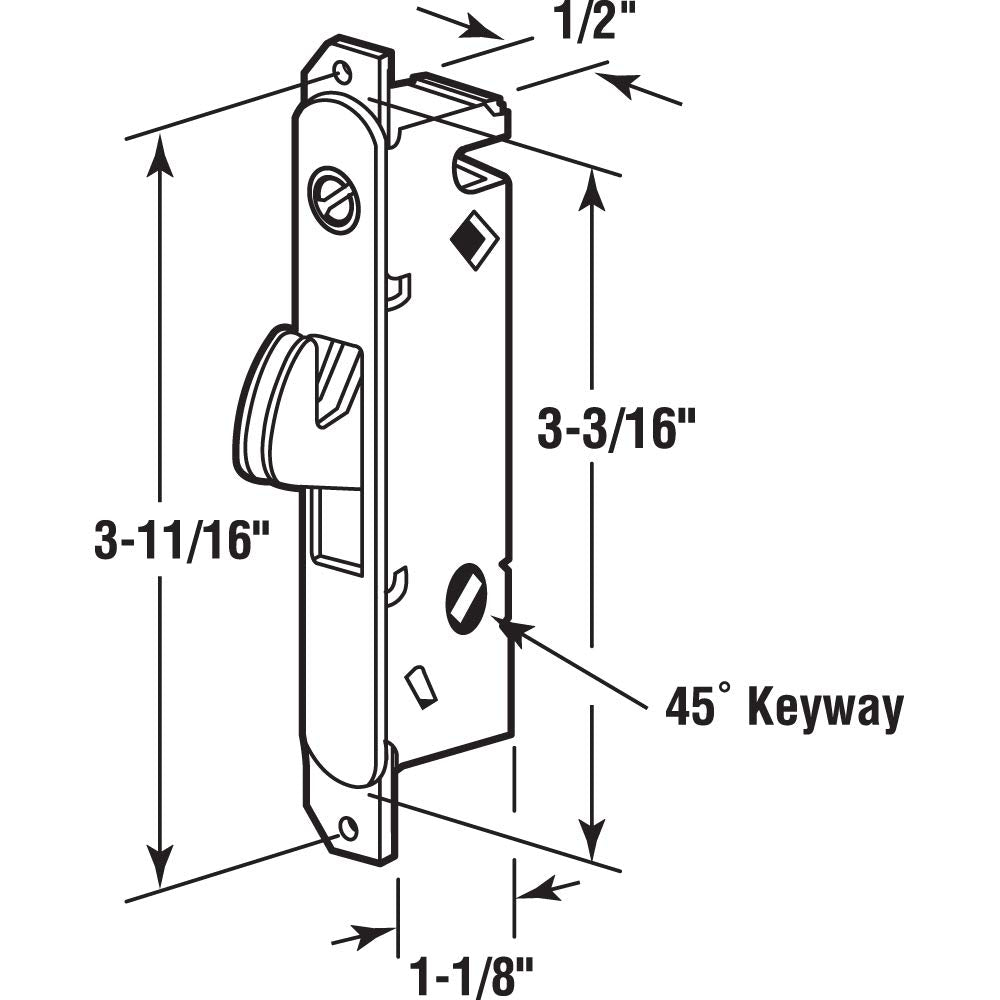

• For further dimensional information, please see the line drawing

EAN: 0049793020147

Package Dimensions: 7.3 x 3.7 x 0.8 inches

Binding: Tools & Hardware

Part Number: E 2014

model number: E 2014
