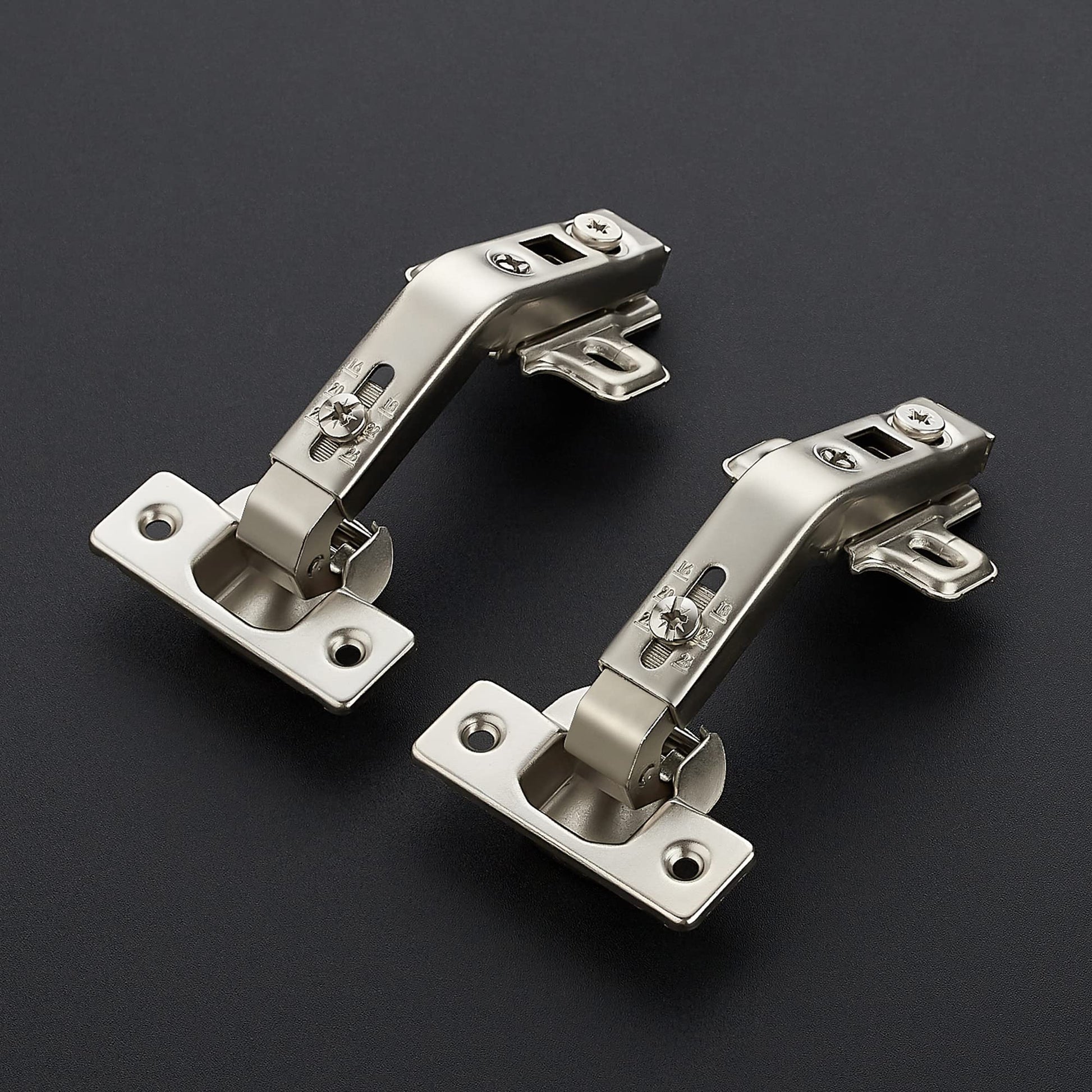

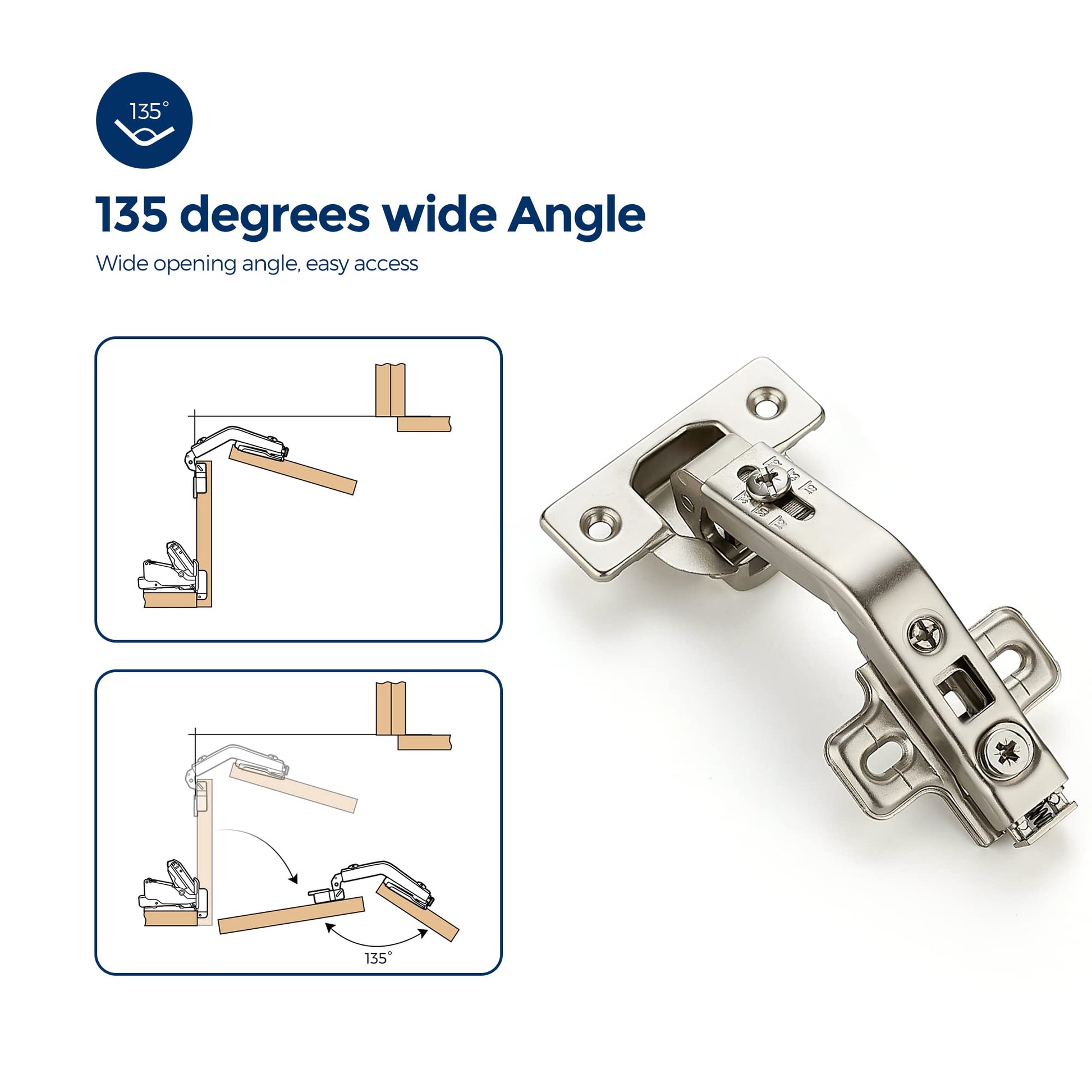

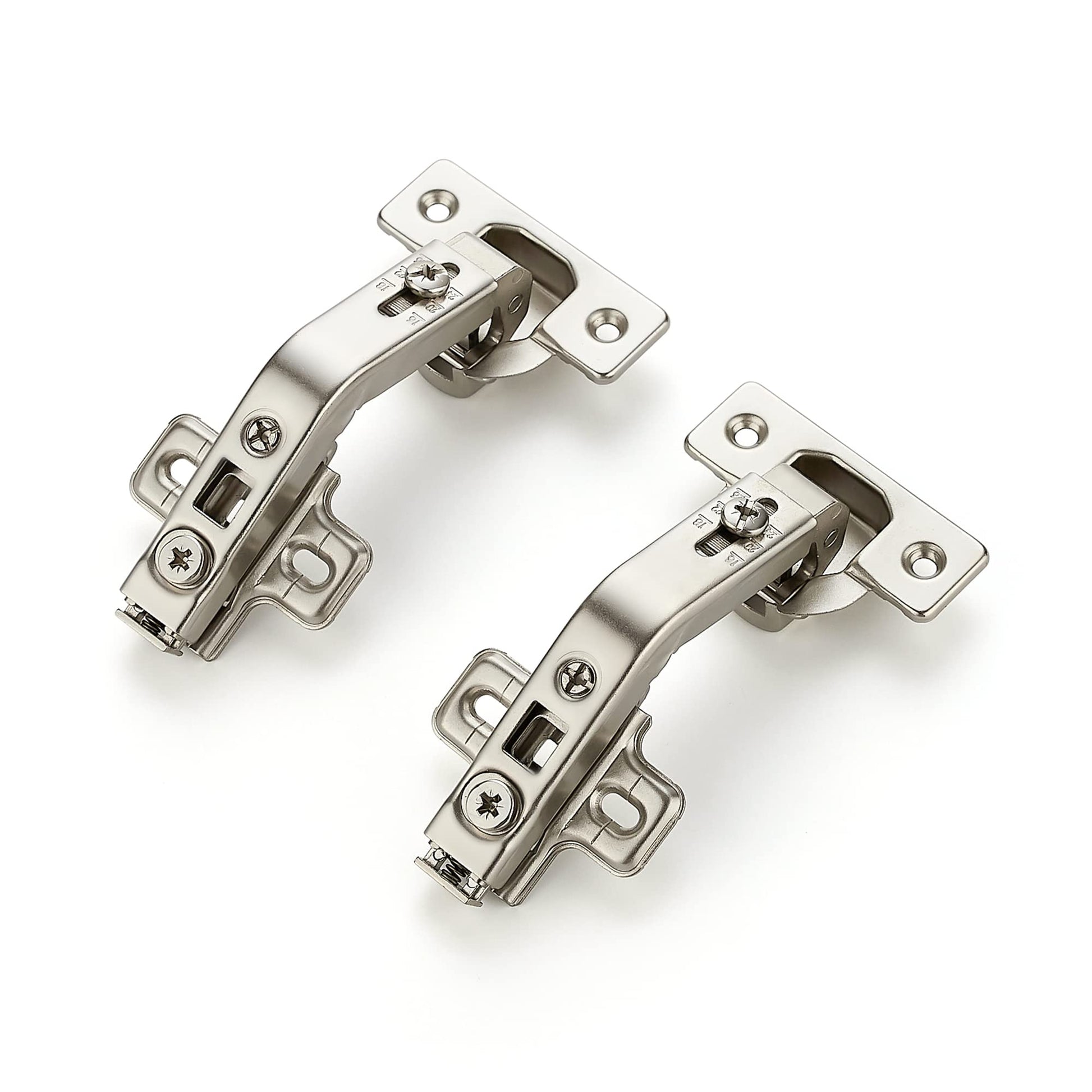

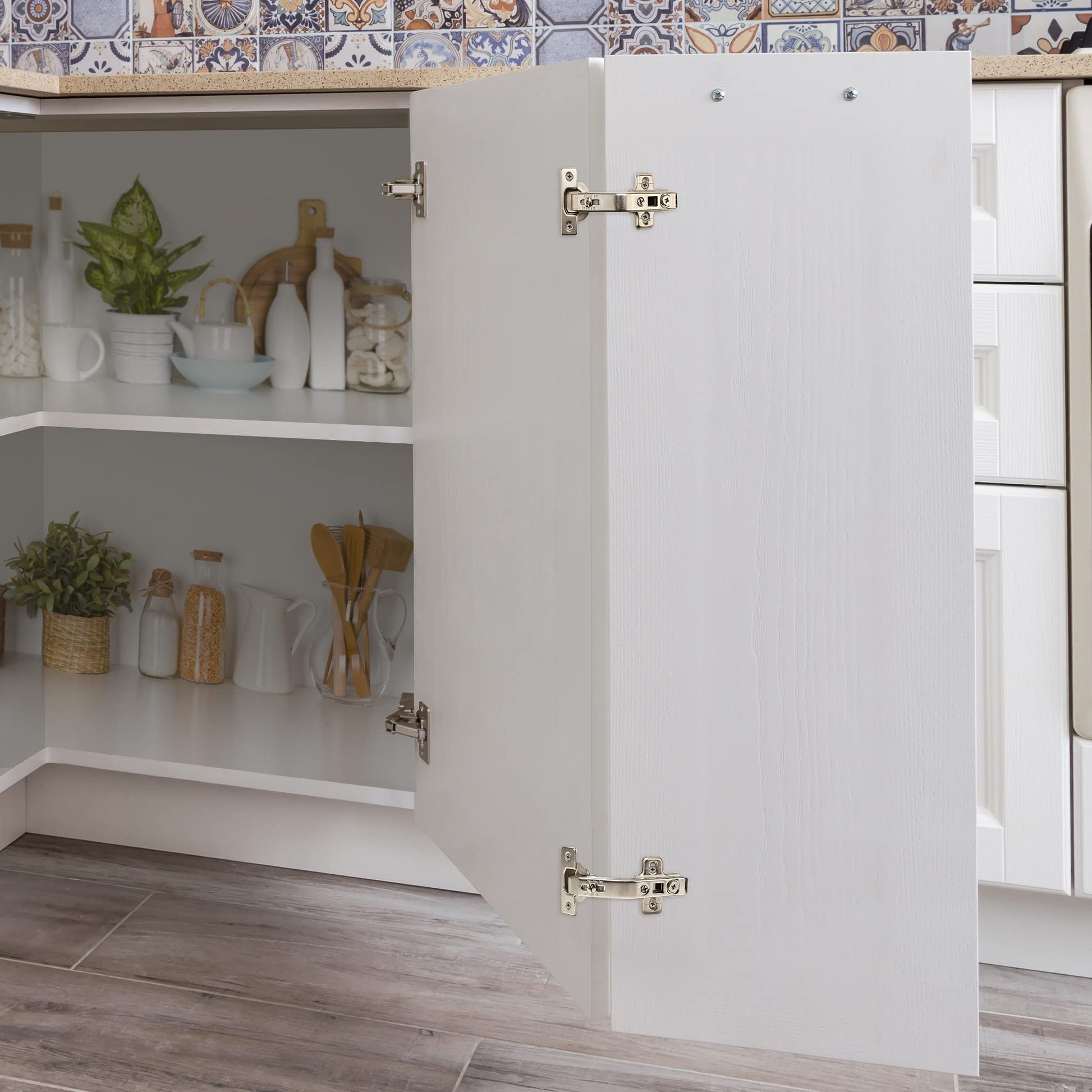

Opening Angle: 135-degree concealed hinge for bi-fold doors on corner kitchen cabinets Maximizes storage space in blind corners Note: Use 135-degree hinges to attach the bi-fold door to the frame Allows easy access to the corner

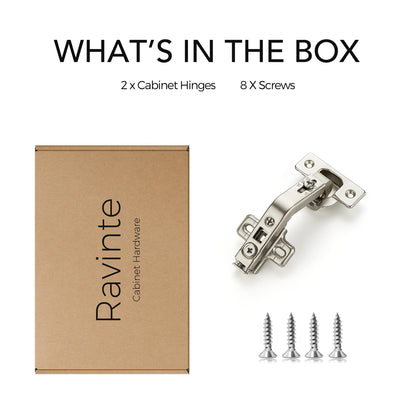

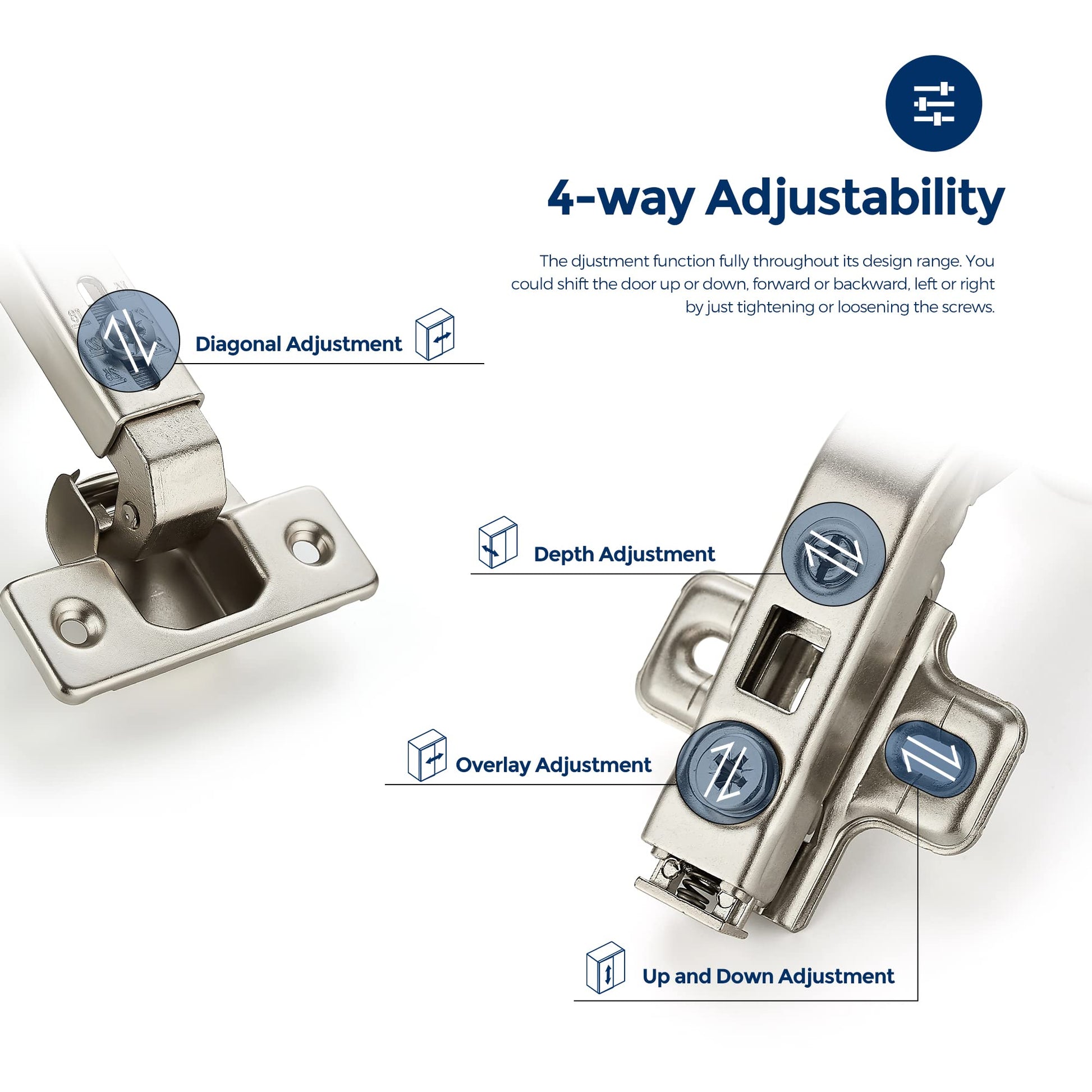

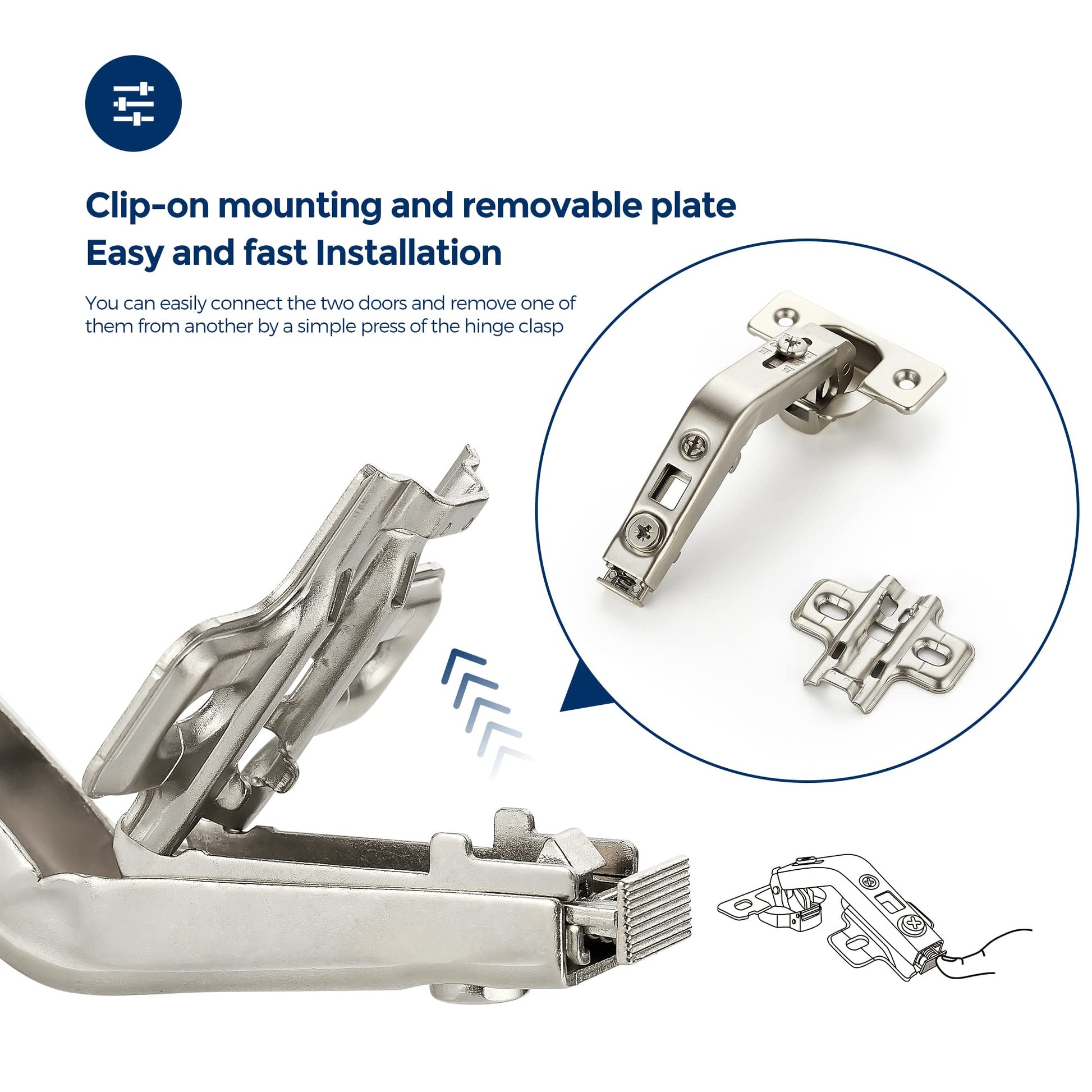

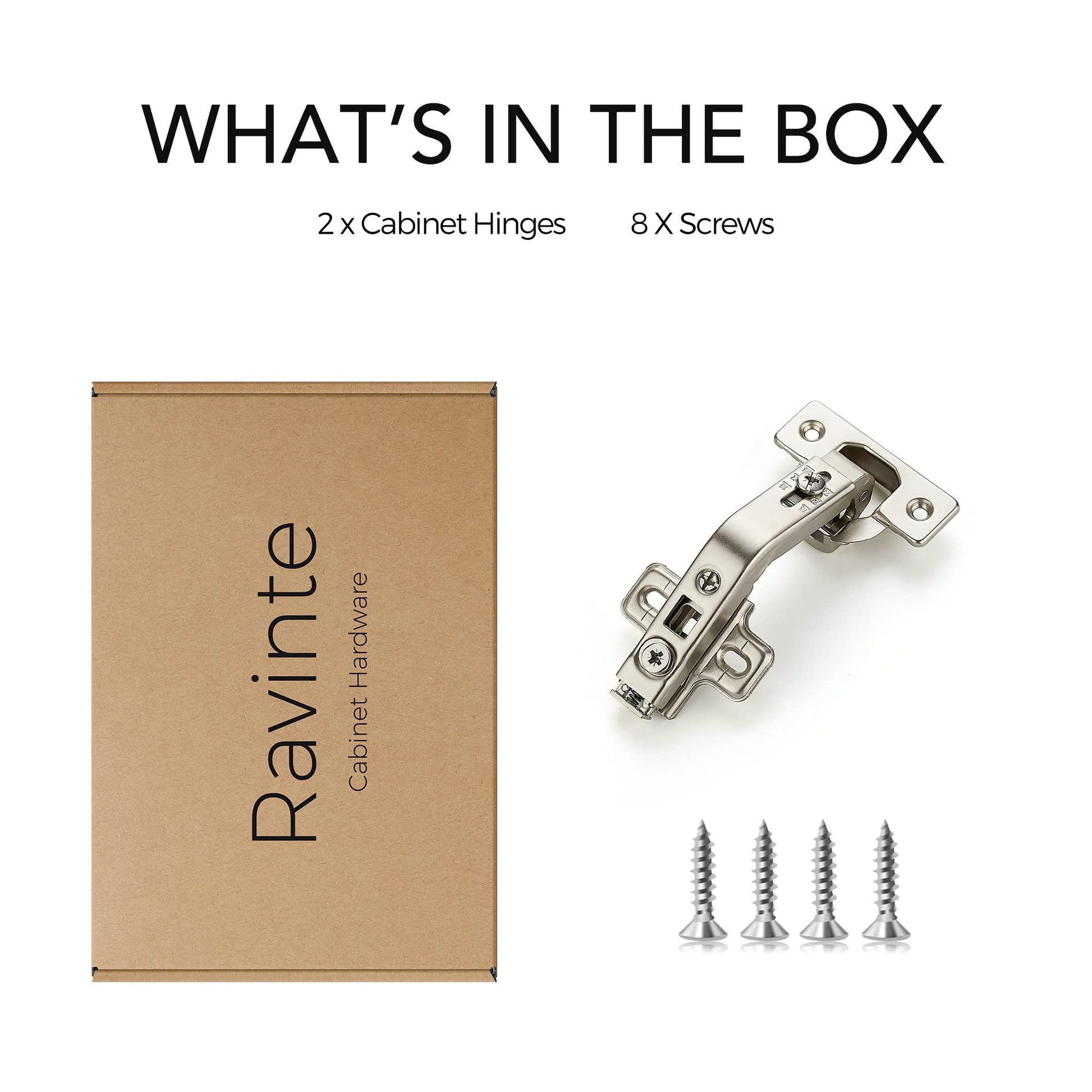

Easy to Install: The removable mounting plate makes the hinge installation easy. Each hinge comes with matching screws and instructions.4-way adjustable screws will compensate for different door thicknesses
Installation Dimension: Hinge boring cup diameter is 1-2/5 inch(35mm); Boring cup depth is 2/5 inch(11mm); Cabinet door thickness rang is 11/16 inch(18mm) to 7/8 inch(22mm); Opening angle 135 degree; Mounting plate center to center is 45mm
Sturdy Material: All metal construction with satin nickel finish, anti-rust, and anti-corrosion ensuring years of durability and longevity

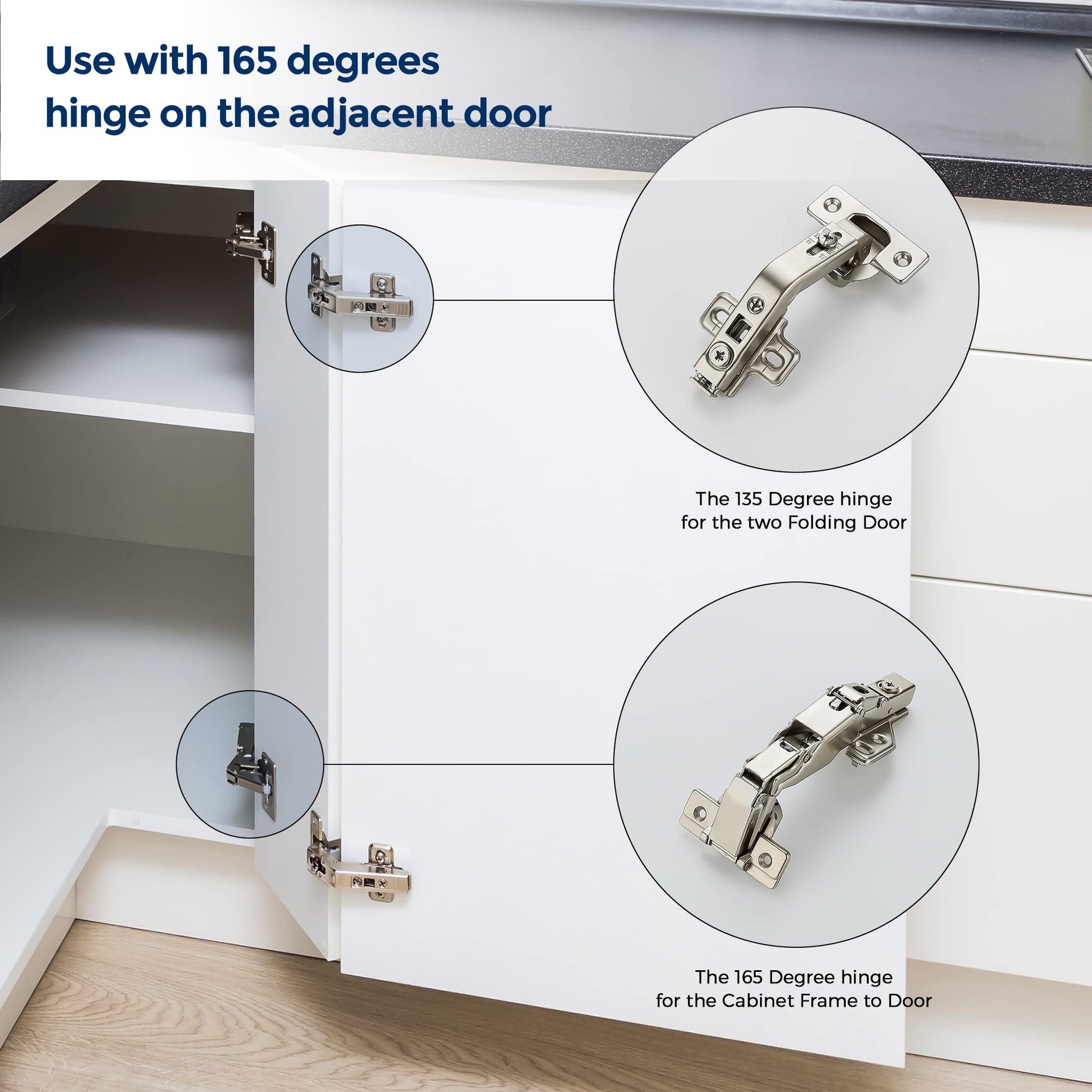

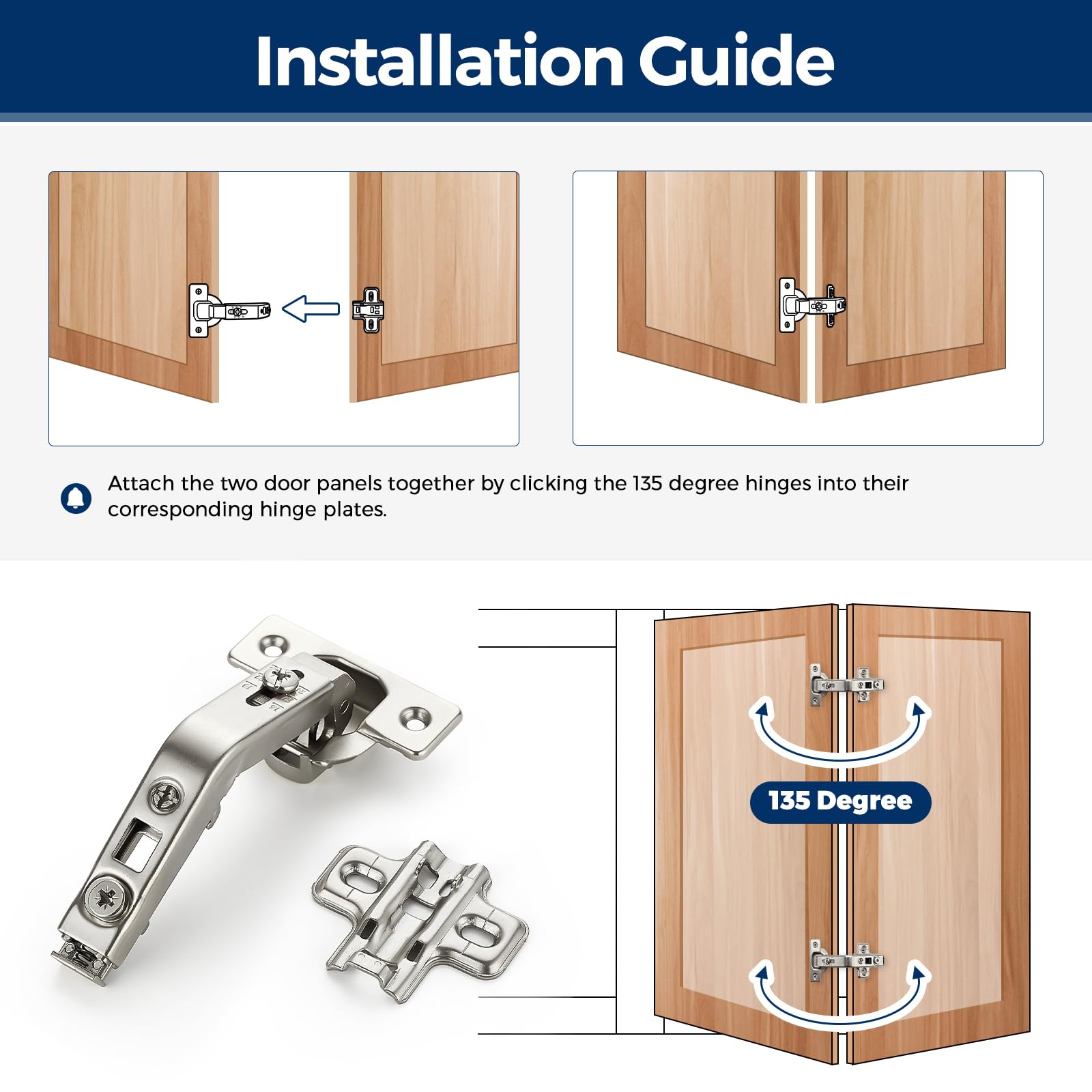

This 135 degree hinge is suitable for use on extension plates and is used in conjunction with the 165 degree hinge. Please refer to our installation guide before purchasing.
