Ruikarhop MC4 Connectors Y Branch 1 to 4 Adapter Cable Wire Plug,MC4 Assembly Tool and 5 Pairs Male/Female Solar Panel Connectors

Brand: Ruikarhop

Color: 1 to 4

Features:

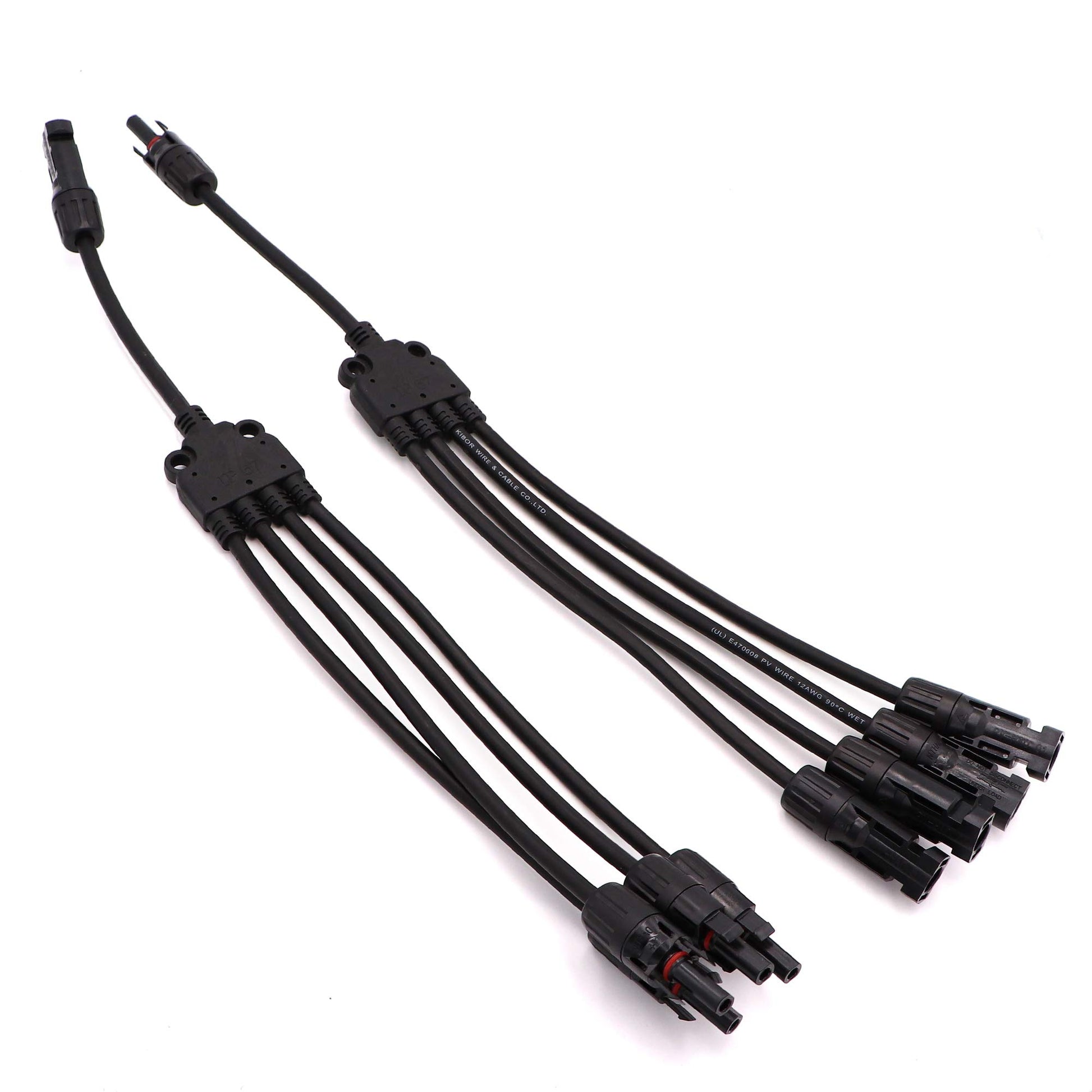

• Y Branch MC4 parallel Connector 1 male to 4 female(M/FFFF) and 1 female to 4 male(F/MMMM)，Double seal rings for better waterproof effect. Compatible with PV cables with different insulation diameters.
• With excellent aging resistance and UV endurance. Created seal, design of dust proof. Load capability with big current and high voltage.The rated current of the main line is 30A.
• 5 pairs MC4 solar panel connectors Male & Female + 5 pairs solar connector pins (male & female).made with highest quality materials,Compatible with PV cables with different insulation diameters (2.5m㎡--6m㎡)
• The MC4 Assembly Tool is a hard plastic material that is very handy for both the assembly of custom MC4 wires, making it easier for veteran users to quickly and easily tighten and take apart the connectors.
• Including 1 Pairs 1 Pair MC4 Assembly Tool Spanner Wrenches.Double wrenches- handy tool,One Pair MC4 Connectors Y Branch 1 to 4 Parallel Adapter Cable Wire Plug and 5 Pair MC4 Male/ Female Solar Panel Cable Connectors

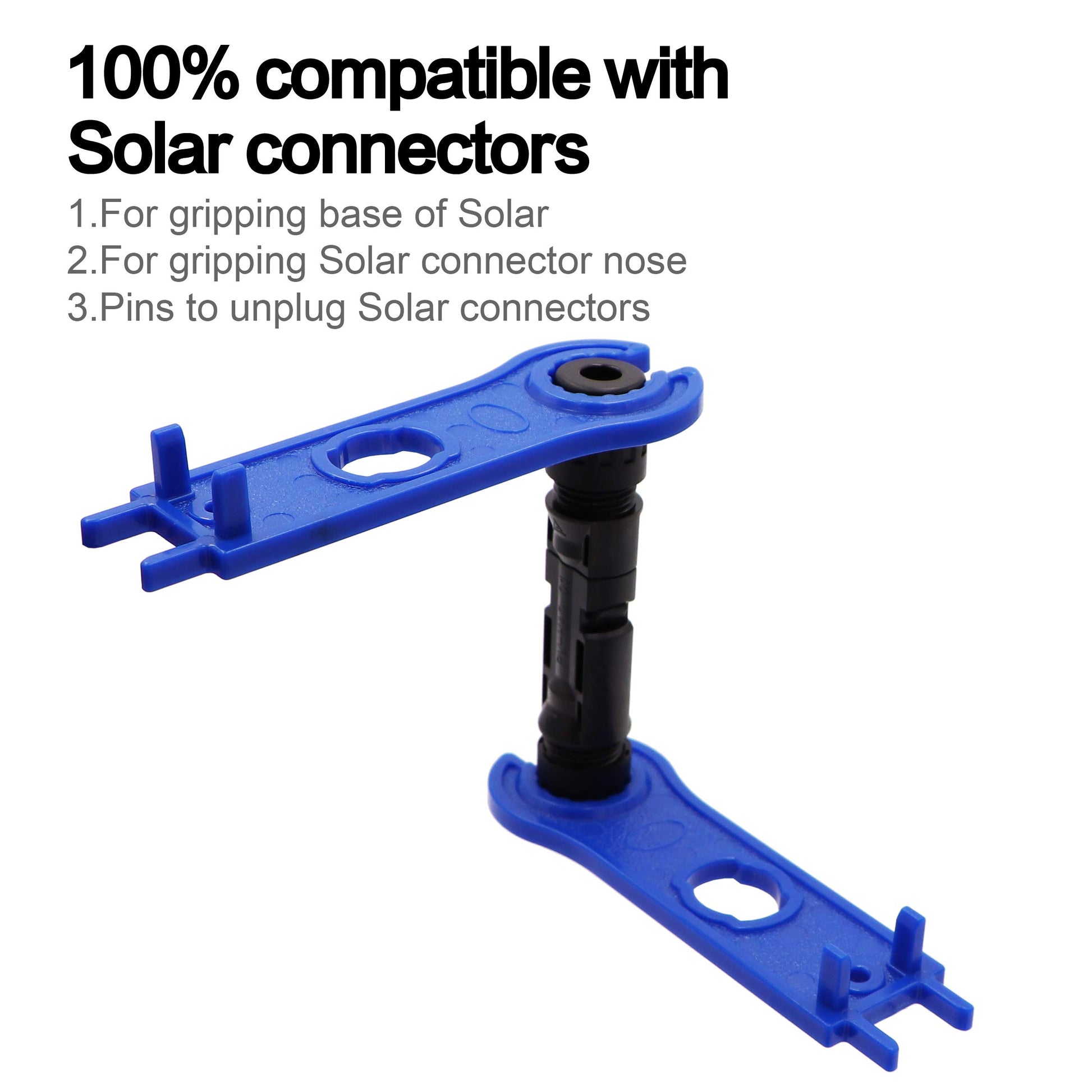

Details: The MC4 wrench:
Designed for assembling and disassembling MC4 male and female connectors, Durable ABS Material, Light weight, portable and easy to use Double wrenches- quick screw down.

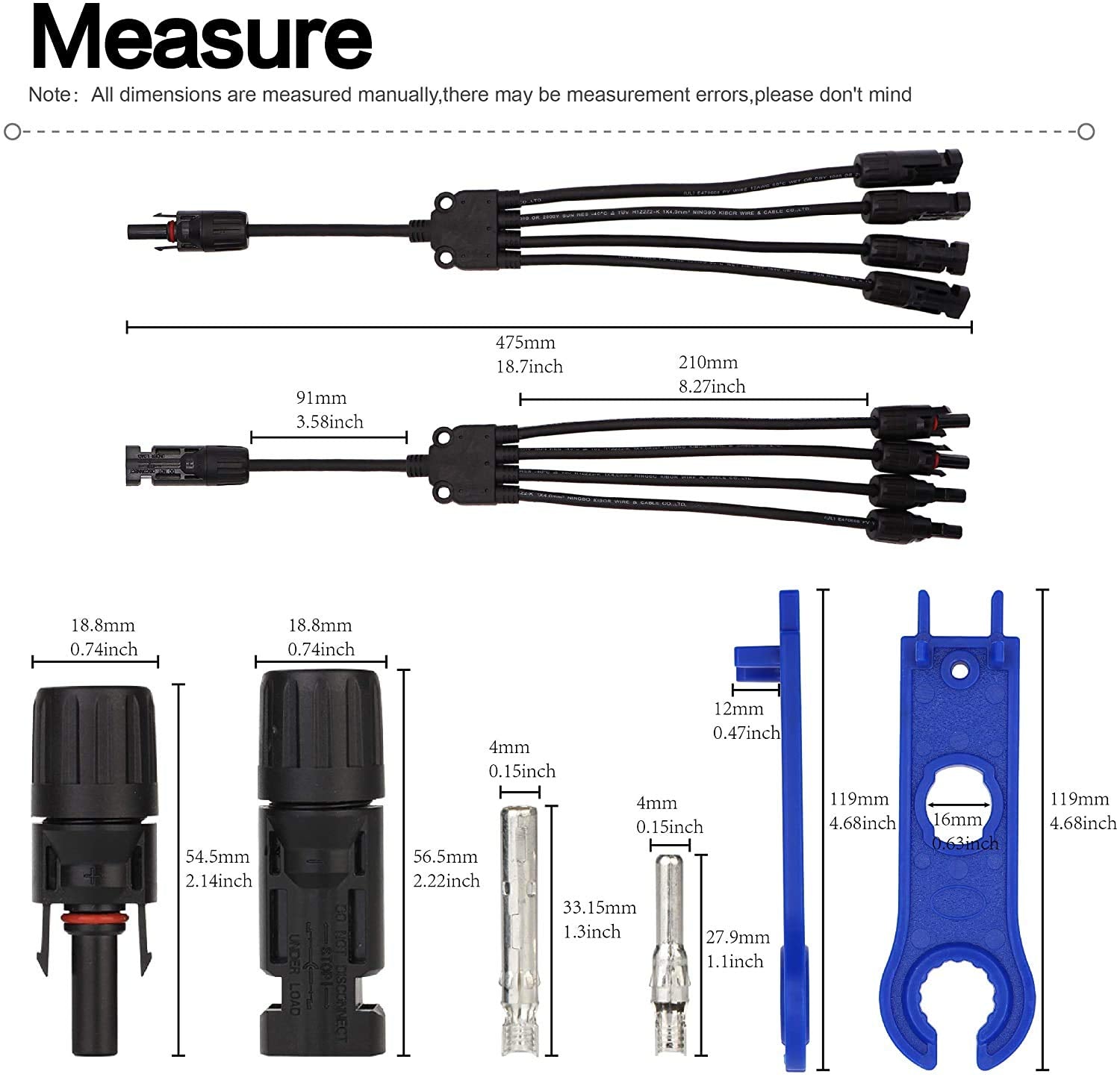

MC4 Connectors Y Branch 1 to 4 Parallel Adapter Specification:

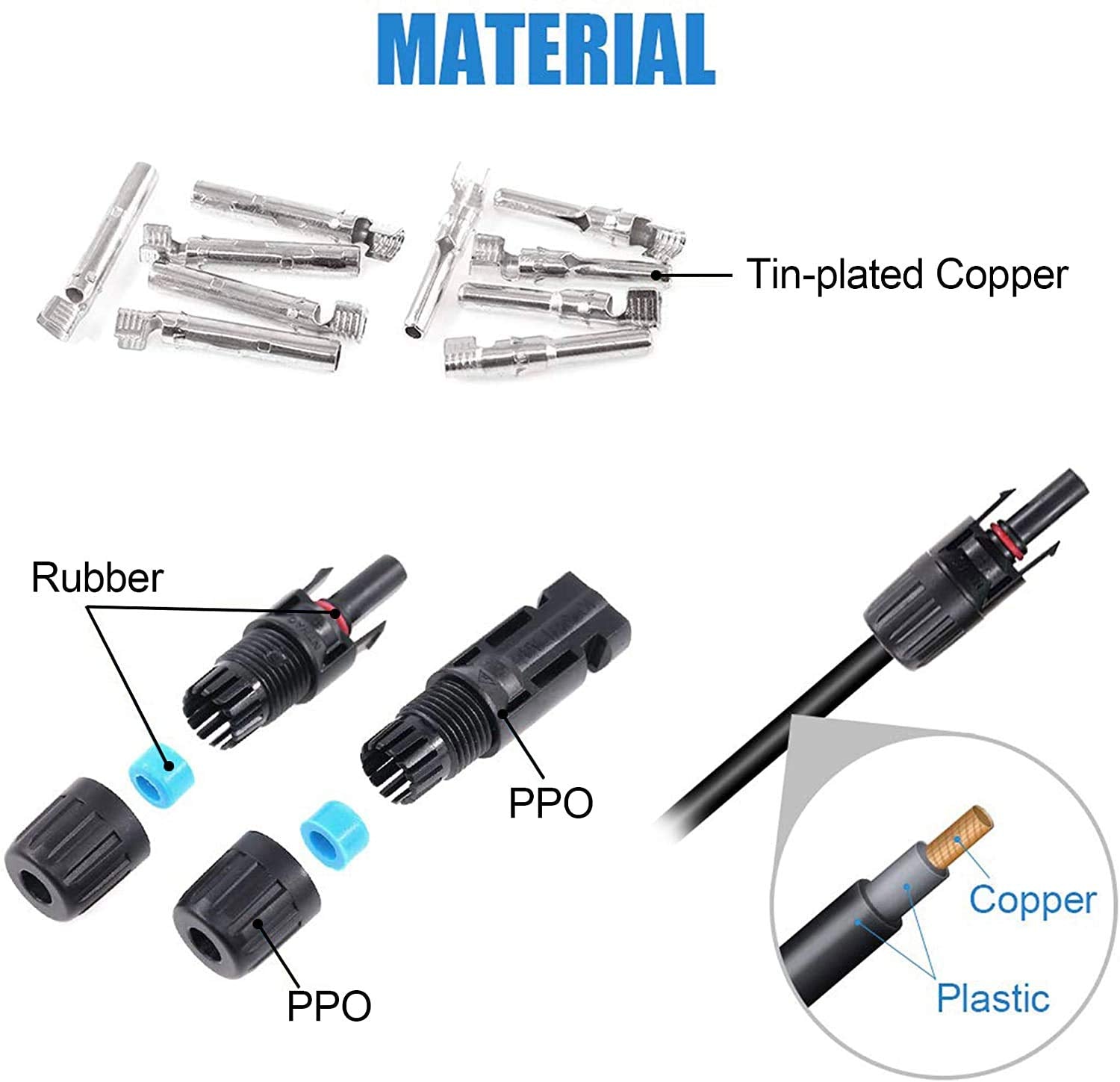

Insulation material:TPE PPO
Rated Current: 30A
Rated voltage: 1000VDC
Contact resistance: ≤0.2mmΩ
Waterproof degree：IP67
Flame class: UL94-VO
Safety Class: Ⅱ
Withdrawal force: ≥50N
Insertion force: ≤50N

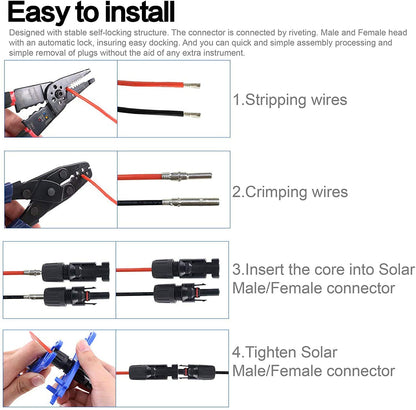

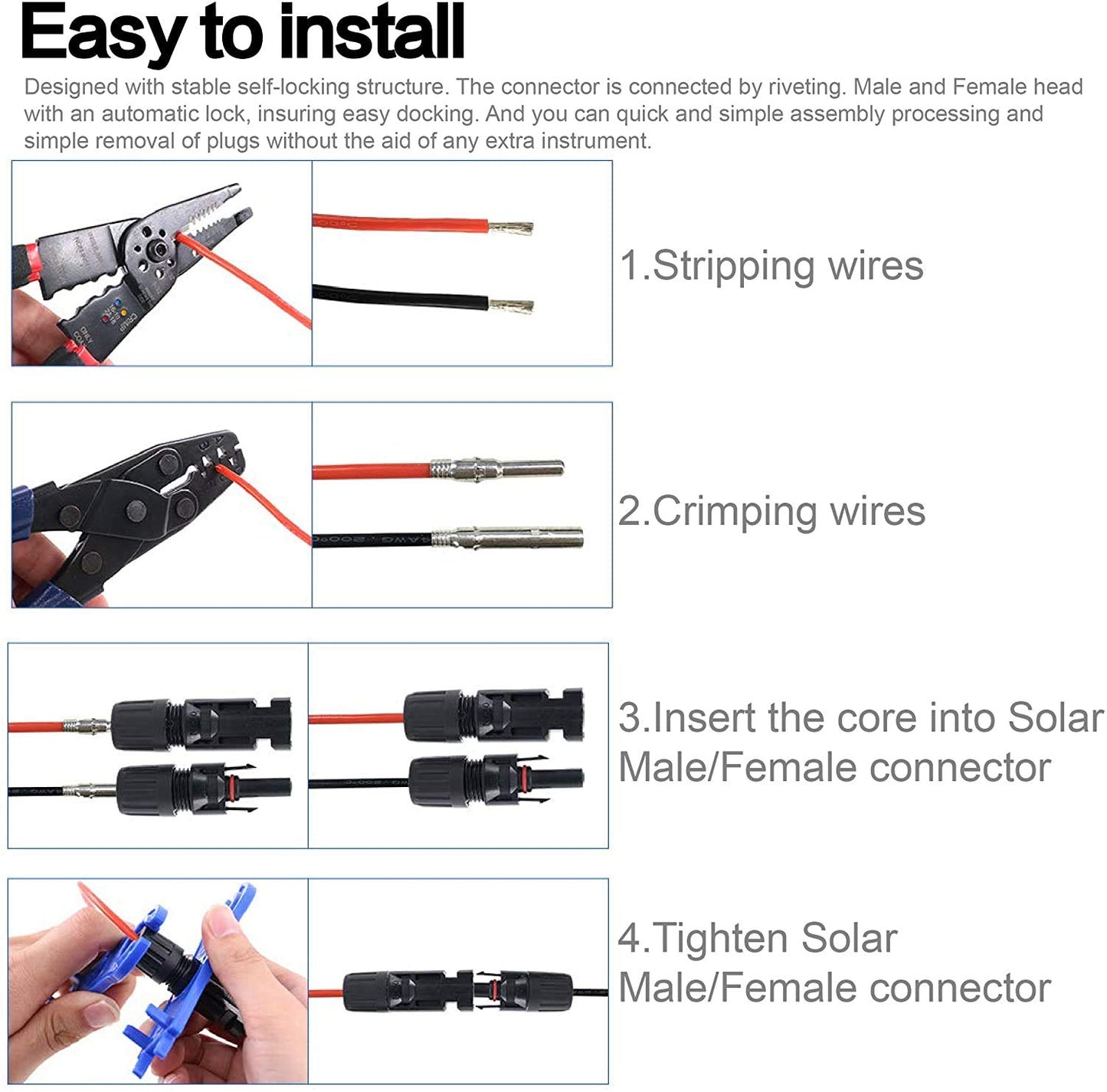

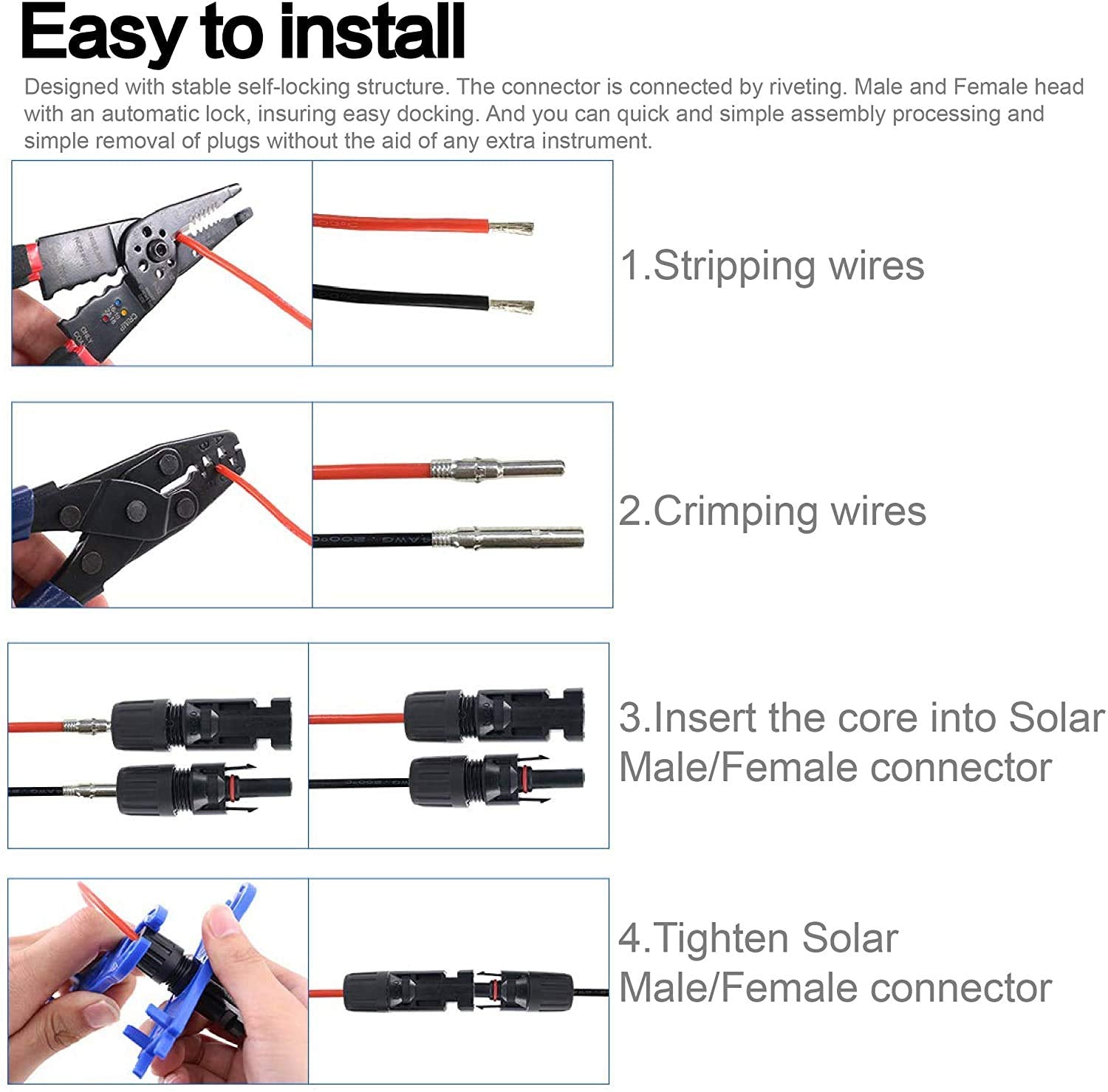

Connecting system: crimping connection
Temperature range: -40 ℃ ~ +90 ℃
Wire Size:1.5-6mm2
MC4 Male/ Female Connectors Specification:
Rated Current: 30A
Maximum Voltage: 1000VDC
Wiring Size Range: 10, 12 AWG
Contact Resistance: <0.5mΩ
Contact Material: Silver Plated Copper
Temperature: -40°F to +194°F
Insulation Material: PA/PC

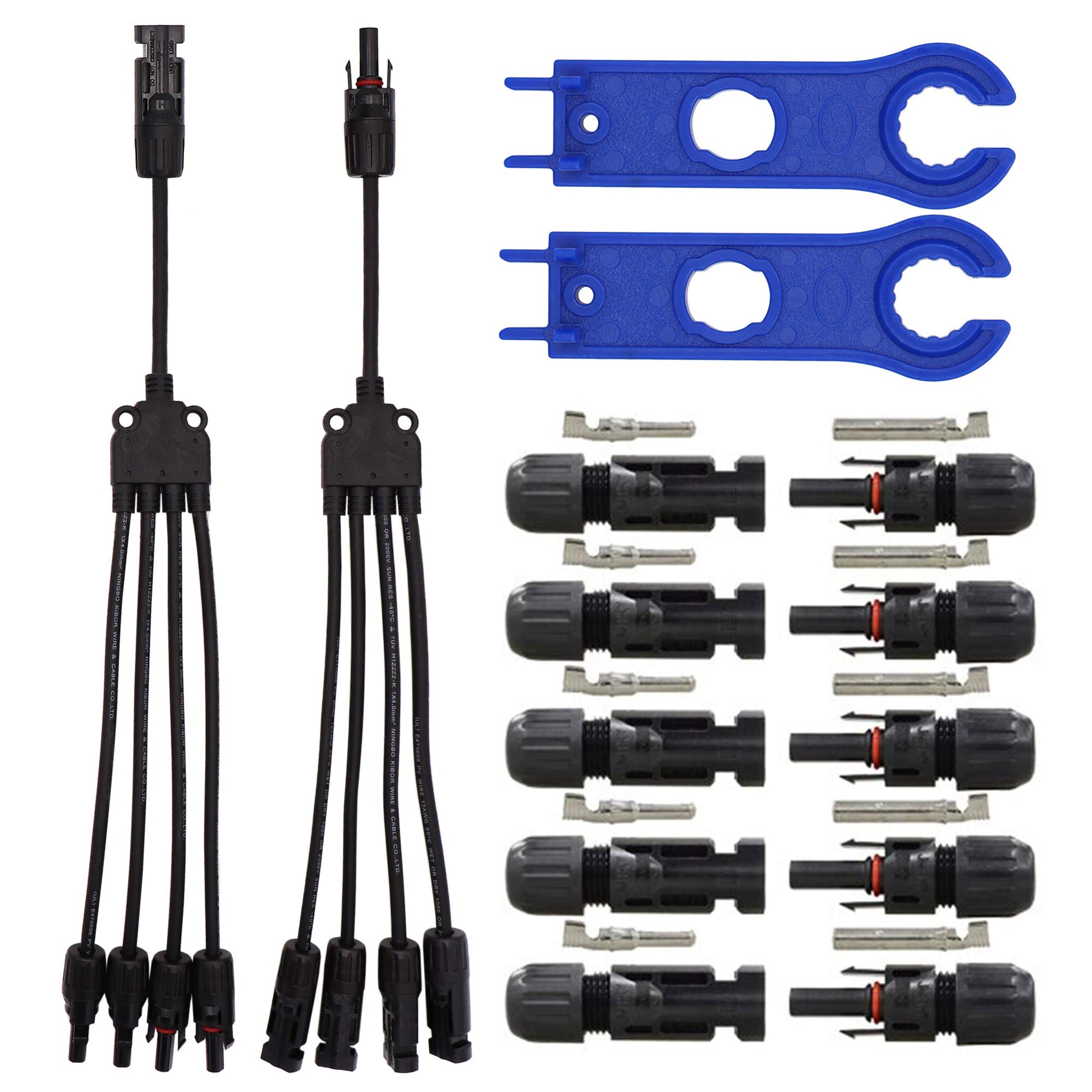

Package included:
2Pcs ---------- MC4 Connector Wrench
5Pcs ---------- MC4 Male Solar Panel Cable Connectors
5Pcs ---------- MC4 Female Solar Panel Cable Connectors
1Pc ---------- Y Branch MC4 parallel Connector 1 male to 4 female(M/FFFF)
1Pc ---------- Y Branch MC4 parallel Connector 1 female to 4 male(F/MMMM)

EAN: 0699900088166

Package Dimensions: 11.4 x 7.9 x 1.2 inches

Part Number: HS0105-Z
