SOLPERK 10A Solar Charge Controller Waterproof Solar Panel Controller 12V/24V PWM Solar Panel Battery Intelligent Regulator for RV Boat car ，with LED Display

Brand: SOLPERK

Color: Black

Features:

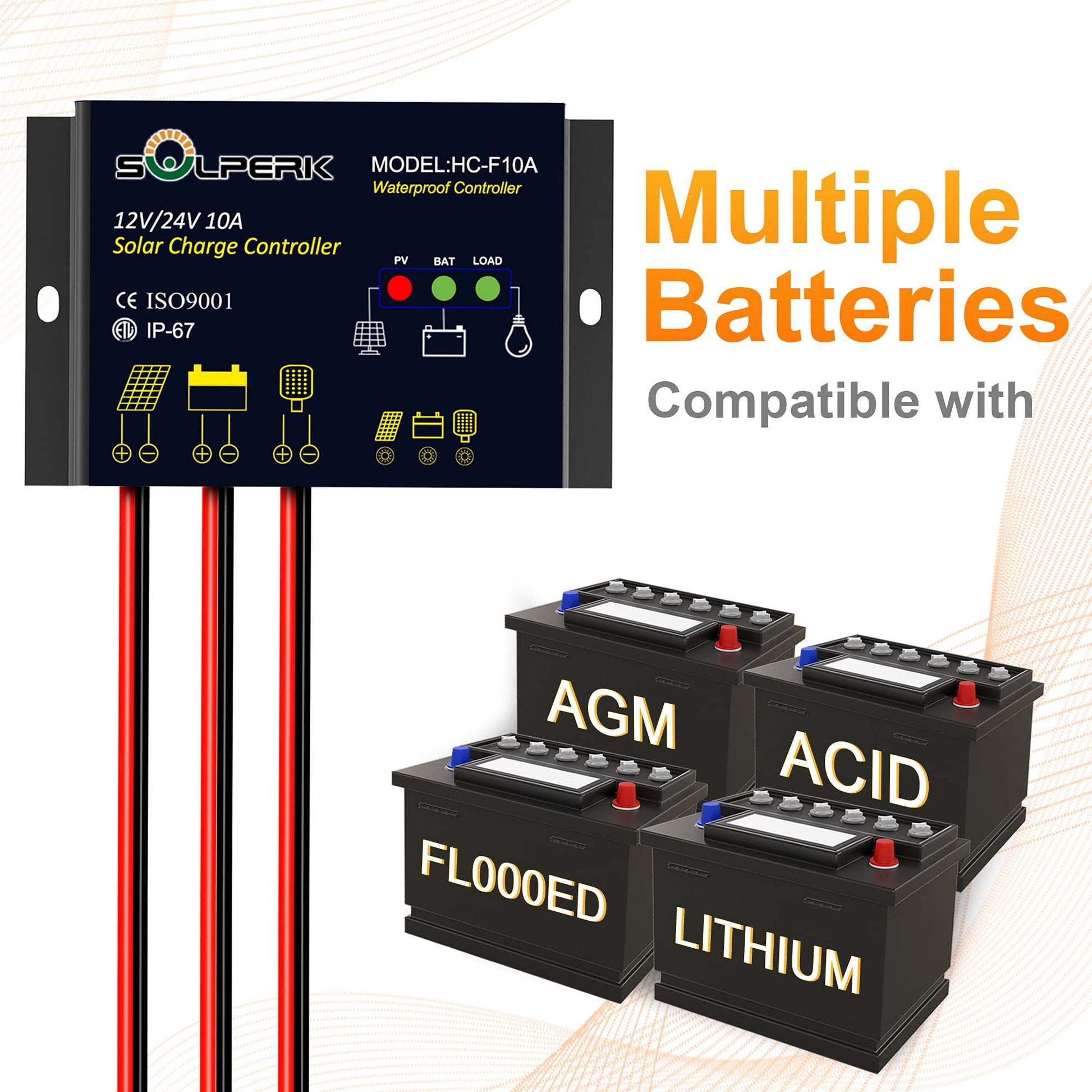

• ✔️【Waterproof Solar Charge Controller】IP67 waterproof, suitable for outdoor use. Automatically identify voltage, 12V Max power: 150W, 24V Max power: 300W. The maximum current is 10A. Compatible with various 12V/24V deep-cycle batteries, such as AGM, GEL, Flooded. Adopting brand MCU chips to realize fast intelligent control and ultra-low standby power consumption.

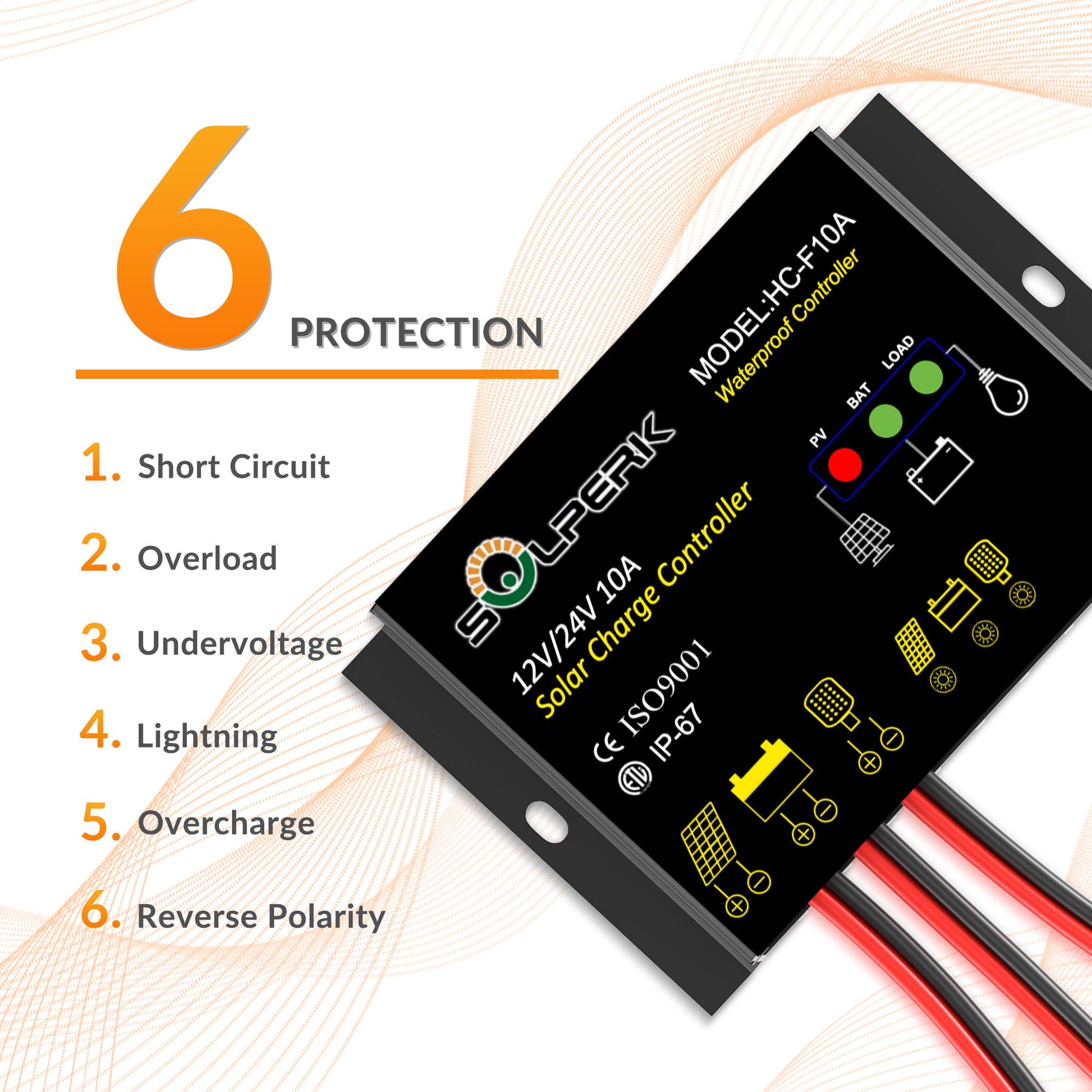

• ✔️【Intelligent protection】Intelligent 3-stage PMW charging improves charging efficiency. The solar controller not only extends battery life and improves system performance, but also has multiple protection functions: Battery under-voltage, over-voltage, output overload, short circuit, battery, solar panel anti-back connect protection.

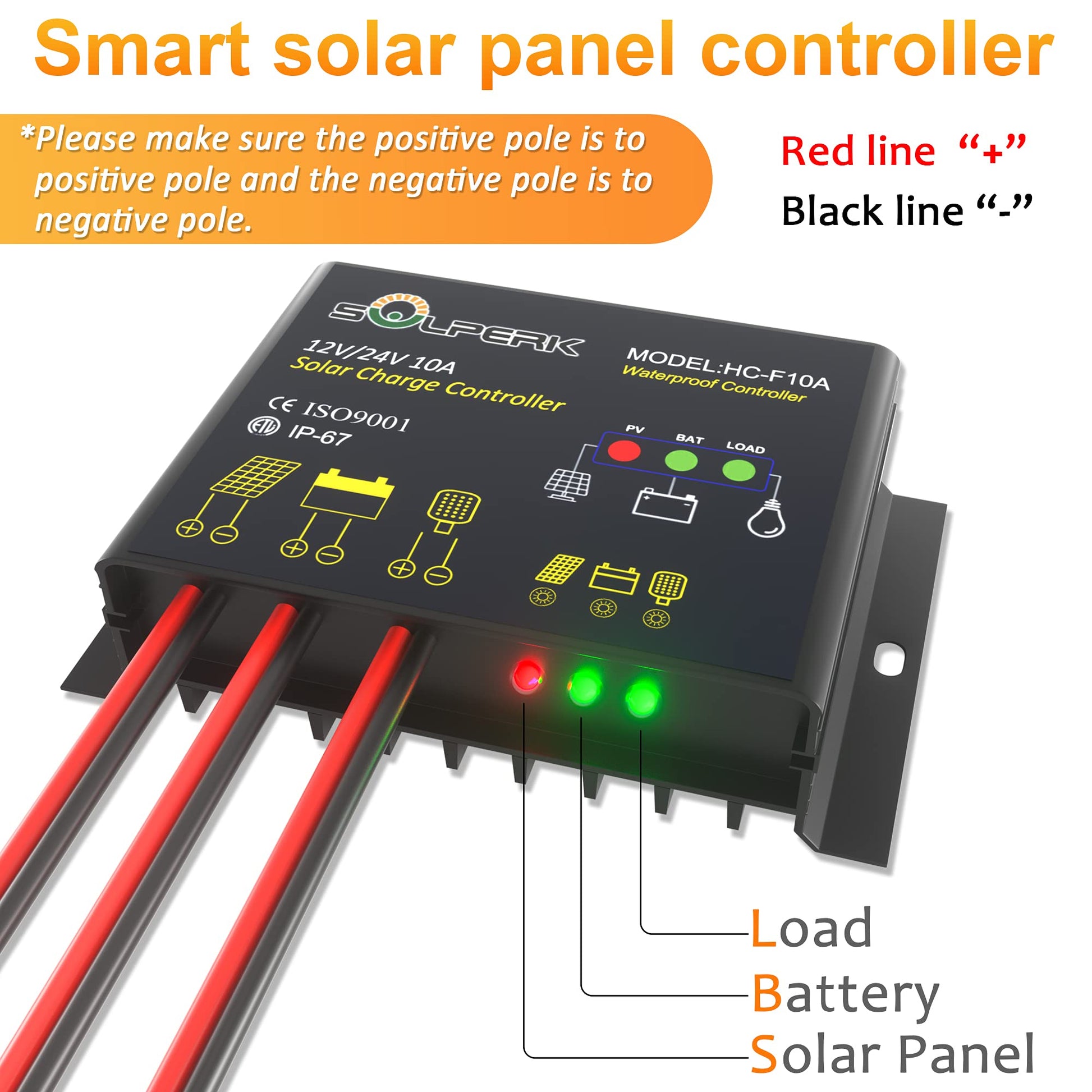

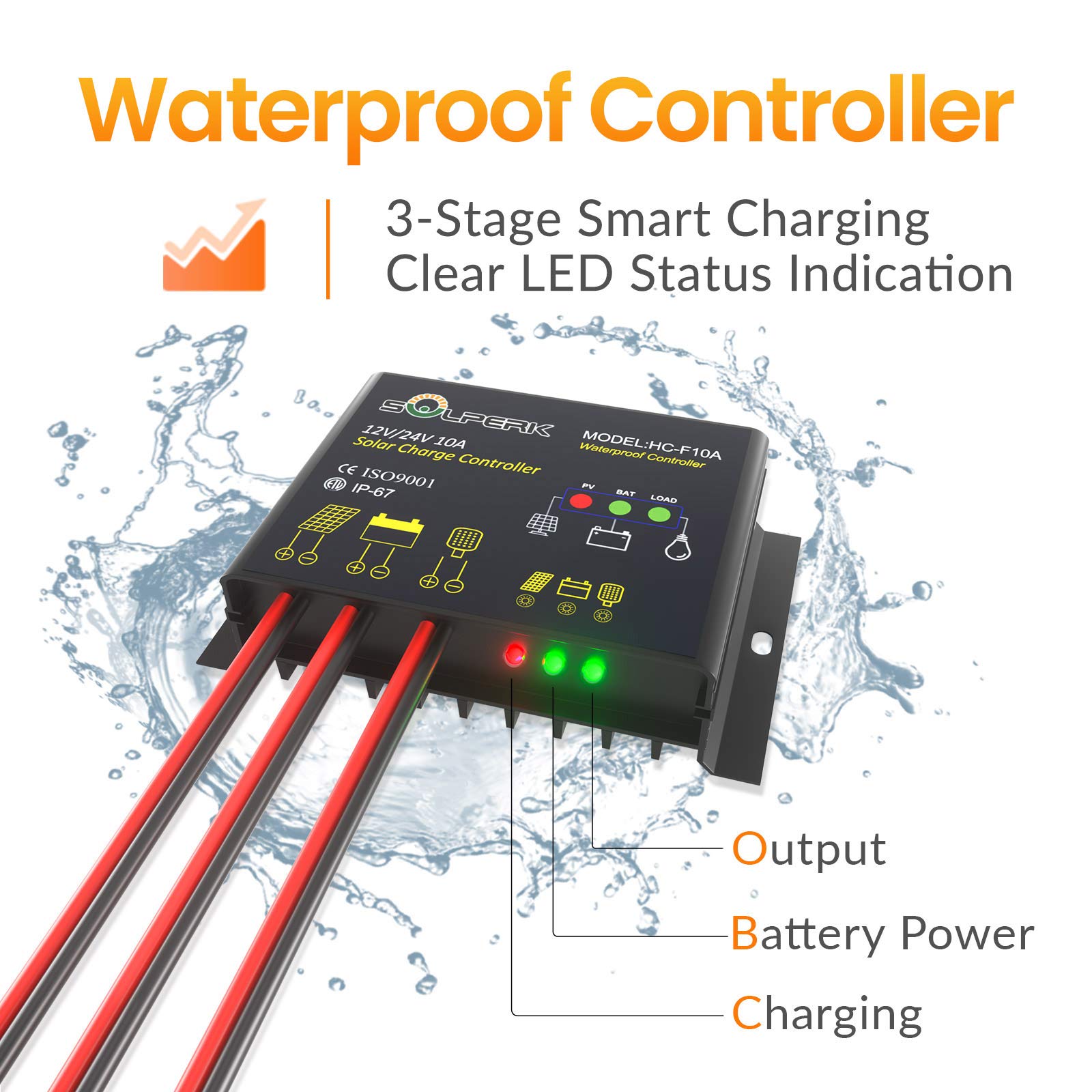

• ✔️【Indicator Monitoring】You can understand its current working status through the three indicators on the solar panel charge controller. Load normal output: green light is always on; battery is normal: green light is always on; solar panel is charging normally: red light is always on.

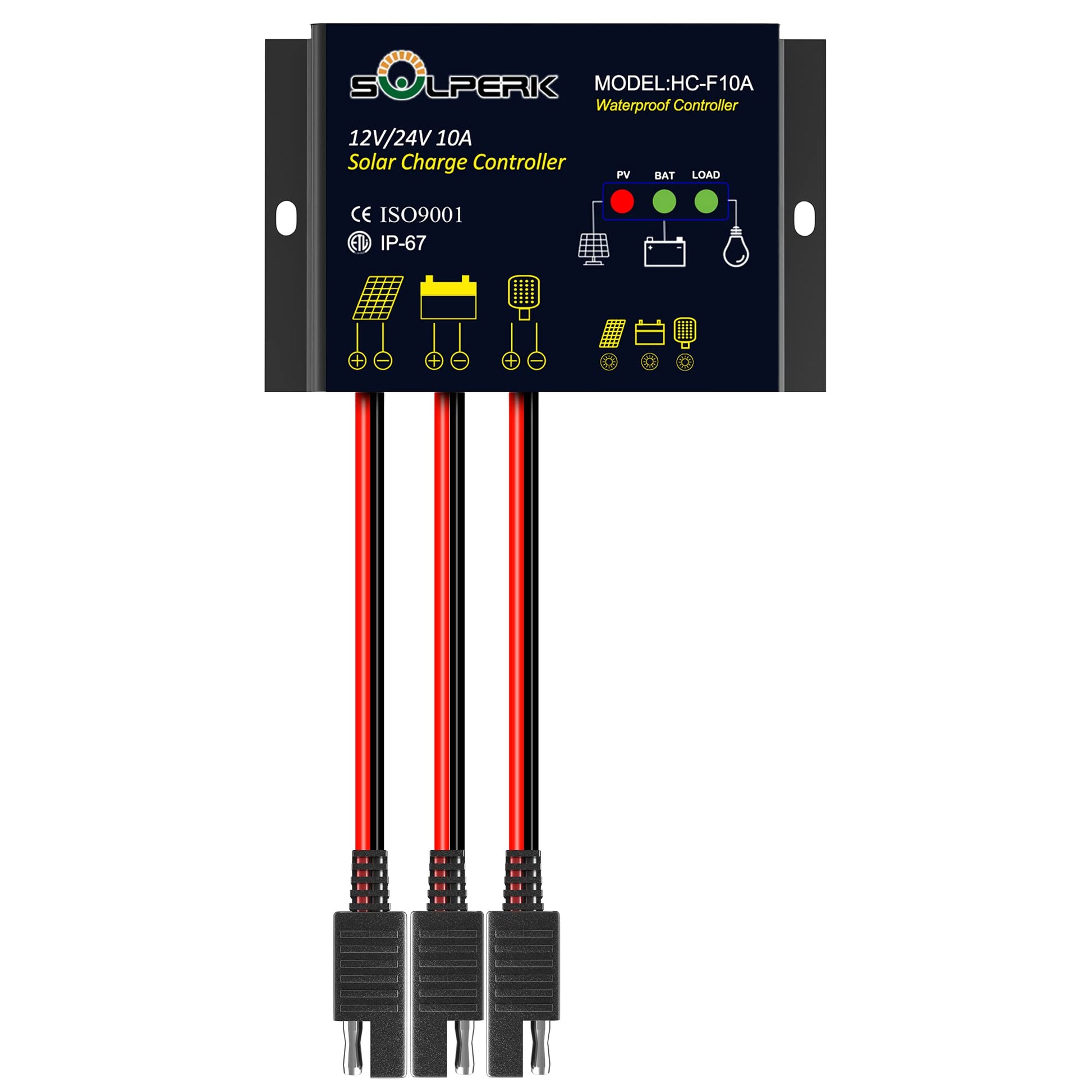

• ✔️【Easy to install and operate】The solar panel controller adopts SAE port, plug and play. A manual with clear connection steps is included. There are 2 pre-drilled holes on the controller, you can install it anywhere according to your needs!
• ✔️【What You Get】1 solar charger controller, 1 manual. Extended 12 months warranty and our 7*24h technical service support. If you have any questions, please contact us directly.

Details: The waterproof intelligent charge controller features PWM (Pulse Width Modulation) technology to help maintain higher charging efficiency. Build-in short-circuit protection, open-circuit protection, reverse protection, over-load protection, more safety for using, suitable for home, industrial, commercial etc.
Technical Parameters
For colloid, open battery
Accumulator voltage: 12V/24V
Rated charging current: 5A/10A
Solar open circuit voltage: <55V
Overload, short circuit protection: @1.25 times rated current 30 second protection; @1.5 times rated current 10 second protection;
At least 3 times the rated current is protected immediately
Overcharge protection voltage: 14.5V/29.0V
Overcharge recovery voltage: 14.0V/28.0V
Charge voltage: 13.8V/27.6V
Floating charging voltage: 13.2V/26.4V
Overshoot protection voltage: 11.0V/22.0V
Over release voltage: 12.5V/25.0V
Light control turn on voltage: 3.0V/6.0V
Light control turn off voltage: 7.0V/14.0V
No-load loss:《10mA
Working temperature: -35°C——+65°C
Protection grade/The net weight: IP68/0.15KG
Diameter and length: 1.5mm²,《100mm
Size (length*width*height): 50*81*21mm

Package Dimensions: 6.0 x 4.0 x 1.7 inches
