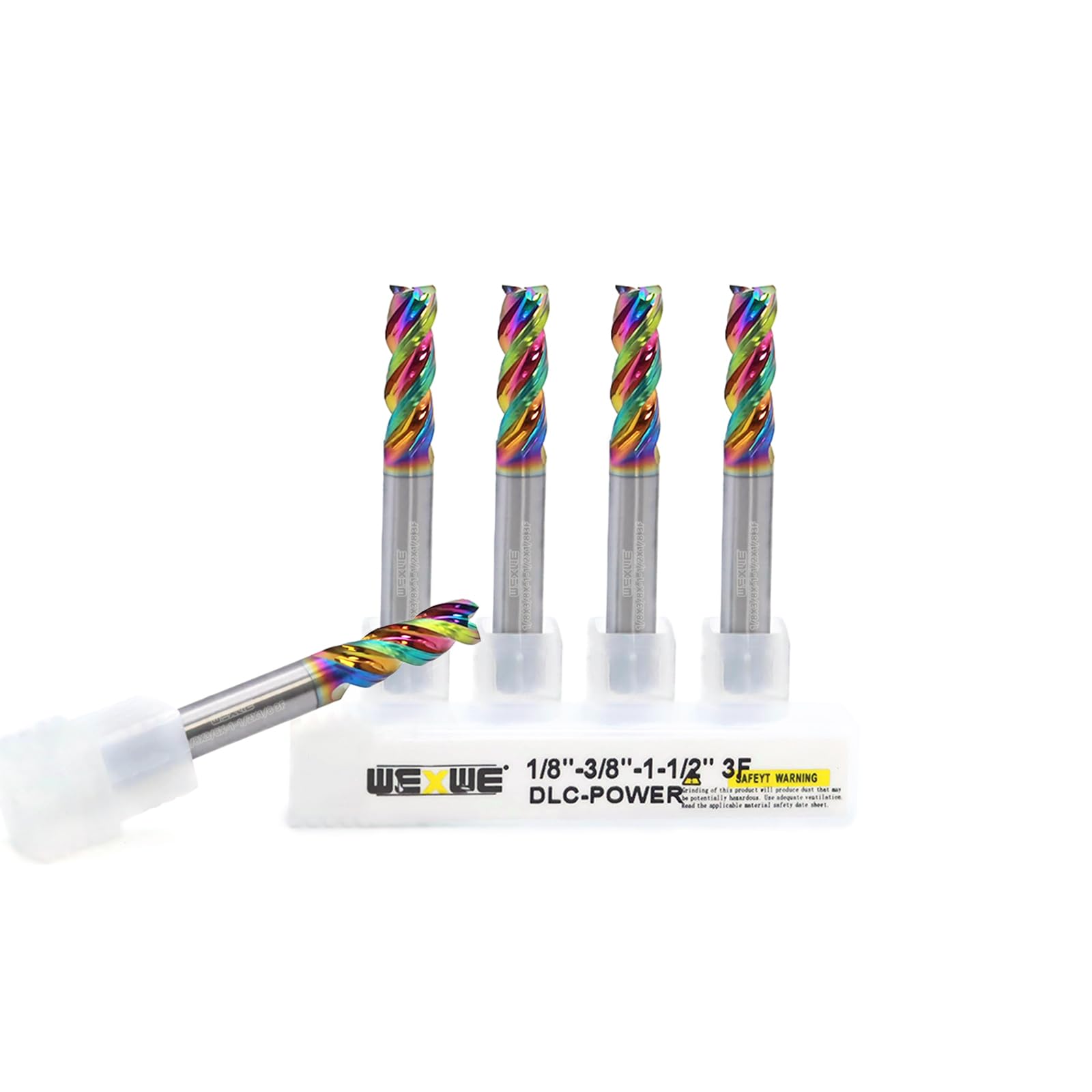

WEXWE Tools DLC Series Carbide Square End Mill, Diamond-Like Coating, End Mill for Aluminum, Copper, Magnesium Alloys, High Silicon Aluminum, Composite Materials,3 Flute,1/8 Shank(.125(1/8)", 5pcs)

Brand: WEXWE

Features:

• DLC coating (diamond-like coating)-The tool surface to obtain ultra-high hardness(HV7000) Low coefficient of friction(μ=0.08-0.15)，Strong adhesion resistance
• Use ultrafine grain tungsten steel matrix，Perfect combination of toughness and hardness，Improve wear resistance while avoiding breakage and fracture

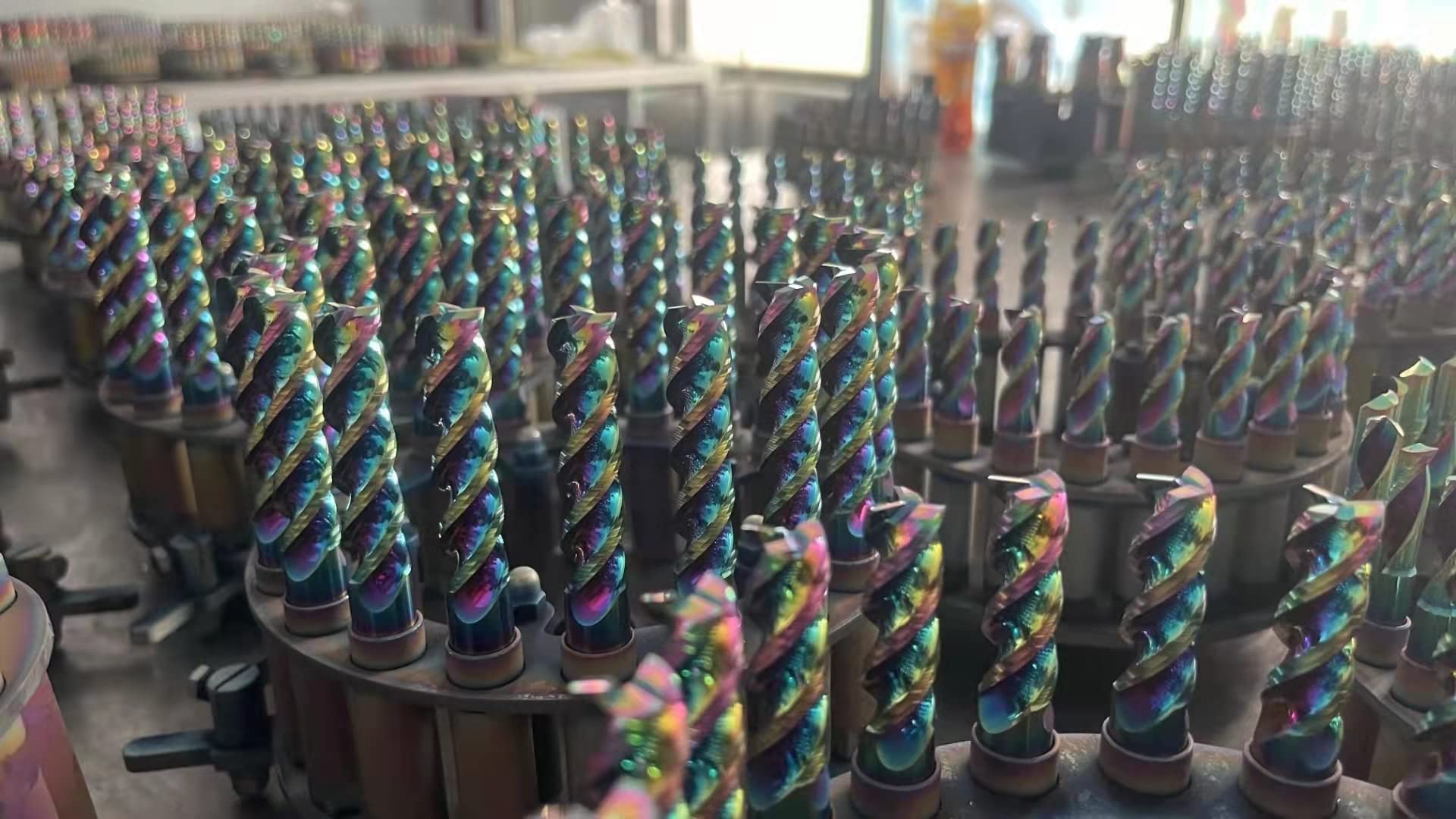

• Manufactured with five-axis precision grinding machine, Each milling cutter is tested by tool testing instruments，Good stability of dimensional accuracy
• Unique cutting edge design, specially used in aluminum alloy, copper alloy processing
• Greatly performance for alumimum / aerospace/new energy vehicle. U-groove type design for high feed rating and greatly surface finishing

Details: It can obtain excellent finish of machined surface while processing efficiently

★Attention:
-Before using the tool, please measure the tool deflection. When the tool deflection accuracy exceeds 0.01mm, please calibrate it before cutting.
-The shorter the length of the tool extending from the chuck, the better. If the extending length of the tool is longer, it is necessary to reduce the speed, feed speed or sales volume.
-During cutting, if abnormal vibration or noise occurs, please reduce the cutting feed rate until the situation improves.
Steel cooling is preferably oil cooling and water cooling, which can effectively improve the use effect of milling cutters.
Please confirm that it is the product you need before buying, to avoid that the product does not meet your expectations and cannot be used.

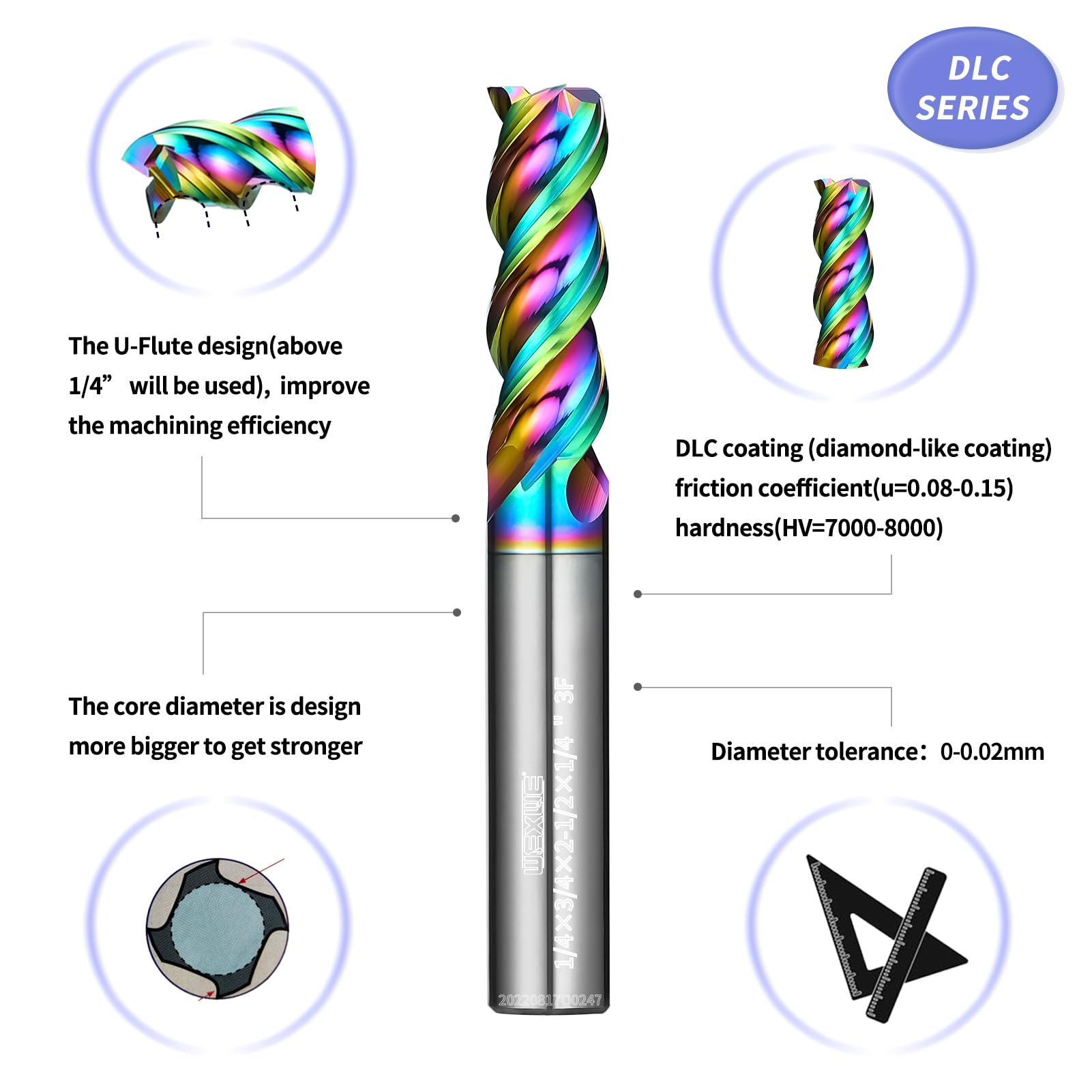

★Main features:
※DLC coating ensures the wear resistance and stability of the tool in the process of large feed and large cutting.
※High-strength anti-vibration, no sticking to the knife, so that the surface of the workpiece is smooth.
※Unique U-groove design reduces cutting resistance and improves work efficiency.
※It can help reducing the number of tool changes and the breakdown utilization rate, saving production time.

EAN: 0774980046203

Package Dimensions: 4.7 x 4.2 x 0.7 inches

Part Number: 1212
