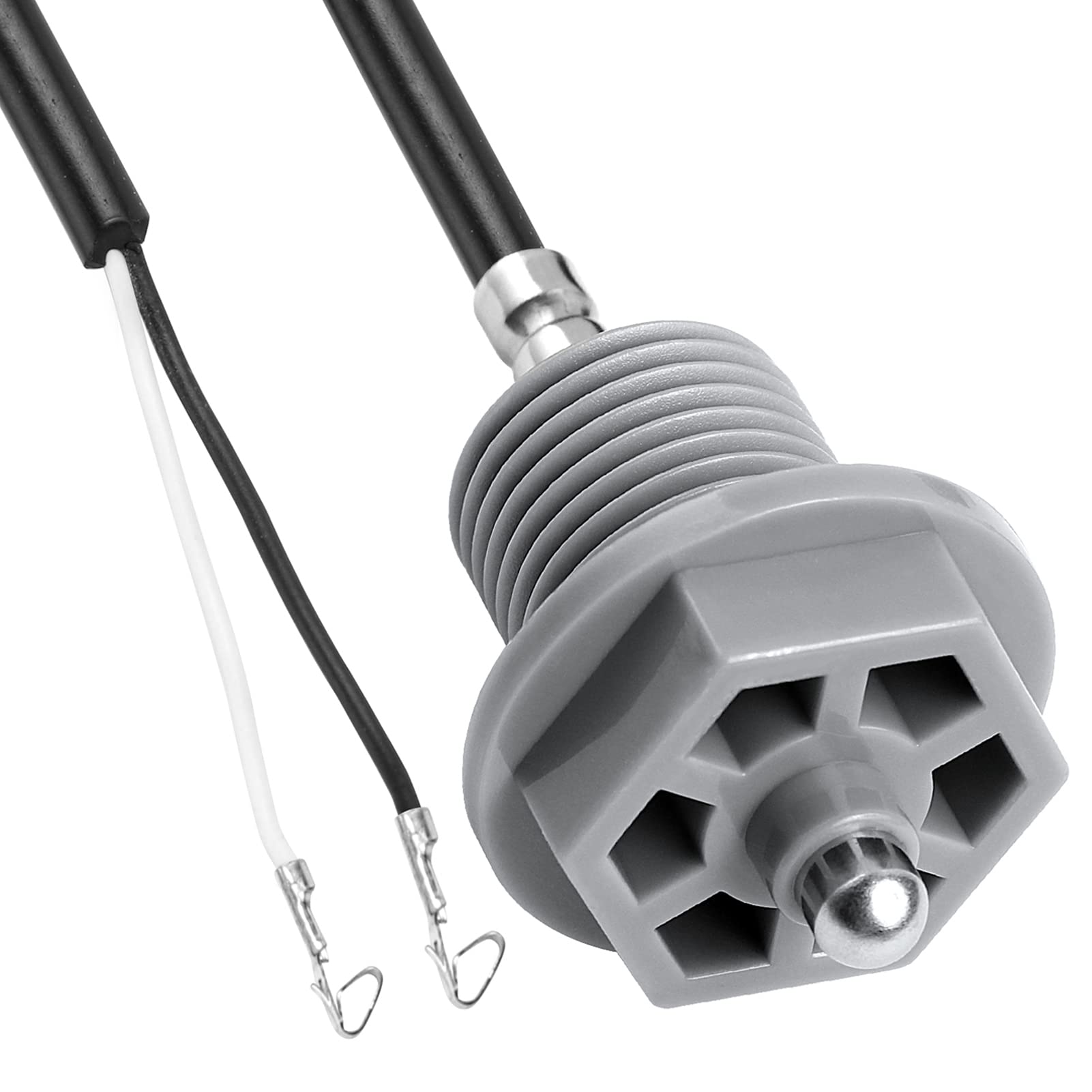

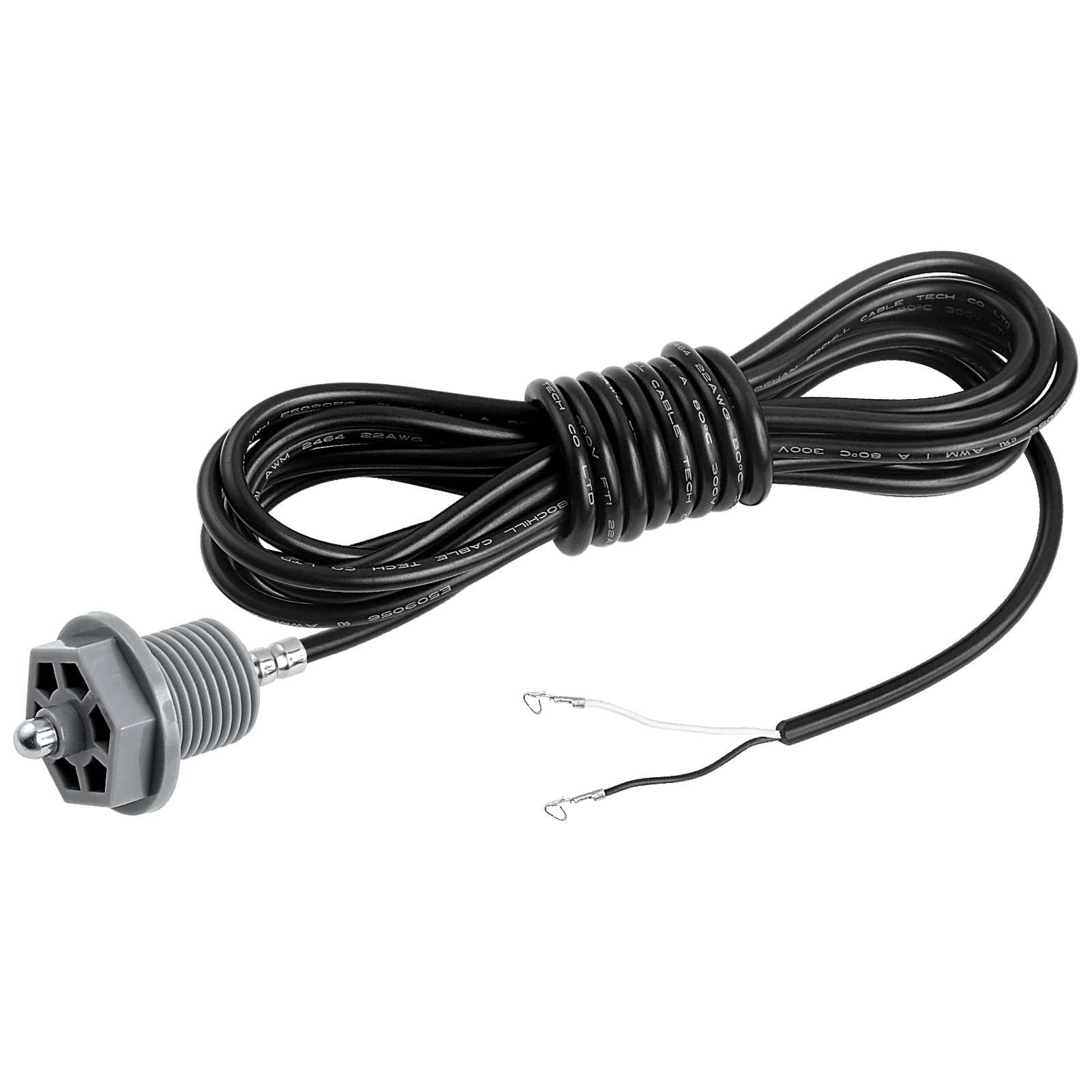

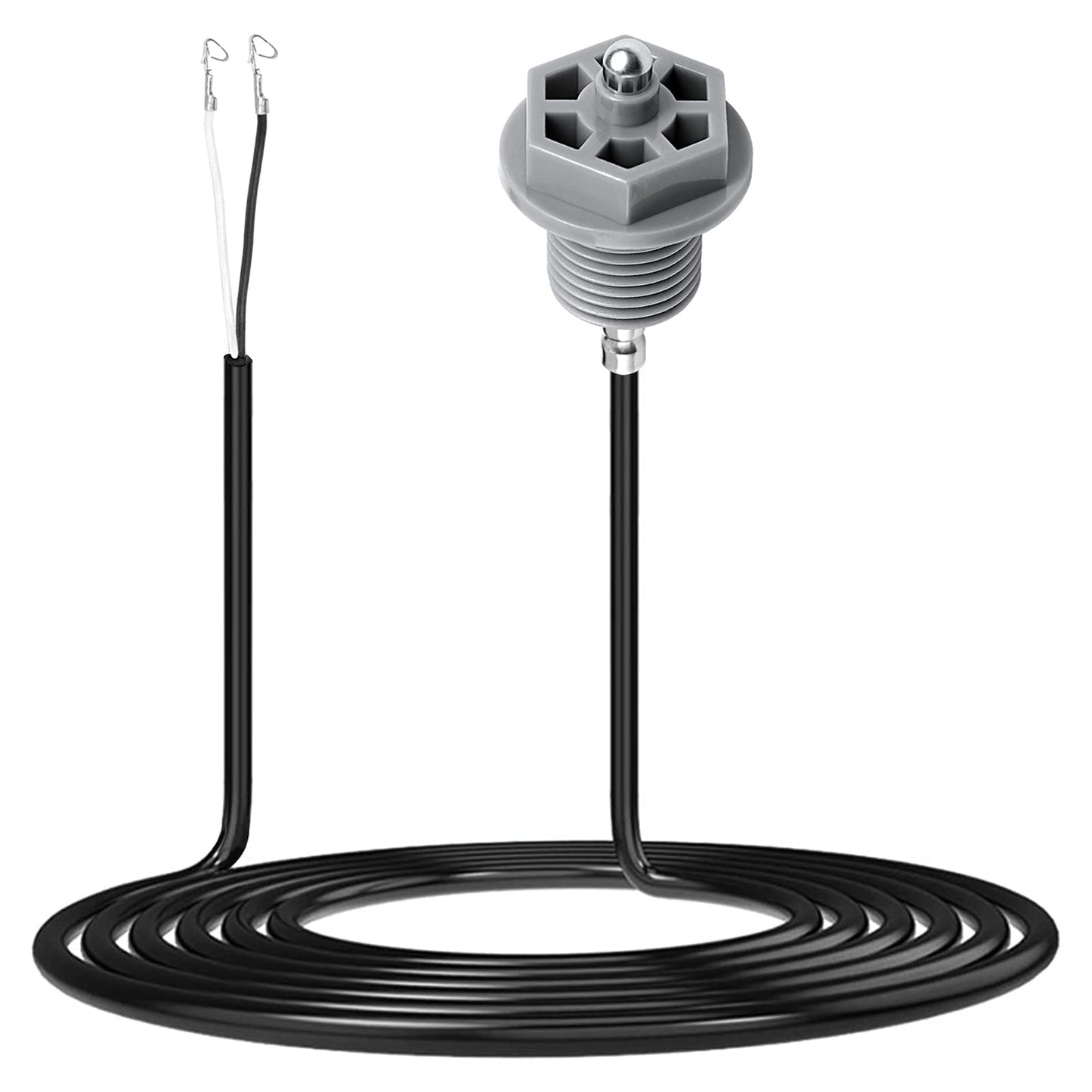

XMK 6600-166 Temperature Sensor for Sundance Spas and Jacuzzi Hot Tubs, with Curled Finger Connectors and 6540-228 O-Ring

Brand: XMK

Color: Black

Features:

• Compatibility: 6600-166 spa temperature sensor with curled finger connectors compatible with Sundance Spas and Jacuzzi Hot Tub, include 6540-228 spa sensor O-Ring.
• Temperature Sensor for Jacuzzi Hot Tub Models: All J300-J365 tubs use the 6600-066 curled finger sensor, 2007+ J-270, J-280, J-355, J-365 and J-375 Models 2005+ J-210, J-220 and J-230, J-200 LED Models 2005-2007 J-325 Models 2004+ J-335, J-345 Models 2003-2005 Del Sol Models 2002-2003 J-320, J-330, J-340 Models 2002+ J-300.
• Temperature Sensor for Sundance Spas Models: 2012+ 680 Peyton, 2011+ Select Series 2008+ 680 Denali, Tacoma; 780 Dover 2008-2012 680 Burlington model with or without a Circ Pump 2007+ Hamilton, Chelsee, Certa and Camden 2007 Metro, Solo, and 680 Models 2006 Caprio, Metro, Solo, and 680 Models 2006 Palermo, Bahia and Cayman 2005 850E Models 2005 780, Sweetwater and Del Sol Models (with curled finger connections).
• Temp Sensor for Sundance Spas Models: 1998-2004 Sweetwater Series and Portofino Series: Caprio, Metro and Solo.All Lx-10 and LX-15 Systems used by Sundance All 1998-2007 701, 724 Systems (with curled Finger Connectors) Winchester, Kensington Spas Replaces 6600-070, 6600-071 6600-104. Used on All: Bahia, Burlington, Caprio, Cayman, Camden, Certa, Chelsee, Denali, Dover, Hamilton, Hartford, Hawthorne, Metro, Palermo, Solo, Tacoma.
• Solve Water Temp Problem: The hot tub temperature sensor helps fix watchdog error display of " - - - - " on your spa hot tub.
• Easy Installation: Cut off old temp sensor in the hot tub and tape old wire to new spa temp sensor wire to feed through back to control board.
• Hot tub temp sensor comes with 12 foot wires which long enough to go from the sensor location to the control box.

Details: 6600-166 Temp Sensor for Jacuzzi and Sundance Spas with Curled Finger Connectors and 6540-228 O Ring
Spas hot tub temperature sensor helps solve your water temp problem and clear "Watchdog" error and "---" error. A great replacement parts to saved a lot just by replacing the temperature sensor.

Temperature Sensor Fits These Sundance Spas Models:
2012+ 680 Peyton(04/2012+)
2011+ Select Series: Constance and Victoria
2008+ Camden, Chelsee, Certa, Denali, Tacoma, Hawthorne, Hartford, Hamilton, Dover
2008-2012 Burlington
2007+ Hamilton, Chelsee, Certa and Camden, Montclair and Dover
2007 Metro, Solo, Burlington, Denali, Tacoma
2006 Caprio, Palermo, Bahia and Cayman Metro, Solo, Burlington, Denali, Tacoma
2005 Sweetwater, Del Sol and 850E Series: Lagunas, Cayman, Bahia, Palermo, Solo, Metro, Caprio
1998-2004 Sweetwater Series and Portofino Series: Aspen, Austin, Bahia, Caprio, Caprio ST Cayman, Cheyenne, Hartford, Lagunas, Madison, Metro, Olympia, Palermo, Solo, Tango, Vail
All Lx-10 and LX-15 Systems used by Sundance Spas : 1998: Vail, Olympia, Madison, Hartford, Cheyenne, Austin, Aspen
All 1998-2007 701, 724 Systems (with curled Finger Connectors)
Winchester, Kensington Spas (with curled finger connections)
No longer used on 780 systems after 04/2017+
Used on All: Austin, Aspen, Bali, Bahia, Burlington, Caprio, Cayman, Camden, Certa, Chelsee, Cheyenne, Denali, Dover, Hamilton, Hartford, Hawthorne, Lagunas, Madison, Metro, Palermo, Solo, Tacoma, Vail
Used on these Circuit Boards: 6600-720, 6600-726, 6600-722, 6600-724, 6600-286, 6600-287, 6600-288, 6600-289, 6600-082, 6600-084, 6600-086, 6600-087, 6600-088, 6600-089

Temperature Sensor fits these Jacuzzi Spas Models:
2007+ J-270, J-280, J-355, J-365 and J-375 Models
2005+ J-210, J-220 and J-230, J-200 LED Models
2005-2007 J-325 Models
2004+ J-335, J-345 Models
2003-2005 Del Sol Models
2002-2003 J-320, J-330, J-340 Models
2002+ J-300

Easy Installation
The Temp Sensors are located in the filter compartment on the side. They are unscrewed from the inside of the tub and the wire is fed through the tub into the equipment compartment. Follow the wire to the PC Board. To feed the new sensor, drain the tub below the hole and pull the old sensor out a couple of feet into the tub, cutting the old sensor head off, tie on the new sensor (connector end) to the old wire and pull the wire through into the equipment compartment.
The connectors on the Temp Sensor are attached to a pc board connector that is located on the PC Board (usually at the top). There are other wires connected to this plug: Jumper interlock wire,Flow Switch, High Limit and Temp sensor. Remove the pin connector from the board

Package Include

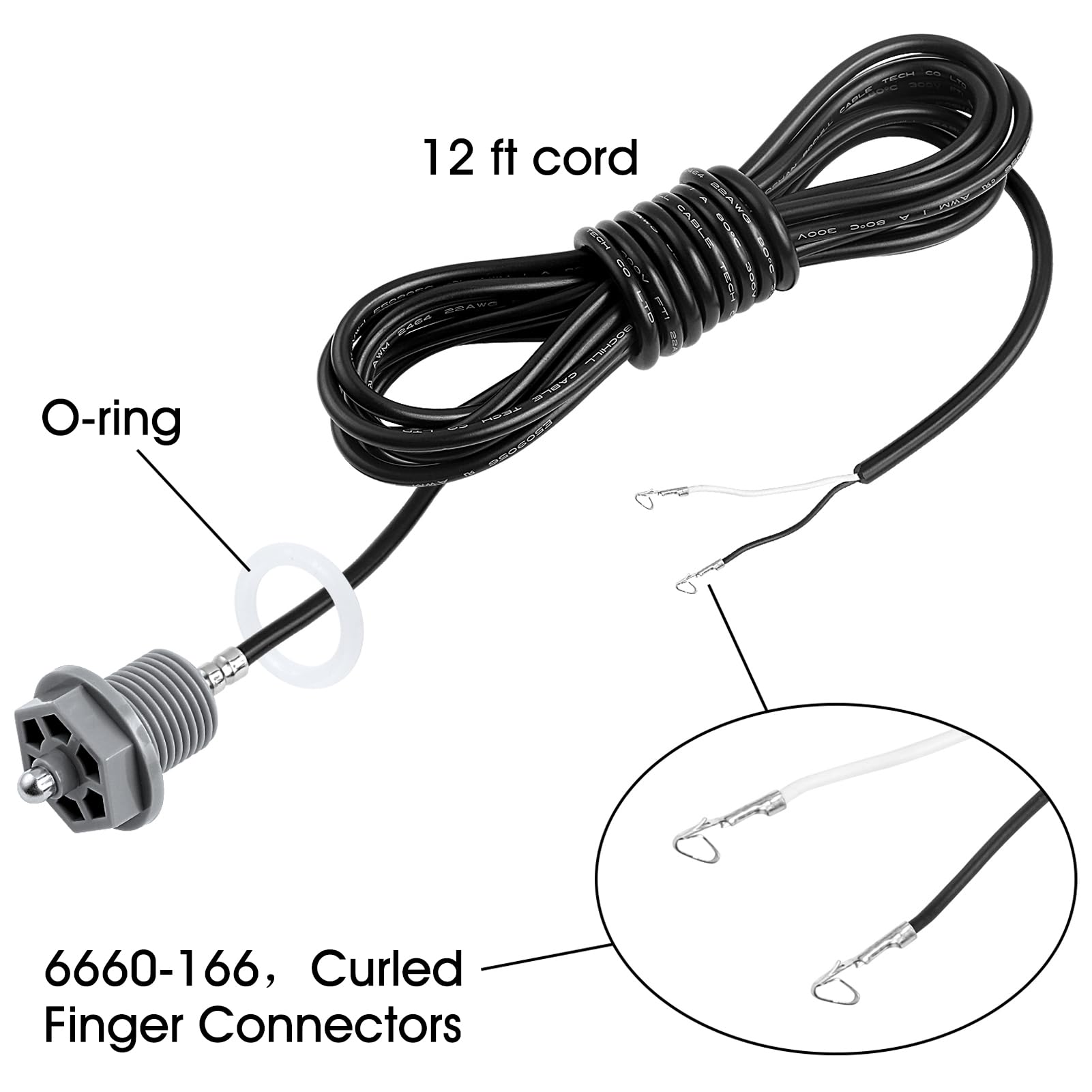

1 x 6600-166 Spa Temperature Sensor with Curled Finger Connectors
1 x 6540-228 Rubber Gasket

Package Dimensions: 6.1 x 4.0 x 1.5 inches

Part Number: 6600-166

model number: 6600-166
